Tyco QRS User Manual

TFP110 0
Page 6 of 16
ITEM QTY DESCRIPTION CH 1-1/2 IN. (DN40) 2 IN. (DN50) 3 IN. (DN80) 4 IN. (DN100) 6 IN. (DN150) 8 IN. (DN200)
1 2 1/4” GAUGE TEST VALVE 460051003 460051003 460051003 460051003 460051003 460051003
2 1 MRA-1 MANUAL RESET ACTUATOR 545001000 545001000 545001000 545001000 545001000 545001000
3 1 MC-2 MANUAL CONTROL STATION 545002000 545002000 545002000 545002000 545002000 545002000
4 1 AD-3 AUTOMATIC DRAIN VALVE 547932004 547932004 547932004 547932004 547932004 547932004
5 1 PRIMING SUPPLY RESTRICTION 545100051 545100051 545100051 545100051 545100051 545100051
6 1 1/4” PRESSURE RELIEF VALVE 923431020 923431020 923431020 923431020 923431020 923431020
7 2 1/2” BALL VALVE 460501004 460501004 460501004 460501004 460501004 460501004
8 1 1/2” GLOBE VALVE 460471005 460471005 460471005 460471005 460471005 460471005
9 1 1/2” SPRING LOADED CHECK VALVE 923221003 923221003 923221003 923221003 923221003 923221003
10 1 1/2” SWING CHECK VALVE 460491007 460491007 460491007 460491007 460491007 460491007
11 1 1/2” Y-STRAINER 523531006 523531006 523531006 523531006 523531006 523531006
12 1 3/4” ANGLE VALVE 460481010 460481010 460481010 460481010 460481010 460481010
13 1 ANGLE VALVE 460481010 460481010 460481011 460481012 460481012 460481012
14 1 DRIP FUNNEL BRACKET CONNECTOR 922111005 922111005 922111005 922111005 922111005 9 221110 0 5
15 1 DRIP FUNNEL BRACKET 922111003 922111003 922111003 922111003 922111003 9 221110 0 3
16 1 DRIP FUNNEL 923431007 923431007 923431007 923431007 923431007 923431007
17 2 COMP. FITTING 90° 1/2” MNPT x 1/2” OD TUBE 1001253-01 1001253-01 1001253-01 1001253-01 1001253-01 1001253-01
18 1 COMP. FITTING 90° 1/2” FNPT x 1/2” OD TUBE 1001420-01 1001420-01 1001420-01 1001420-01 1001420-01 1001420-01
C6
C7
C5
C3
C4
C2
C1
P1
P6
P7
P2
P3
P4
P5
1-1/2" (DN40) AND 2" (DN50)
VALVES ONLY
Q1
Q2
Q3
A5
A4
A5
A6
A1
A7
A2
A8
A10
A9
2
9
17
13
33
55
54
20
12
29
39
14
11
37
27
37
7
24
37
20
49
24
31
35
1
21
25
48
19
38
7
37
27
19
43
5
45
56
16
15
4
29
18
53
50
32
10
30
34
1
36
21
36
36
8
41
36
22
39
26 51
27
28
52
27
42
36
47
17
57
40
58
59
56
31
6
32
23
44
46
3

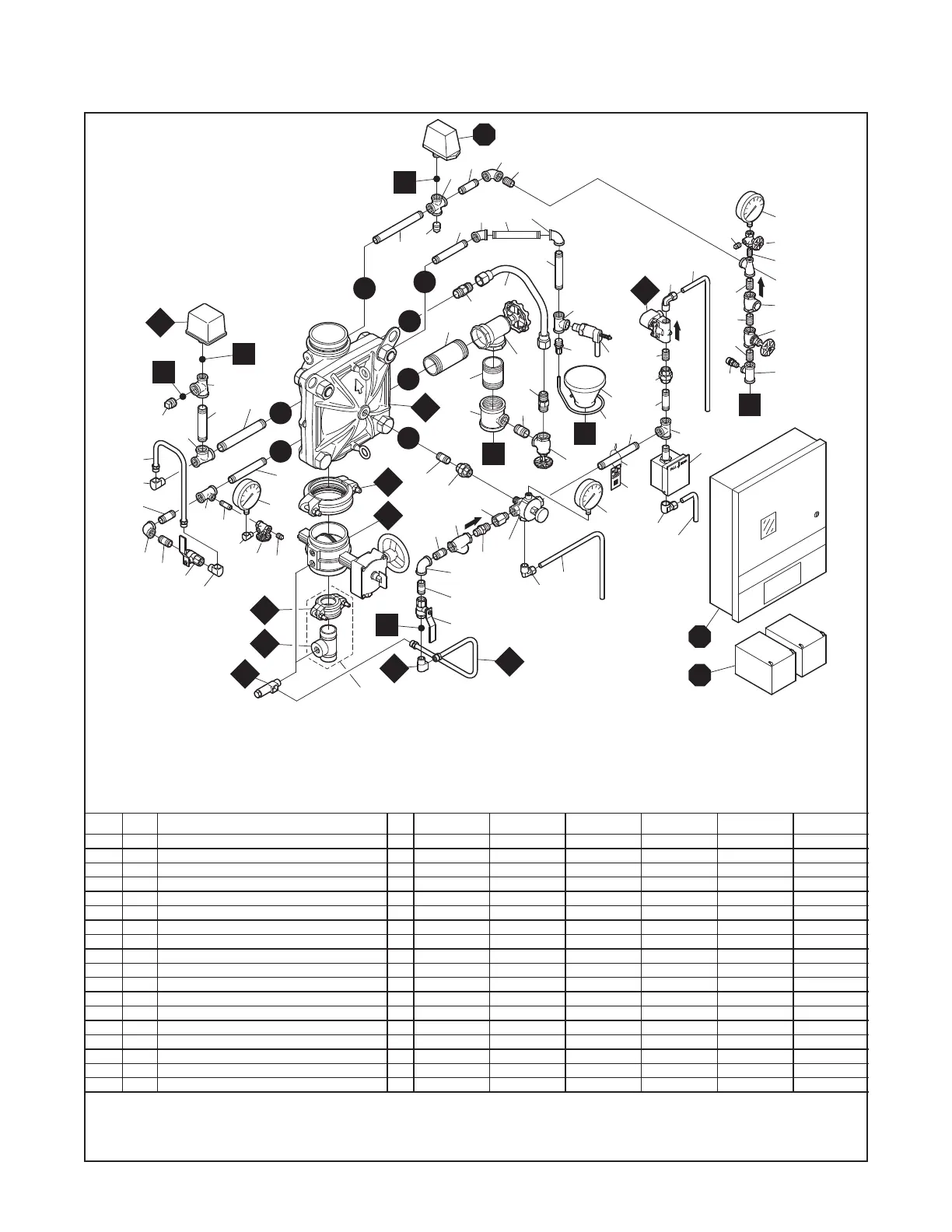

FIGURE 3A (PART 1 OF 2)
DV-5a VALVE - DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACUATION TRIM
WITH MODEL QRS ELECTRONIC ACCELERATOR OPTIONAL COMPONENTS
EXPLODED VIEW
Notes:
• Port Connections P1 through P7 are described in Technical Data Sheet TFP1450, Figure 2.
• External Trim Connections C1 through C8 are described in Figure 3B.
• When ordering the pre-assembled DV-5a Valve with Galvanized Valve Trim or the pre-assembled DV-5a Valve with Galvanized Valve Trim and Buttery Valve, items A1 through
A10 are provided as applicably related to valve size, refer to Technical Data Sheet TFP1450, and item A7 is provided as P/N 52-287-1-124 described in Technical Data Sheet
TFP2180.
• When ordering the DV-5a Trim separately from the DV-5a Valve, items A1 through A10 are separately ordered, as applicably related to valve size. Water Pressure Gauges for the
EMEA valve trim are also separately ordered. Refer to Technical Data Sheet TFP1450.
