EQUIPMENT: T1200-C
PUBLICATION: MARINEC-P-A
ISSUE No. & DATE: 3 02/14
© 2014 Thorn Security Ltd PAGE 15 of 67
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE

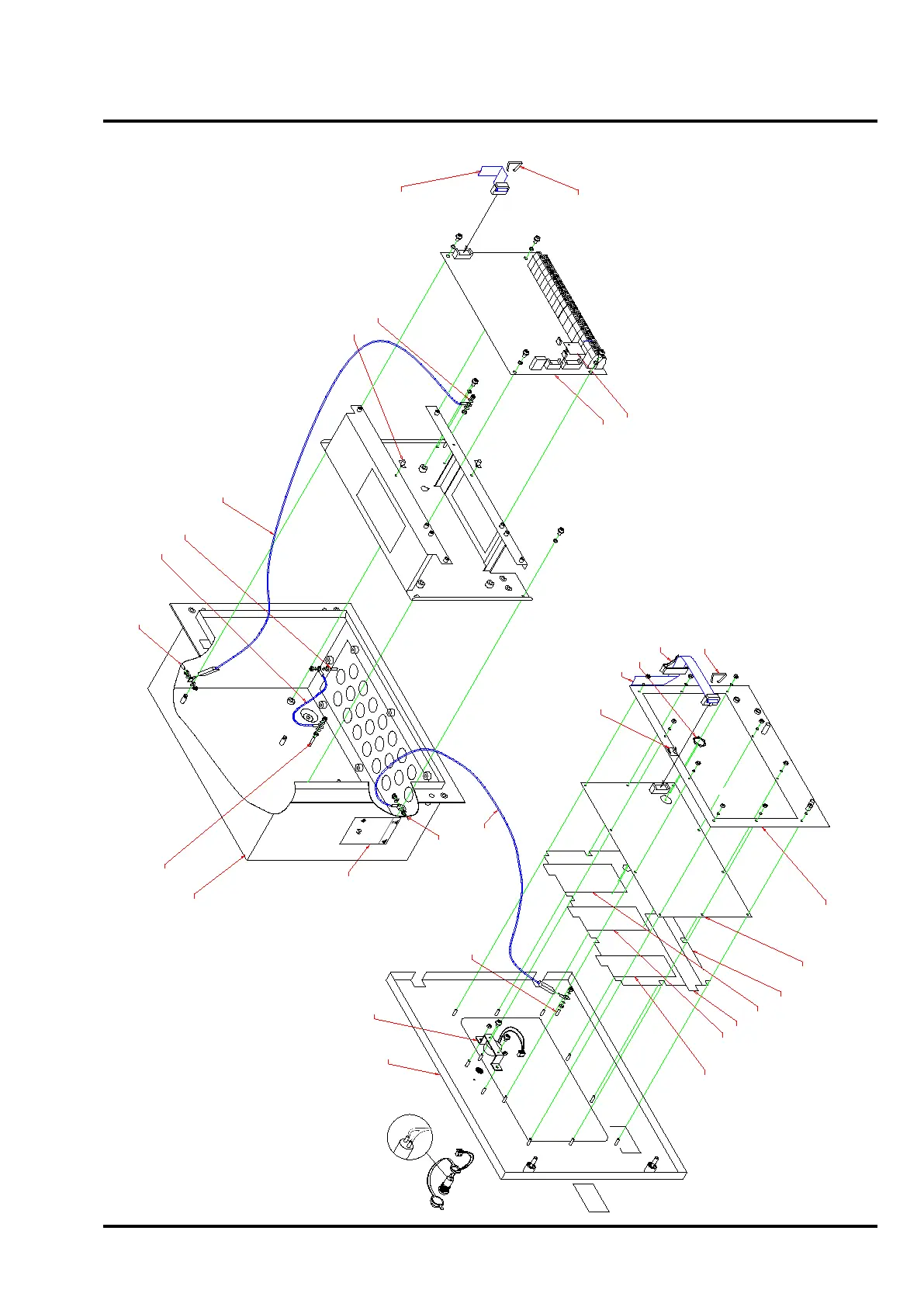

Figure 7 – T1216R-C Repeater – General Assembly
REPEATER SWITCH INSERT
REPEATER LED INSERT
MEMBRANE
REPEATER DISPLAY BOARD (C1628)
EARTH POST
EARTH POST
EARTH POST
P
.C.BOARD SUPPORTS 6mm (2OFF)
REPEATER MOTHERBOARD
(C1626
)
C1631 REPEATER I/
F BOARD
CHASSIS EARTH CABLE
DOOR EARTH CABLE
LOGO
KEYSWITCH
BUZZER MOUNTING BRACKET
Fuse
:
Input:
Serial No:
Part No:
Product:
Standards:
Approval:
0086/14
Fire Alarm System
Isolate Supply Before
0086-CPR-607216
Opening Cover
THIS UNIT MUST
BE EARTHED
RATING LABEL
ZONE LOCATION INSERT
INSTRUCTION INSERT
ENCLOSURE
GLAND EARTH CABLE
EARTH POST
EARTH POST
Thorn Security Ltd
Made in Great Britian
EARTH POST
RIBBON CABLE TO DISPLAY.
20
WAY RETAINING CLIP
KEYSWITCH MOUNTING NUT
20 WAY RETAINING CLIP
RIBBON CABLE CLAMPS - 4 OFF
RIBBON CABLE TO MOTHERBOARD
CABLE CLIP
DOOR
DISPLAY SUPPORT PLATE
