Tyco T1232-C - User Controls

T1200
MARINEC-P-A
3 02/14
PAGE 42 of 67

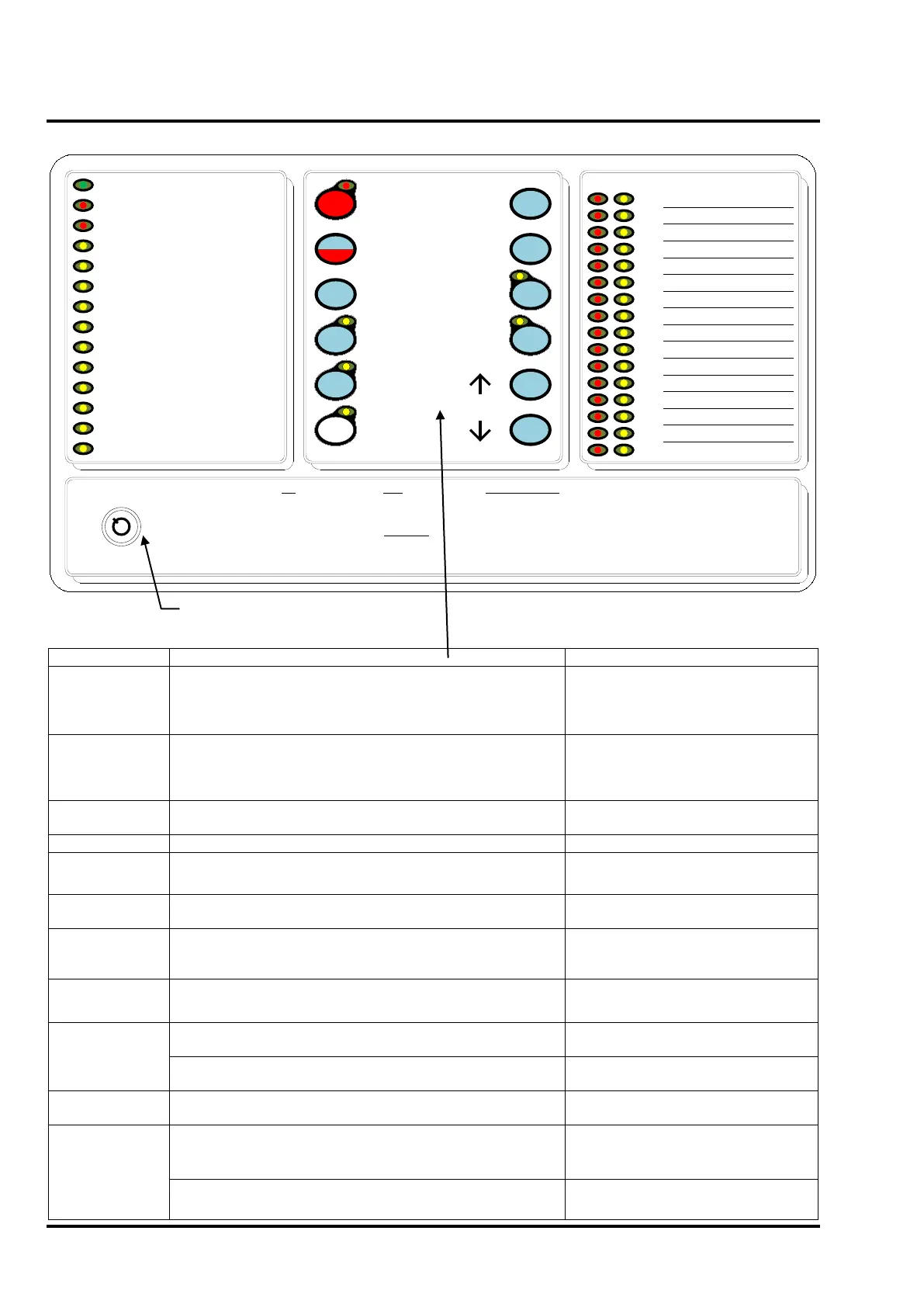

16.2 User Controls
1
.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
0 1
FIRE
POWER SUPPLY ON
POWER SUPPLY FAULT
SYSTEM FAULT
GENERAL FAULT
EARTH FAULT
FUSE FAILED
REPEATER FAULT
FAULT OUTPUT FAULT/DISABLED
SOUNDER FAULT/DISABLED
SOUNDER TEST
FIRE PROTECTION FAULT/DISABLED
FIRE OUTPUT ACTIVE
FIRE OUTPUT FAULT/DISABLED
BUZZER
SILENCE
RESET
ENABLE
DISABLE
TEST
TEST DISPLAY
ALARMS
RESOUND
SELECT
ON/OFF
SELECT
SILENCE/
ALARM
MUSTER
FIRE
1. THE RED ZONE INDICATOR
WILL PULSE SHOWING THE
LOCATION OF THE FIRE.
2. CARRY OUT THE
REQUIRED FIRE DRILL.
3. TO SILENCE ALARMS
PRESS SILENCE ALARMS.
4. TO RESET FROM THE FIRE
CONDITION PRESS RESET.
FAULT
1. DETERMINE THE CAUSE OF
THE FAULT.
2. PRESS SILENCE BUZZER.
3. CALL YOUR SERVICE
ENGINEER.
SYSTEM FAULT
THE PANEL IS INOPERATIVE.
ARRANGE FOR ALTERNATIVE
FIRE DETECTION MEASURES.
DISABLEMENT AND TEST
1. PRESS SELECT ON/OFF.
THE LED WILL ILLUMINATE.
2. SELECT THE ZONE OR
OUTPUT USING
 AND

. THE
FAULT LED WILL PULSE.
3. PRESS DISABLE OR TEST.
4. TO RE-ENABLE, SELECT
THE ZONE OR OUTPUT AND
PRESS ENABLE.
OVERRIDE
DELAY
Button
Functionality
Button Availability
Manual Fire Alarm
or Muster
[Configurable
option]
Manual Fire Alarm: Operates all sounders continuously and
lights the Manual Fire Alarm LED adjacent to the button until
the silence button is operated .
Muster: Operate all sounders in the Muster mode.
When controls are unlocked.
[May be disabled if external muster
system is used]
Silence/Resound
Alarms
Following a fire alarm condition, 1st operation stops sounders.
The General Fire LED and the Zonal F
ire LED will change from
flashing to steady. 2nd operation restarts the silenced
sounders.
When controls are unlocked.
Reset Resets any standing fire and/or fault conditions.
When controls are unlocked and panel
has fire and/or fault conditions.
Silence Buzzer
Press to stop the buzzer sounding in fire or fault conditions.
When controls are locked or unlocked.
Delay Override
Overrides the delay when delay is running, turning the delay
off. All delayed outputs will operate immediately.
When the panel is in the fire condition
and the delay is running.
Select On/Off
Enables the User select feature for selection of zones or
outputs via Select ↑ Select ↓ for disablement/re-enablement.
When controls are unlocked
Test Display
Press to illuminate all LEDs on the display and operate the
buzzer. All indications remain active for approx 5 seconds after
button press.
When controls are locked or unlocked.
Enable
Press to clear the disablement or test condition on a zone or
output selected via the User Select feature.
When the flashing cursor is on a zone
or output fault LED.
Disable
Press to disable a zone or output selected via the User Select
feature. LED is lit whilst any disablement is active.
When the flashing cursor is on a zone
or output fault LED.
Press to view delay configuration of sounders, Fire and Fire
Protection outputs.
When controls are unlocked.
Test
Press to enable One Man Test on sounders or zones as
selected via the flashing cursor. LED will illuminate.
When the flashing cursor is on a zone
or sounder fault LED.
Select ↑ Select ↓
Scrolls the flashing cursor through the zone and output fault
LEDs on the display to select a circuit for disablement, or test.
[LED illuminated when Select Mode is active]
When controls are unlocked and the
Select button has been operated.
Used to adjust the brightness of the display LEDs. [Press Test
Display and ↑ to increase, Test Display and ↓ to decrease]
When controls are unlocked.
Access Controls Keyswitch:
0 – Controls Locked
1 – Controls Unlocked
