16. Overview Of User Functions
This section gives an overview of the functions available to the end user.

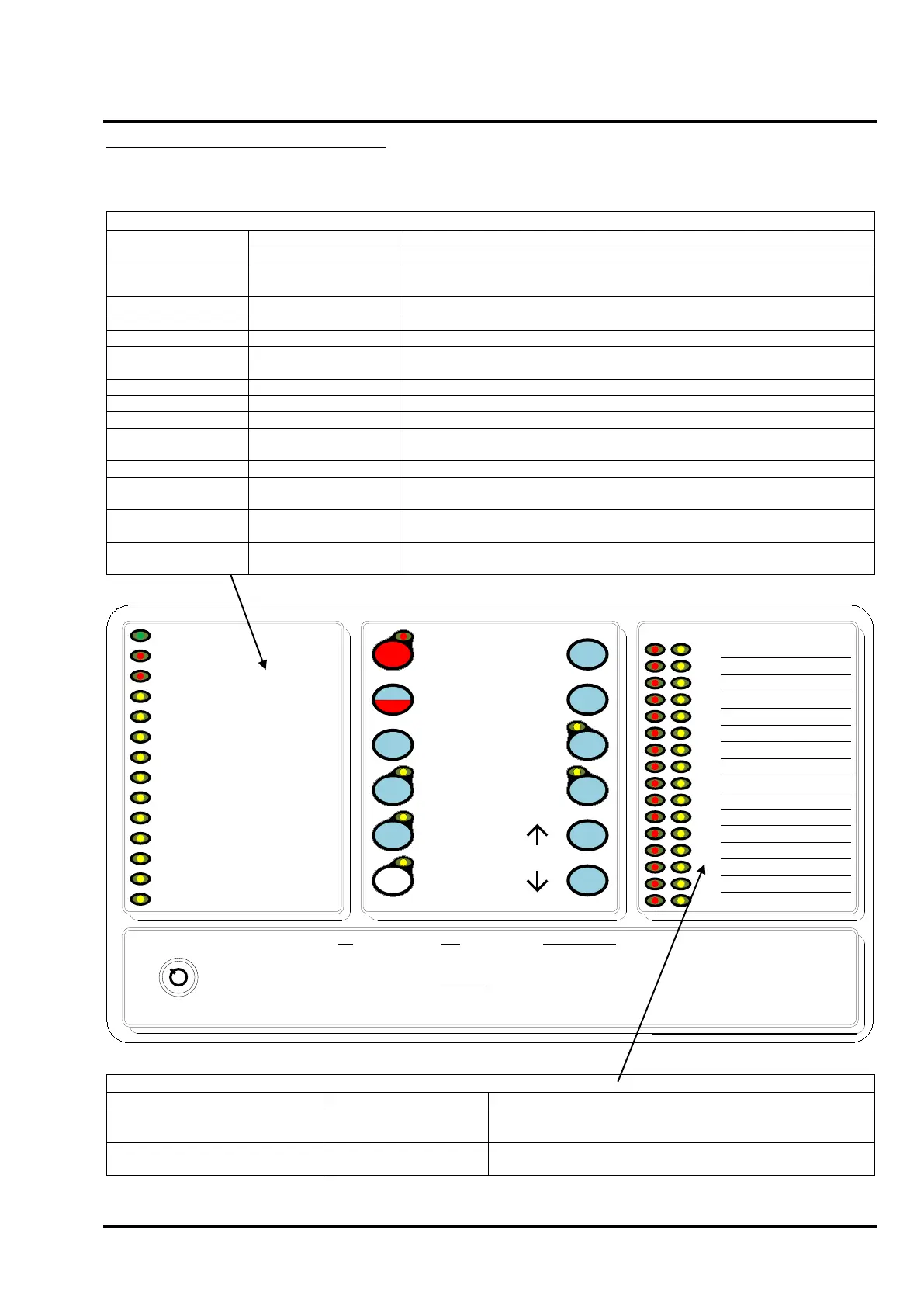

16.1 User Indications
General Indicator Section
Indicator
Indication Colour
Operating Condition
Power Supply On
Green
Illuminates Steady for Mains or Standby power On.
Fire Red
Flashes on any new fire alarm condition, changing to a steady indication
on operation of Silence Alarms.
Fire Output Active
Red
Illuminates Steady when the Fire Output is active.
General Fault
Yellow
Flashes for any fault condition.
Power Supply Fault
Yellow
Flashes for mains or standby power supply/charge fault.
System Fault Yellow
Illuminates Steady to indicate Microcontroller or Memory Failure.
Flashes to indicate Engineer’s Configuration Mode active.
Earth Fault
Yellow
Flashes for any positive or negative power supply earth fault.
Fuse Failed
Yellow
Flashes for any auxiliary supply fuse failure.
Repeater Fault
Yellow
Flashes for any Repeater fault or repeater communication fault.
Sounder
Fault/Disabled
Yellow Flashes for any sounder fault. Steady for sounders disabled.
Sounder Test
Yellow
Illuminates Steady while sounder walk test is active.
Fire Protection
Fault/Disabled
Yellow
Flashes for a fault on the Fire Protection Output. Steady when Fire
Protection Output is disabled.
Fire Output
Fault/Disabled
Yellow
Flashes for a fault on the Fire Output. Steady when Fire Output is
disabled.
Fault Output
Fault/Disabled
Yellow
Flashes for a fault on the Fault Output. Steady when Fault Output is
disabled.
1.
2.
3.
4
.
5.
6.
7.
8.
9
.
10.
11.
12
.
13.
14.
15.
16.
0 1
FIRE
POWER SUPPLY ON
POWER SUPPLY FAULT
SYSTEM FAULT
GENERAL FAULT
EARTH FAULT
FUSE FAILED
REPEATER FAULT
FAULT OUTPUT FAULT/DISABLED
SOUNDER FAULT/
DISABLED
SOUNDER TEST
FIRE PROTECTION FAULT/DISABLED
FIRE OUTPUT ACTIVE
FIRE OUTPUT FAULT
/DISABLED
BUZZER
SILENCE
RESET
ENABLE
DISABLE
TEST
TEST DISPLAY
ALARMS
RESOUND
SELECT
ON/
OFF
SELECT
SILENCE/
ALARM
MUSTER
FIRE
1.
THE RED ZONE INDICATOR
WILL PULSE SHOWING THE
LOCATION OF THE FIRE.
2. CARRY OUT THE
REQUIRED FIRE DRILL.
3.
TO SILENCE ALARMS
PRESS SILENCE ALARMS.
4.
TO RESET FROM THE FIRE
CONDITION PRESS RESET
.
FAULT
1.
DETERMINE THE CAUSE OF
THE FAULT.
2. PRESS SILENCE BUZZER
.
3.
CALL YOUR SERVICE
ENGINEER.
SYSTEM FAULT
THE PANEL IS INOPERATIVE
.
ARRANGE FOR ALTERNATIVE
FIRE DETECTION MEASURES.
DISABLEMENT AND TEST
1.
PRESS SELECT ON/OFF
.
THE LED WILL ILLUMINATE.
2. SELECT THE ZONE OR
OUTPUT USING 
AND

. THE
FAULT LED WILL PULSE
.
3. PRESS DISABLE OR TEST.
4. TO RE-ENABLE
, SELECT
THE ZONE OR OUTPUT AND
PRESS ENABLE.
OVERRIDE
DELAY
Zone Location Indications
Indicator
Indication Colour
Operating Condition
User Generated Zone Location
Text
Red
Flashes when zone is in a fire condition, turning to steady
on operation of Silence Alarms.
User Generated Zone Location
Text
Yellow
Flashes when zone is in a fault condition. Illuminates
steady when zone is disabled or in test.
