10
6(/),163(&7,212)7+(,167$//$7,21
To check the installation:
1. Turn power on at the Circuit reaker ox.
2. Check that the control panel lights up.
3. Start the heater (see User uide).
4. Check that all three tubular elements start to heat up (go
red).
lease keep these instructions.
In the event of problems, please contact the retailer where you purchased
the euipment.
 This publication many not be reproduced, in part or in whole, without
the written permission of Tyl. Tyl reserves the right to make changes to
materials, construction and design.
1234Pin:
Pos 1.
NTC
Pin 1:
Pin 2: NTC
Pin 3: NTC
Pin 4:
Pos 2.
Ext sw
Pin 1:
Pin 2: LED
Pin 3: SW
Pin 4: 12 V
Pos 6-9.
4x RS485
Pin 1: A
Pin 2: B
Pin 3: 12 V
Pin 4: GND
Pos 3.
Door sw
Pin 1:
Pin 2: LED
Pin 3: SW
Pin 4: 12 V
Pos 4.
Bim/NTC
Pin 1: Bim
Pin 2: NTC
Pin 3: NTC
Pin 4: Bim
Pos 5.
Addon (option)
1234Pin:
10
11
12
6789
34 5
'HVFULSWLRQRIFDEOLQJPRGXODUFRQWDFWV

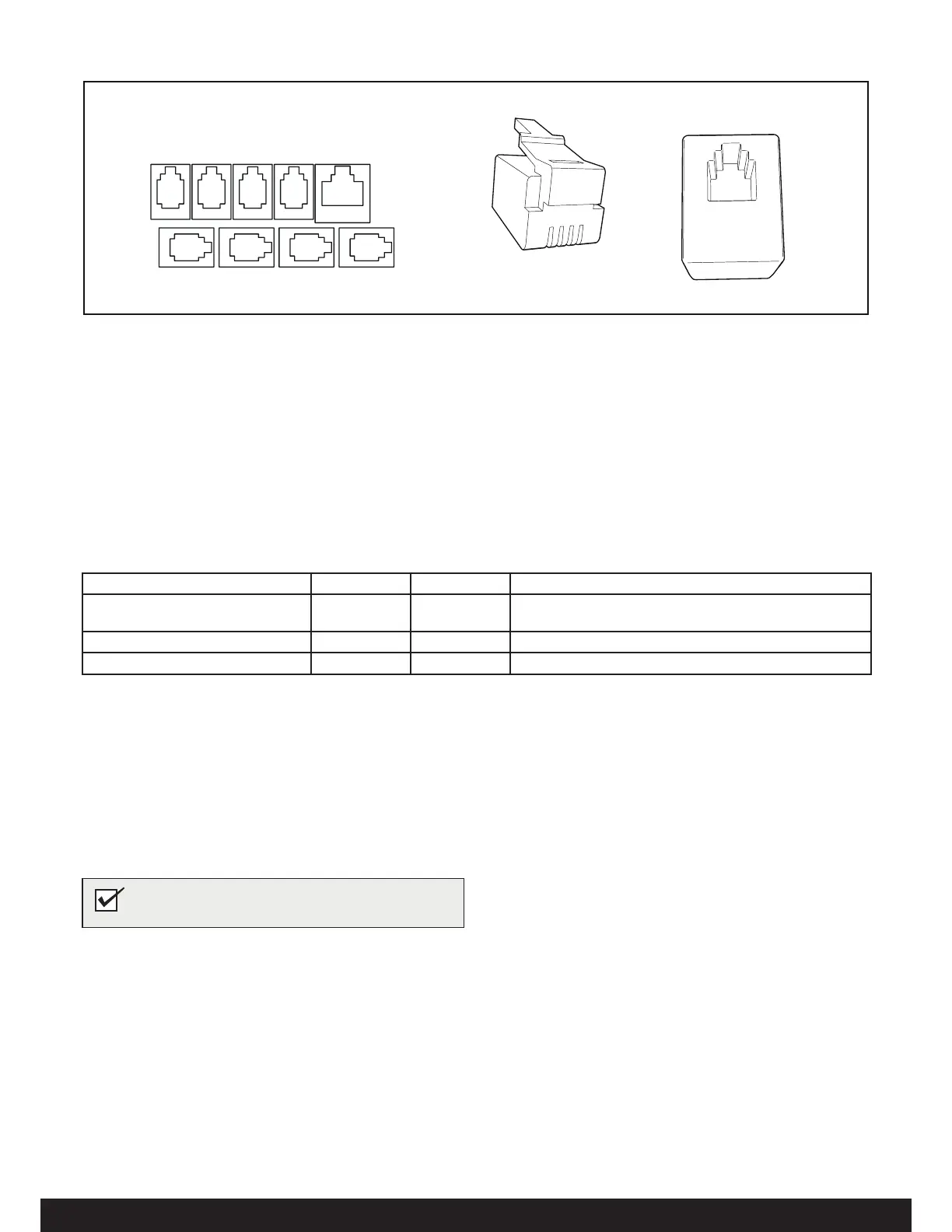

Figure 21: Modular contacts, description (Pos 1-4 and 6-9: RJ10, Pos 5: RJ45)
2. Ext switch (External switch Optional)
3. N/A
4. N/A
5. N/A
6. Sensor (humidity- and temperature) - Combi Elite.
7. N/A
. N/A
9. Controls panels (Elite).
10. Modular plug (10)11. Modular contact (10)
NOTE! Crimp pliers are needed if changing modular
cabling, e.g. shortening wires.
