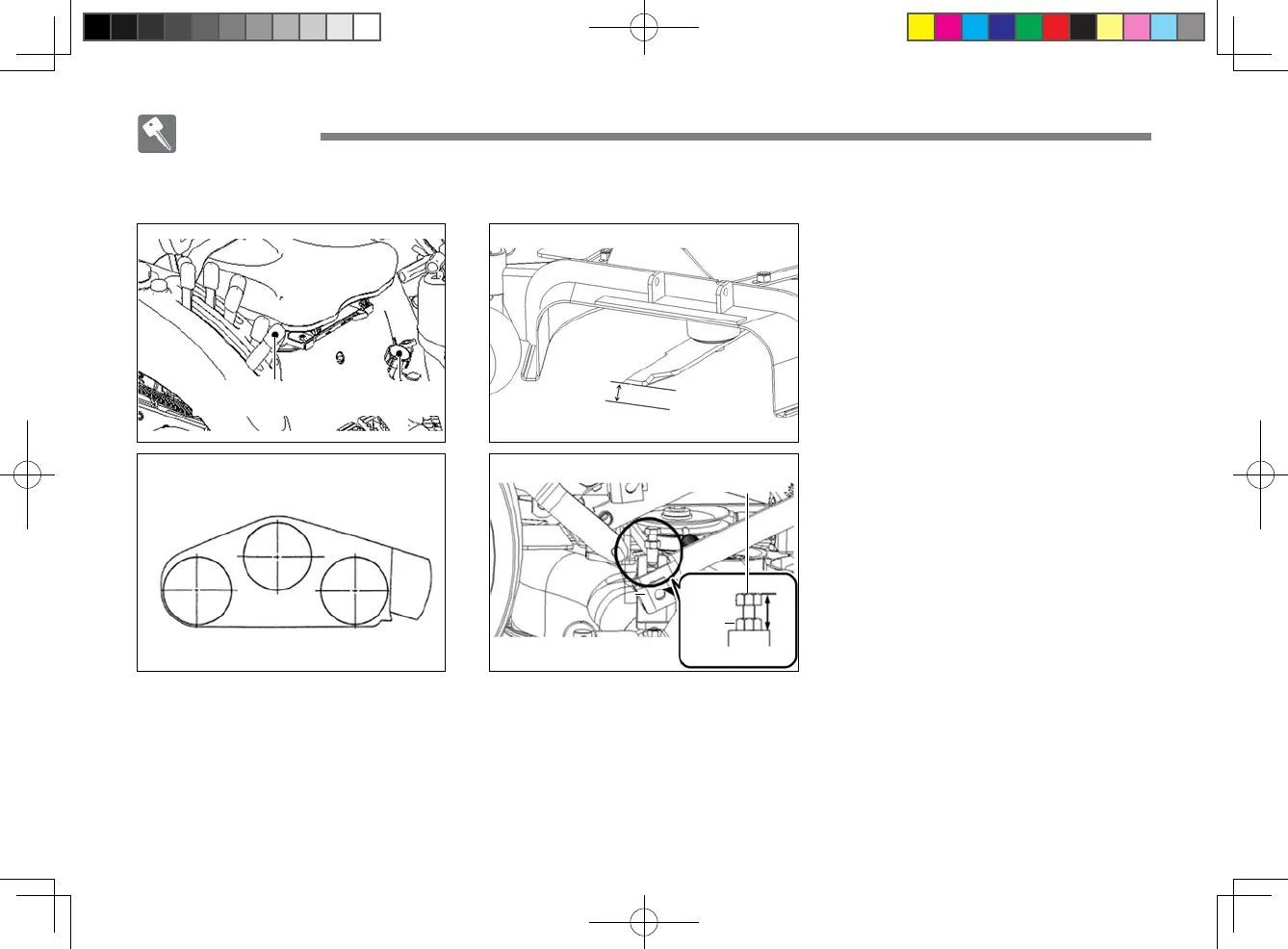

TK0320A
L R
L : Left Blade Measurement Position
R : Right Blade Measurement Position
TK0321A
A
A : Blade Height
TK0317A
Cutting Height
Control Dial
Hydraulic
Control Lever
TK0322A
H : 22±2mm
H
Lock
Nut
Cutting Height
Fine Turning Bolt
ADJUSTING LEFT AND RIGHT
CUTTING HEIGHT
1. Tire pressure must be correct.
2. Operate the hydraulic control le-
ver rearward to raise the mower
deck to the highest position.
3. Stop the engine and remove the
key.
4. Turn the cutting height control dial
to the desired height.
5. Set the anti-scalp roller’s height
to keep clearance between rollers
and ground from 6 to 13mm (0.2
to 0.5 in.).
6. Lower the mower deck by moving
the hydraulic control lever for-
ward.
7. Turn left blade by hand parallel to
Ride on Mower axle and turn right
blade parallel to axle to measure
from the outside blade tip at L
and R to the level surface.
►
To Next Page
