TYM T954 - Implements

D
OPERATION
D
9
4. IMPLEMENTS

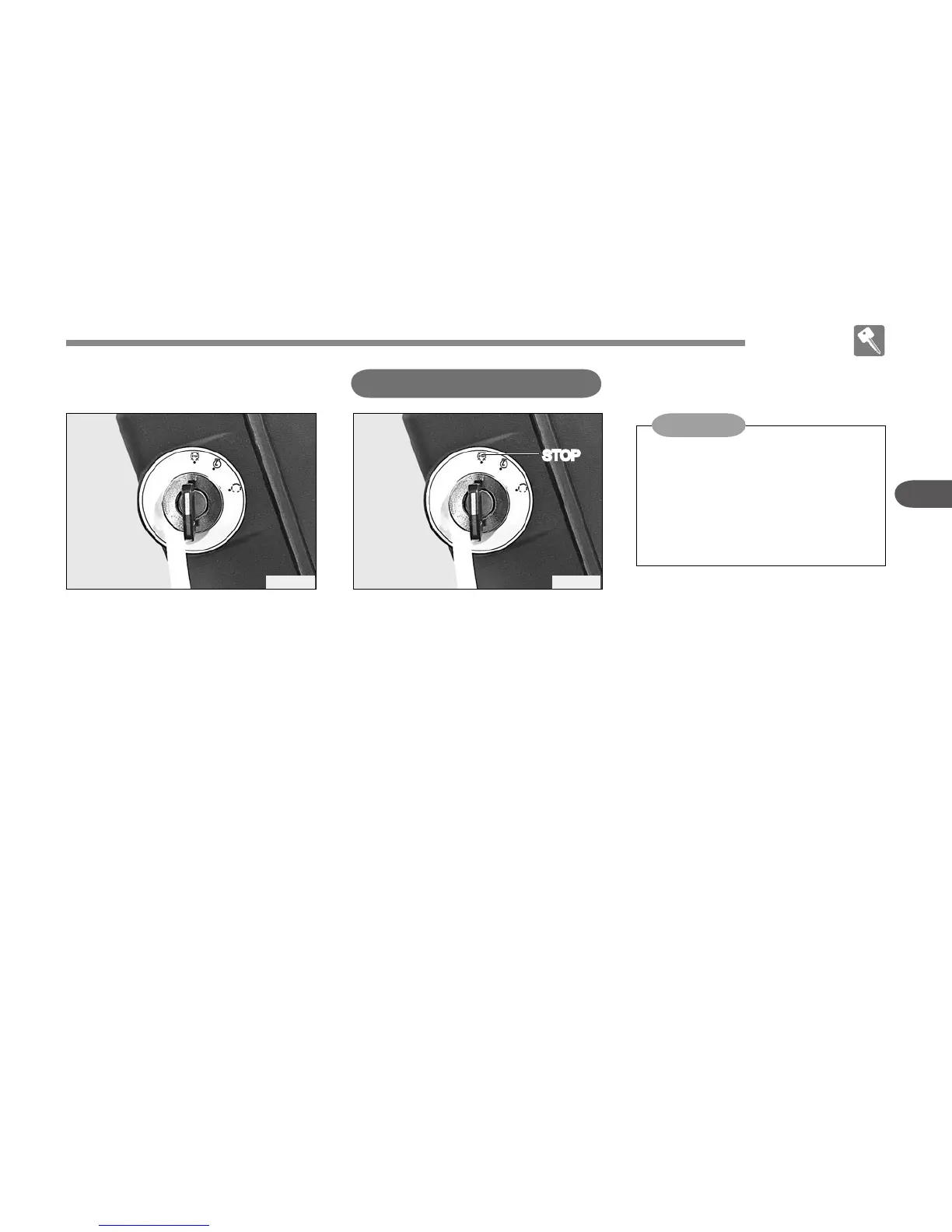

1. Make sure to stop the engine before
connecting the implements.
2. Move the double acting valve lever
forward and backward for 4 to 5
times to release pressure in the
hydraulic line of tractor. Otherwise,
it is hard to connect the couplers,
and hydraulic fluid can be sprayed
from the line and get in to your eyes
while connecting them.
3. Remove any foreign material
around male and female couplers.
If foreign material enters the
hydraulic components, it can lead
to malfunction of the system.
4. Open dust-proof cover of female
coupler of the tractor and insert the
male coupler of the implement.
A clicking sound is heard when the
couplers are engaged.
5. Pull the hydraulic hose of the
implement to check that the
couplers are properly connected.
※ Hydraulic control valves may not
exist depending on tractor model.
▶ CONNECTION TO IMPLEMENTS
1. Make sure to stop the engine before
disconnecting it.
2. Release any residual pressure in the
hydraulic hoses of the implement
and tractor by operating the double
acting valve lever 4 to 5 times.
3. Remove any foreign material
around the couplers.
4. Keep the implement balanced by
removing any load applied
(lowering it onto the ground, for
example).
If disconnecting the hose while
outer load is applied to the
implement, it is hard to connect the
implement in the future.
5. Remove the male coupler by
pushing the female coupler boss of
the tractor backward.
6. Close the dust-proof cover of the
female coupler of the tractor.
Wrap the male coupler of the
implement with a plastic bag to
prevent contamination.
If the PTO is used, remove the safety
cover off the PTO shaft.
Adjust the yoke rod on the lower links to
suit the implement in use.
Attach the left lower link, then attach
the right lower link using the adjusting
handle on the leveling box if required.
Attach the top link.
Attach PTO shaft to the tractor if used,
making sure that it is locked in place.
Adjust the check chains to suit the
implement and tighten the locknuts.
▶ DISCONNECTION FROM
IMPLEMENTS
▶ MOUNTING IMPLEMENTS
 Never connect or disconnect the
implement hydraulic hose while the
pressure in it is not released or the
engine is running.
It’s hard to connect and disconnect the
hose and hydraulic fluid can be sprayed
from the hose, and get into your eyes or
skin.
 stop engine and wear protective glasses
and gloves before work.
WARNING
