TYM T954 - Page 138

E
MAINTENANCE
16

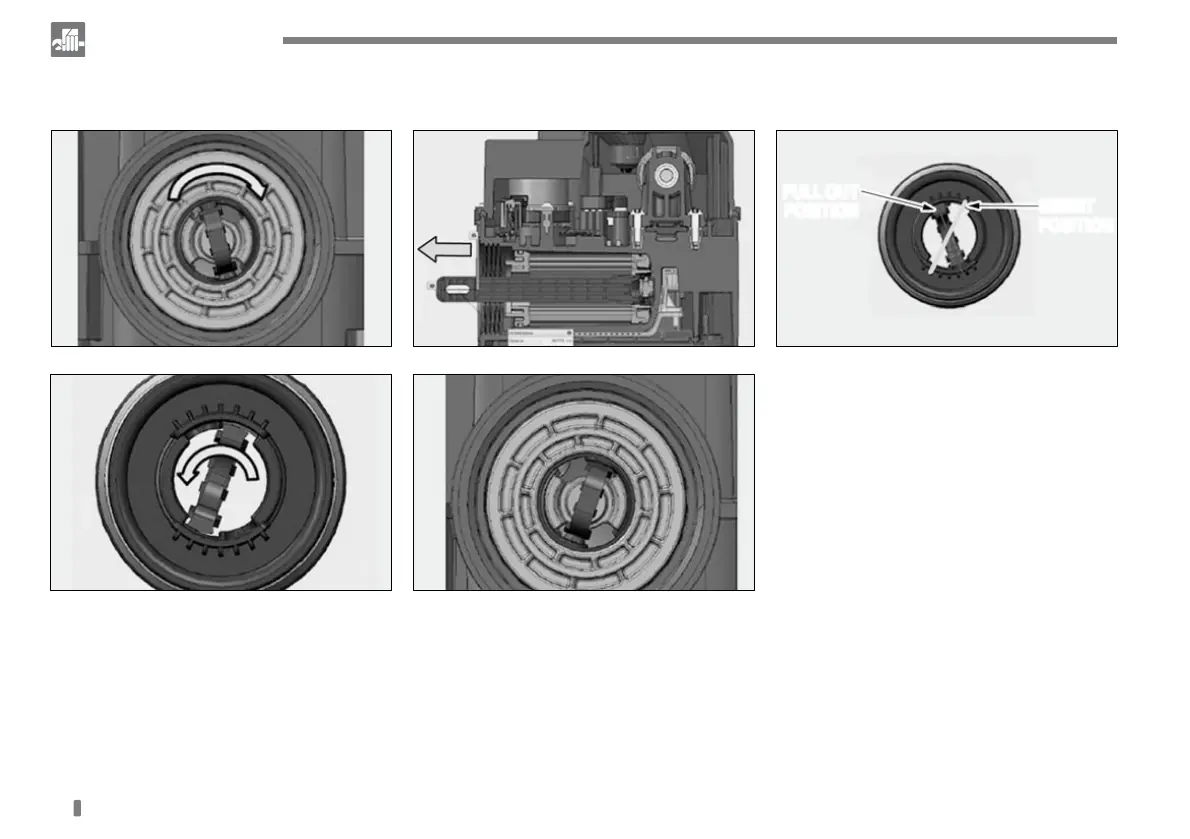

4. Then rotate in clockwise direction
as shown in front view.
5. When no further rotation possible
(after ca. 45°), then pull out the filter.
• Distance of the tool from SM when in
pull out position : ca.27mm. (1.06
inch)
PULL OUT
POSITION
INSERT
POSITION
