C
TRACTOR INSTRUMENTS
26

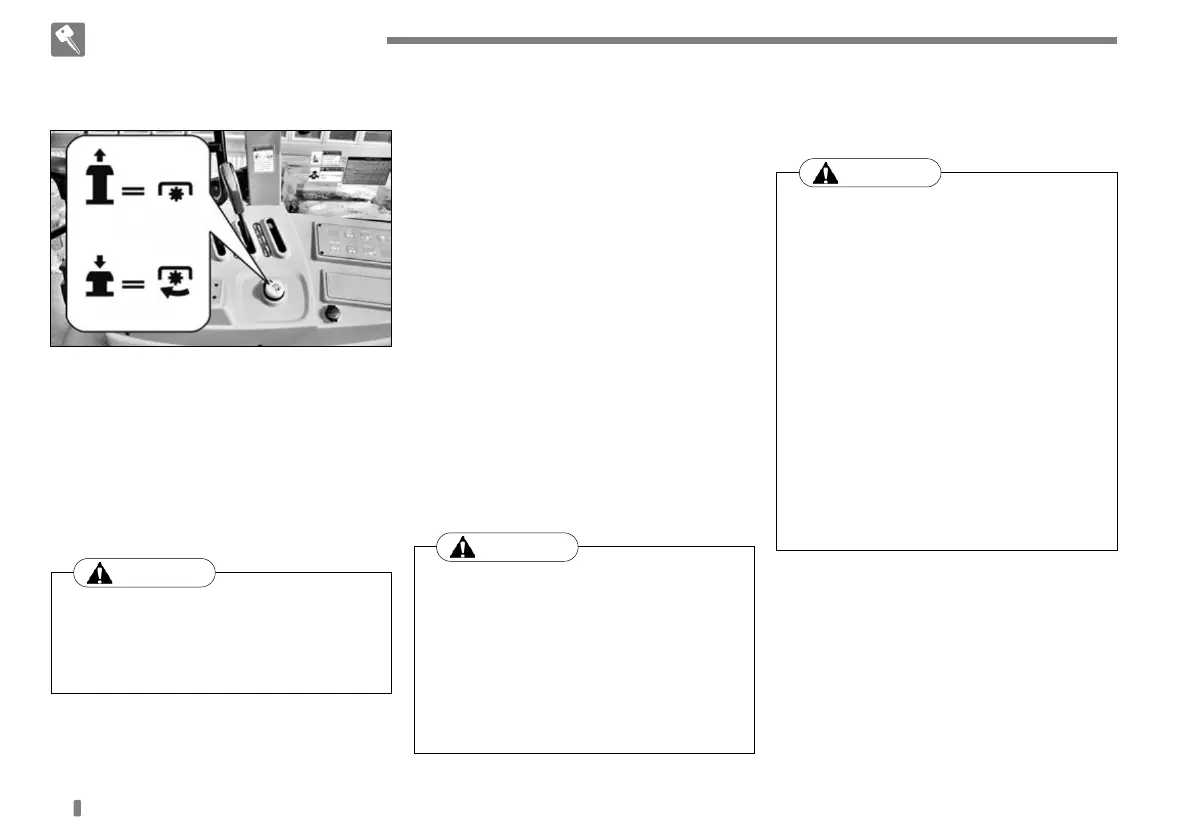

This is the PTO ON/OFF switch.
To use the independent PTO, pull up the
knob.
• PTO activation - Turning it clockwise
with pressing.
• PTO deactivation - Pressing or
turning it counter-clockwise.
▶ PTO BUTTON
< Overview >
The electronically controlled lift system
can provide various functions through
simple switch operations, unlike the
mechanical type, to enhance the
driver's convenience and efficiency. This
system has the following three control
modes and each mode can be selected
and mixed with their corresponding
control knobs for optimum working
condition.
- Position control
- Draft control
- Floating function
▶ ELECTRONIC LIFT SYSTEM CONTROL PANEL
Keep the button pushed in when the
PTO is not in use in order to prevent an
accident by the suddenly rotating PTO
shaft.
WARNING
Before operating the control unit, make
sure that the knobs are adjusted to the
desired positions.
Never stop and leave the tractor with an
implement lifted.
The control unit is equipped with self-
diagnosis function which triggers the
alarm for any found fault in the system.
WARNING
To prevent damage to electronic
components, keep the following
instructions when arc welding the
tractor equipped with the electronic lift
or an attached implement.
- Separate an implement or part to be
welded from the tractor if possible.
- Disconnect the two battery cables.
- Set the welding machine's ground
clamp as close as possible to the point
to be welded.
- Remove the control unit first if the
welding spot is within 1m from the unit.
- Make sure that the cable is not close to
or over any electric or electronic lead
while welding.
CAUTION
PTO ON
PTO OFF
