typical TW1-1245 - Winding Bobbin Thread; Adjusting Bobbin Thread Tension; Needle Threading and Tension Adjustment

4
5cm
1
5
1
2
3
1
3
4
2
6
5

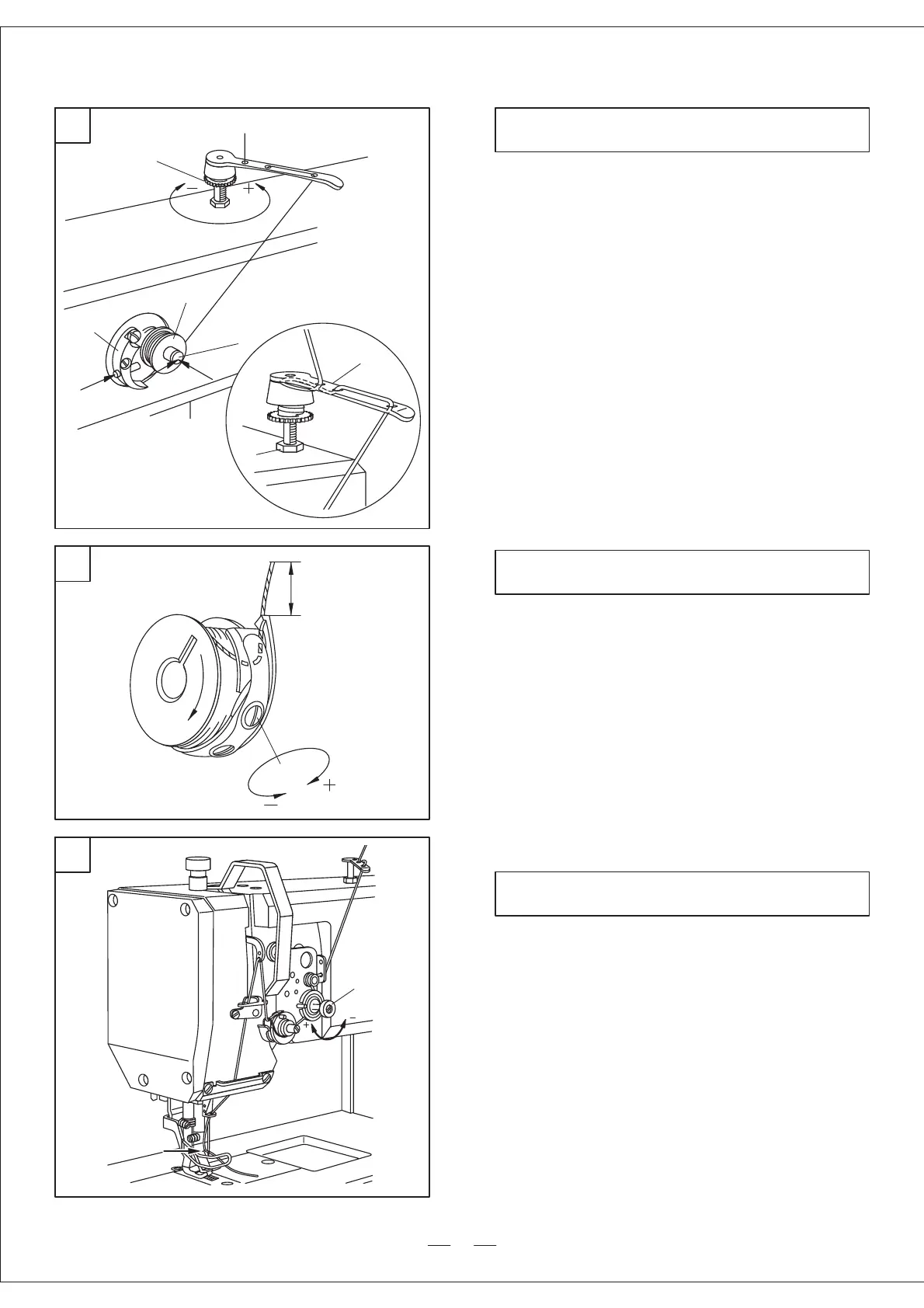

5. Winding bobbin thread(Fig.3)5. Winding bobbin thread(Fig.3)
1. Put the bobbin into the bobbin shaft 2;
2. As Fig 3 shows, draw out the thread and winding
clockwise to the bobbin several times;
3. Before winding, press down the winding shaft 2
and the hook gib 3;
4. Adjusting the bobbin 1 thread tension by the
screw 4;
5. When he bobbin is full, the bobbin winder will
automatically stop.
If the winding is abnormal, loosen the screw 5,
and as required, move the thread guide 6, then
tighten the screw 5.
1. Put the bobbin into the bobbin shaft 2;
2. As
Fig 3 shows, draw out the thread and winding
clockwise
to the bobbin several times;
3.
Before winding, press down the winding shaft 2
and
the hook gib 3;
4. Adjusting
the bobbin 1 thread tension by the
screw
4;
5. When
he bobbin is full, the bobbin winder will
automatically
stop.
If
the winding is abnormal, loosen the screw 5,
and
as required, move the thread guide 6, then
tighten
the screw 5.
6. Adjusting the bobbin thread tension(Fig.4)6. Adjusting the bobbin thread tension(Fig.4)
1. As Fig.4 shows, draw out the bobbin thread;
When the bobbin thread is drawn out, the
bobbin should run as the arrow goes.
2. Adjusting the bobbin thread tension by the
screw 1.
※
1. As Fig.4 shows, draw out the bobbin thread;
When
the bobbin thread is drawn out, the
bobbin
should run as the arrow goes.
2. Adjusting
the bobbin thread tension by the
screw
1.
※
7. Threading the needle thread/adjusting the tension of needle thread(Fig.5)7. Threading the needle thread/adjusting the tension of needle thread(Fig.5)
1. Threading as the Fig 5 shows.
Pass the thread to the eye of needle from the
left side(Fig.arrow)
2. Adjusting the needle thread tension by the
screw 1
※
1. Threading as the Fig 5 shows.
Pass
the thread to the eye of needle from the
left
side(Fig.arrow)
2. Adjusting
the needle thread tension by the
screw
1
※
