typical TW1-1245 - Lubricating the Hook Mechanism; Lubricating the Machine Head; Lubricating Upper Feed Eccentric

8
9
1
2
3
1
2
10
4

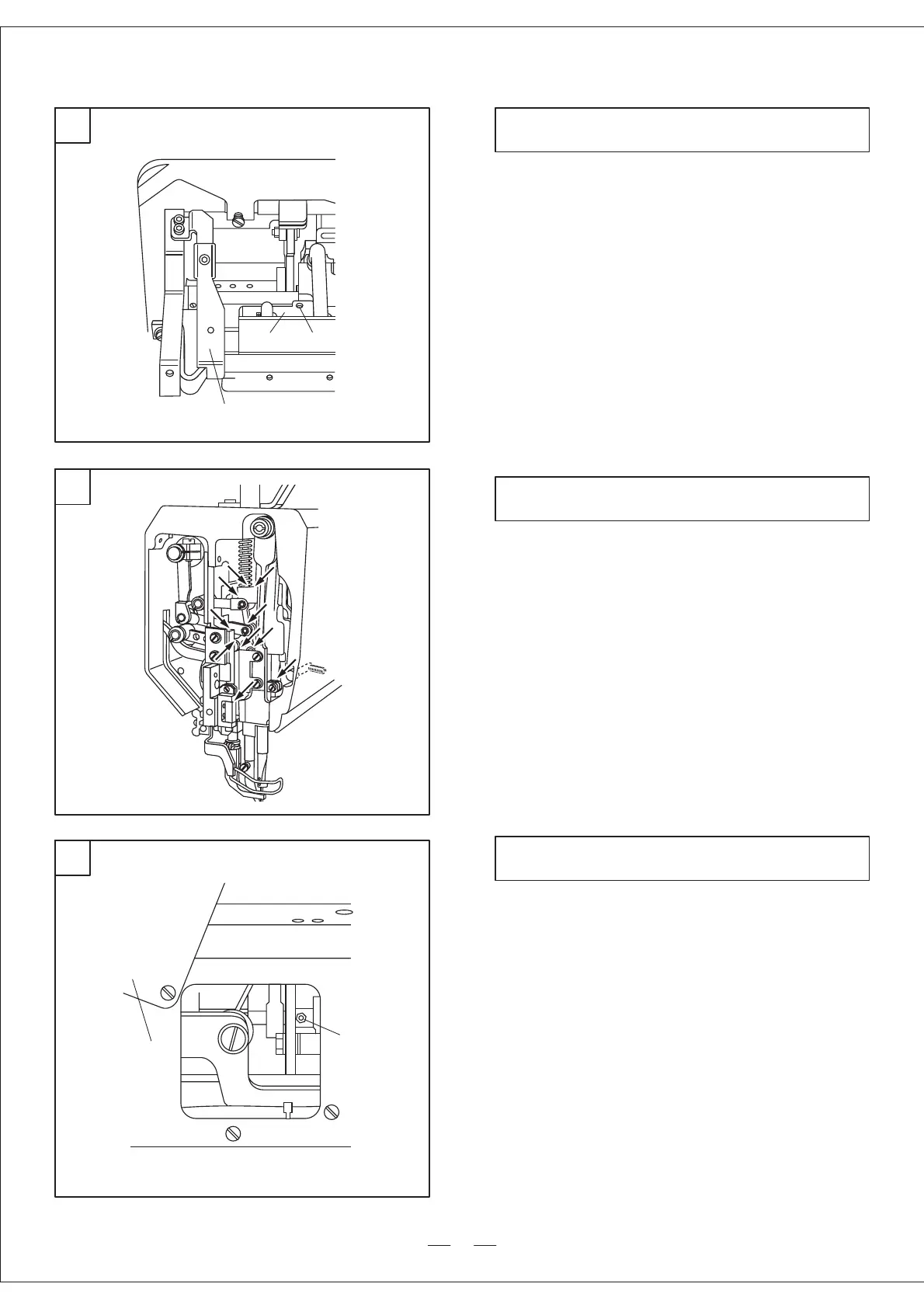

10. Lubricating the hook(Fig.8)10. Lubricating the hook(Fig.8)
1. Pull out the knee lever, then lay down the
machine head;
2. Fill the oil into box 1 through the hole 2 until
the oil level exceeds the highest level mark;
3. Raise the machine.
1. Pull out the knee lever, then lay down the
machine
head;
2.
Fill the oil into box 1 through the hole 2 until
the
oil level exceeds the highest level mark;
3.
Raise the machine.
11. Lubricating the machine head (Fig.9)11. Lubricating the machine head (Fig.9)
1. Open the face plate;
2. Oil twice a week at all the moving position as
the Fig shows;
3. Close the face plate.
1. Open the face plate;
2.
Oil twice a week at all the moving position as
the
Fig shows;
3.
Close the face plate.
12. Lubricating the upper feed driving eccentric(Fig.10)12. Lubricating the upper feed driving eccentric(Fig.10)
1. Open the rear cover 1;
2. Oil the interface (2) at least twice a year;
(apply to oil gun)
3. Close the rear cover.
1. Open the rear cover 1;
2.
Oil the interface (2) at least twice a year;
(apply
to oil gun)
3.
Close the rear cover.
