TYT TH-7800 User Manual

15

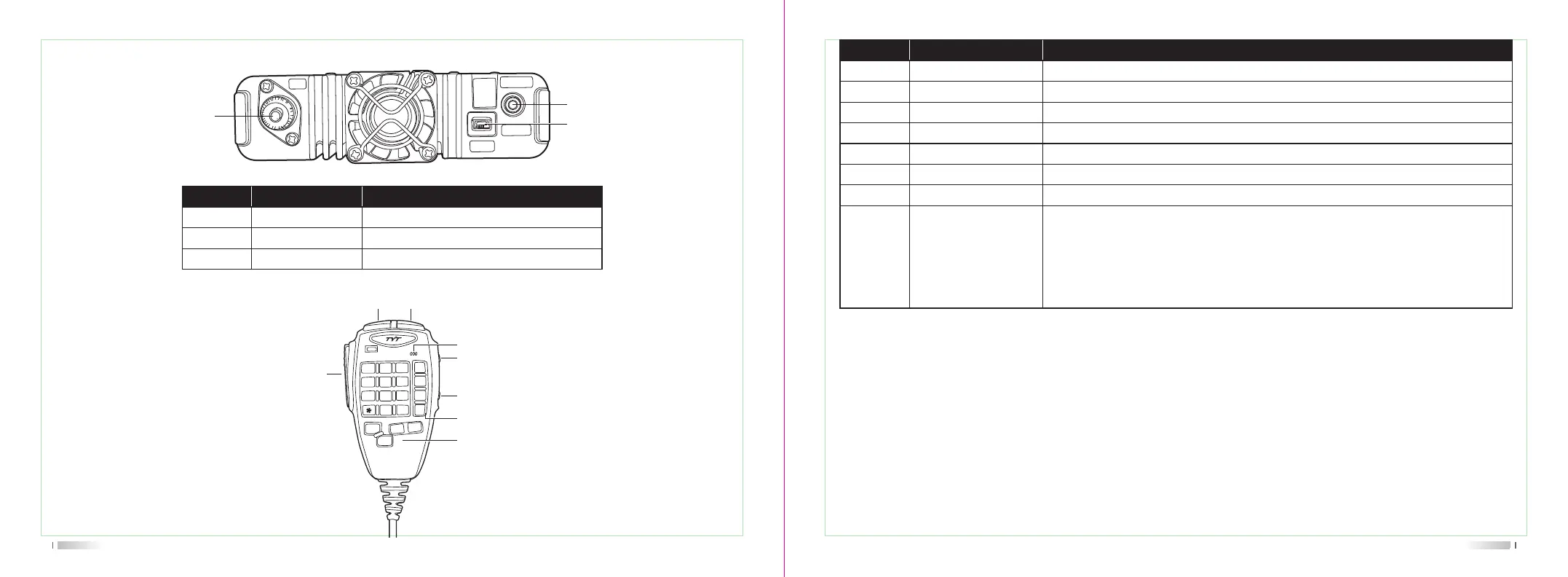

Rear Panel
Microphone
MIC
1
2
3
4
5 6
7
8
9
0
#
A
B
C
D
P
1
P
2
P
3
P
4
2 3
1
8
7
6
5
4
1
2
3
Port FUNCTIONNO.
Connection for 50* antenna.
Terminal for optional external speaker.
PC programming data port.
ANT
EXT SP
DATA
1
2
3
16
1
2
3
4
5
6
7
Port FUNCTIONNO.
PTT
DWN
UP
MIC
LOCK
LAMP
Number Key
Press the key to transmit.
Decrease channel number or setting value.
Increase channel number or setting value.
Speak here during transmission.
Locks out the microphone buttons except key 0 - 9 and PTT.
Illuminates the microphone keypad.
Input channel number or DTMF dial out etc.
User-defined functions Keys. Default:
P1: switch the "Main" band between the left and right display.
P2: switch the frequency control for the "Main" band between VFO and Memory mode.
P3: press repeatedly to select the CTCSS or DCS mode on the "Main" band.
P4: press repeatedly to select TX power output level on the "Main" band.
Programmable Keys8

TYT TH-7800 Specifications

General

Operating Voltage	13.8V DC ±15%
Modes	FM
Display	LCD
Weight	1.2 kg
Channel Spacing	12.5/25 kHz
Squelch	Carrier/CTCSS/DCS
Channel Steps	5/10/12.5/15/20/25/50 kHz
