TYT TH-7800 User Manual

Transceiver
03

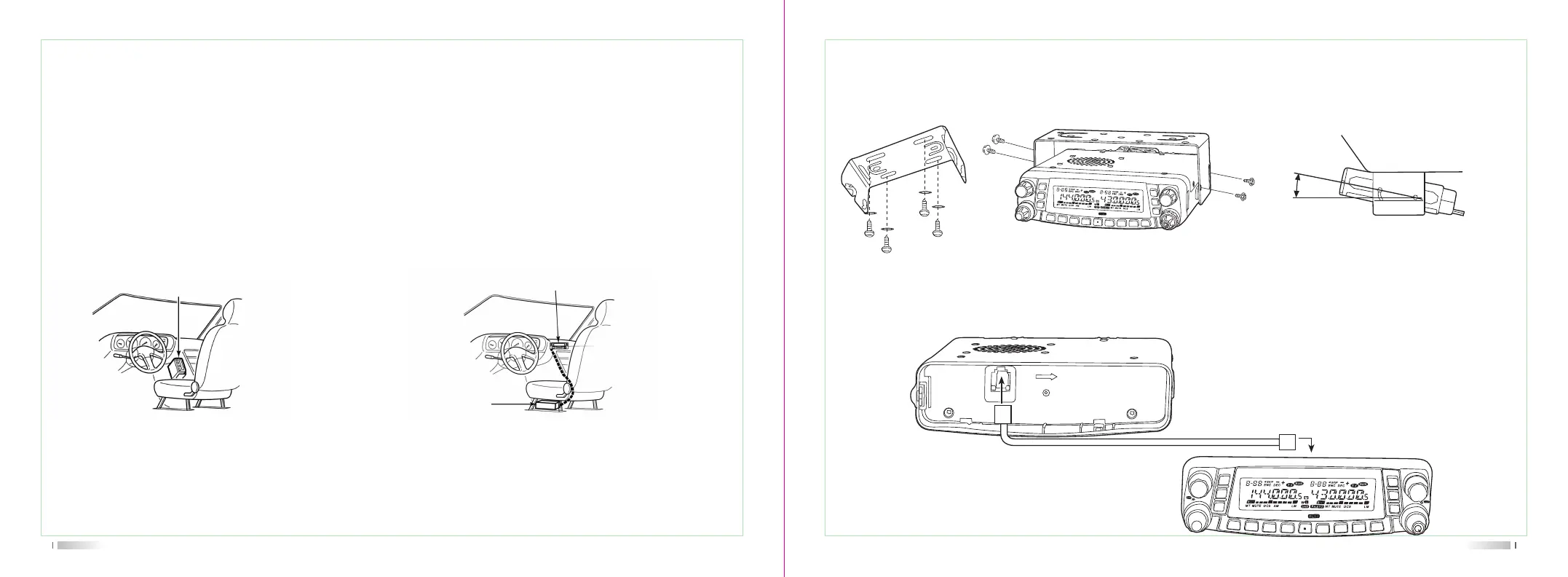

Initial Installation
Mobile Installation
To install the transceiver select a safe and convenient location inside your vehicle that minimizes danger to your passen-
gers and yourself while the vehicle is in motion. Consider installing the unit at an appropriate position so that knees or legs
will not strike it during sudden braking of your vehicle. Try to pick a well ventilated location that is shielded from direct su-
nlight.
Installation methods
1 – Single Body Installation
The supplied mounting bracket can be used
for the main unit installation.
Front panel
Main body
2 – Remote Control Installation
The supplied remote controller mounting bracket
and separation cable can be used for installation.
Separation cable connection
A separation cable (4.5m; 14.8 ft) is supplied with the TH-7800.
Connect the controller and the main unit using with the separation cable as follows.
Main unit
04
Mounting bracket installation
1. Drill 4 holes where the mounting bracket is to be installed.
2. Insert the supplied screws, nuts and washers through the mounting bracket and tighten.
3. Adjust the angle for your suitable position.
Controller
B
A
LOW
V/M
C
HM
SCN
LOW
V/M
SCN
HM
D
E
F
SQL
VOL
RPT
TONE
SUB
MHz
SQL
VOL
25
*
B
A
LOW
V/M
C
HM
SCN
LOW
V/M
SCN
HM
D
E
F
MHz
RPT
TONE
SUB

TYT TH-7800 Specifications

General

Operating Voltage	13.8V DC ±15%
Modes	FM
Display	LCD
Weight	1.2 kg
Channel Spacing	12.5/25 kHz
Squelch	Carrier/CTCSS/DCS
Channel Steps	5/10/12.5/15/20/25/50 kHz
