u-blox NORA-W10 Series User Manual

NORA-W10 series - System integration manual
UBX-22005601 - R04 Handling and soldering Page 34 of 56
C1-Public
5.3 Reflow soldering process
NORA-W10 series modules are surface mount modules supplied on a FR4-type PCB with gold plated
connection pads and are produced in a lead-free process with a lead-free soldering paste. The
thickness of solder resist between the host PCB top side and the bottom side of the NORA-W10 series
module must be considered for the soldering process.
The module is compatible with industrial reflow profile for RoHS solders. Use of "No Clean" soldering
paste is strongly recommended.
The reflow profile used is dependent on the thermal mass of the entire populated PCB, heat transfer
efficiency of the oven, and particular type of solder paste used. The optimal soldering profile used has
to be trimmed for each case depending on the specific process and PCB layout.
⚠ The target values given in Table 8 and Figure 12 are given as general guidelines for a Pb-free
process only. For further information, see also the JEDEC J-STD-020E standard [8].
Process parameter
Unit
Value
Pre-heat
Ramp up rate to T
SMIN
K/s
3
T
SMIN
°C
150
T
SMAX
°C
200
t
S
(from +25 °C)
s
150
t
S
(Pre-heat)
s
60 to 120
Peak
T
L
°C
217
t
L
(time above T
L
)
s
40 to 60
T
P
(absolute max)
°C
245
Cooling
Ramp-down from T
L
K/s
4
Allowed soldering cycles
-
2
Table 8: Recommended reflow profile

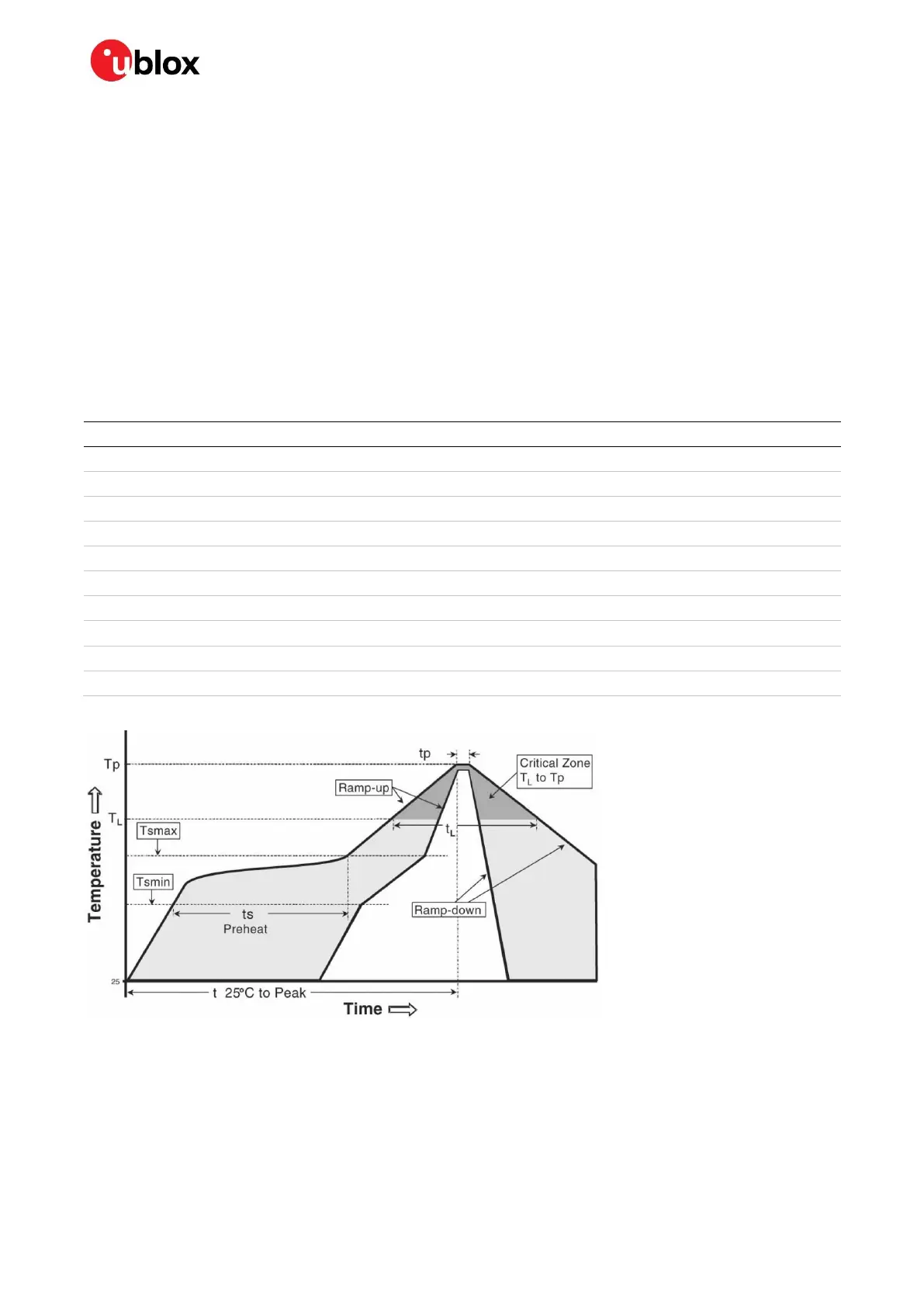

Figure 12: Reflow profile
Lower value of T
P
and slower ramp down rate (2–3 °C/sec) is preferred.
