u-blox NORA-W10 Series User Manual

NORA-W10 series - System integration manual
UBX-22005601 - R04 Pre-approved antennas list Page 47 of 56
C1-Public
7 Pre-approved antennas list
This chapter provides s an overview of the different antennas that can be used together with the
modules.
⚠ This radio transmitter IC: 8595A-NORAW1W2 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
⚠ Cet émetteur radio IC: 8595A-NORAW1W2 été approuvé par Innovation, Sciences et
Développement économique Canada pour fonctionner avec les types d’antenne énumérés ci-
dessous avec le gain maximum autorisé et l’impédance ecessaire pour chaque type d’antenne
indiqué. Les types d’antenne ne figurant pas dans cette liste et ayant un gain supérieur au gain
maximum indiqué pour ce type-là sont strictement interdits d’utilisation avec cet appareil.
☞ Note that not all antennas are approved for use in all markets/regions.

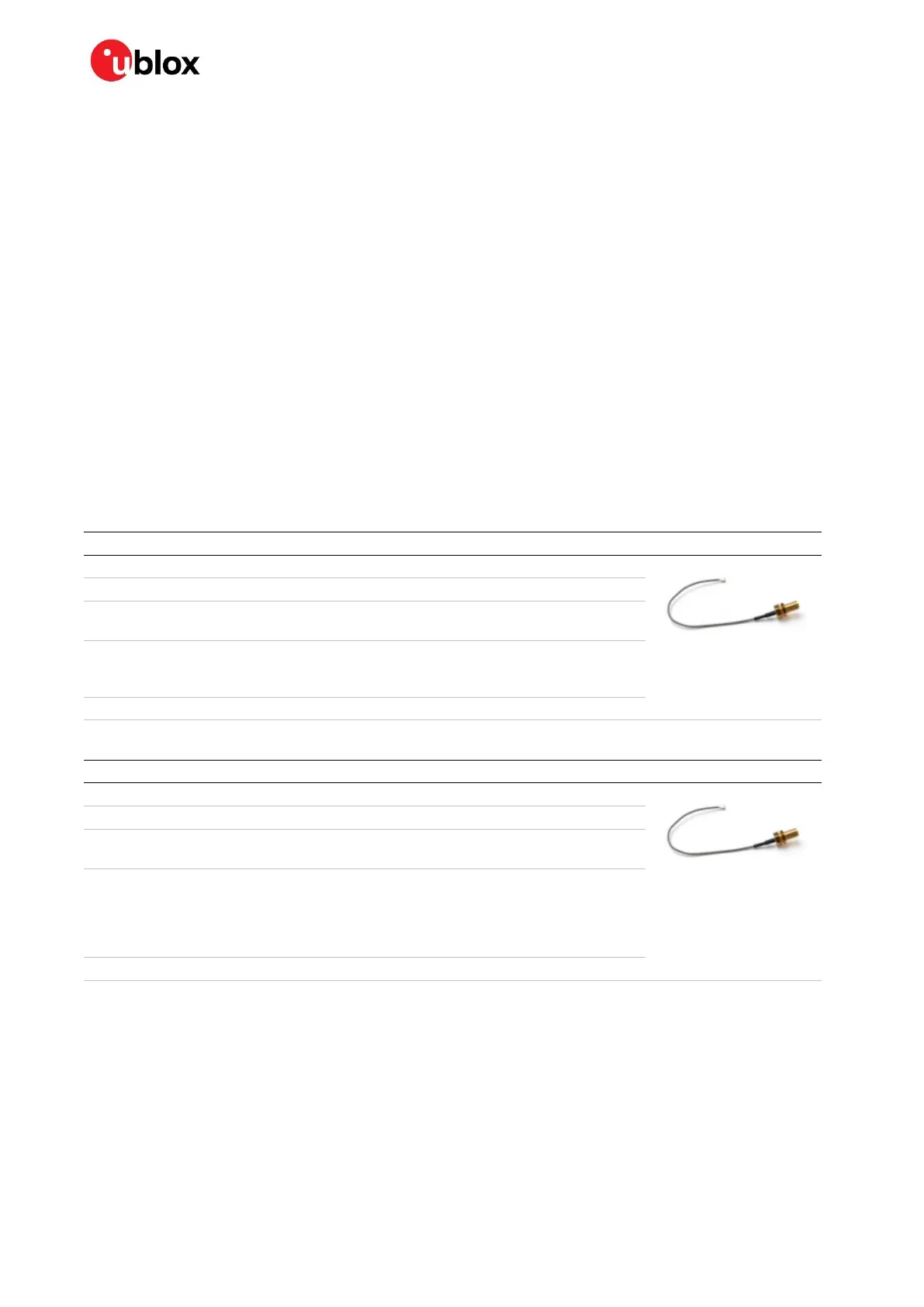

7.1 Antenna accessories
Name
U.FL to SMA adapter cable
Connector
U.FL and SMA jack (outer thread and pin receptacle)
Impedance
50 Ω
Minimum cable loss
0.5 dB, The cable loss must be above the minimum cable loss to
meet the regulatory requirements. Minimum cable length 100 mm.
Comment
The SMA connector can be mounted in a panel. See NORA-W10
Series system integration manual [2] for information how to
integrate the U.FL connector.
Approval
RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
Name
U.FL to Reverse Polarity SMA adapter cable
Connector
U.FL and Reverse Polarity SMA jack (outer thread and pin)
Impedance
50 Ω
Minimum cable loss
0.5 dB. The cable loss must be above the minimum cable loss to
meet the regulatory requirements. Minimum cable length 100 mm.
Comment
The Reverse Polarity SMA connector can be mounted in a panel. See
NORA-W10 Series system integration manual [2] for information
about how to integrate the U.FL connector. This reference design
must be followed to comply with the NORA-W10 FCC/IC modular
approvals.
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
