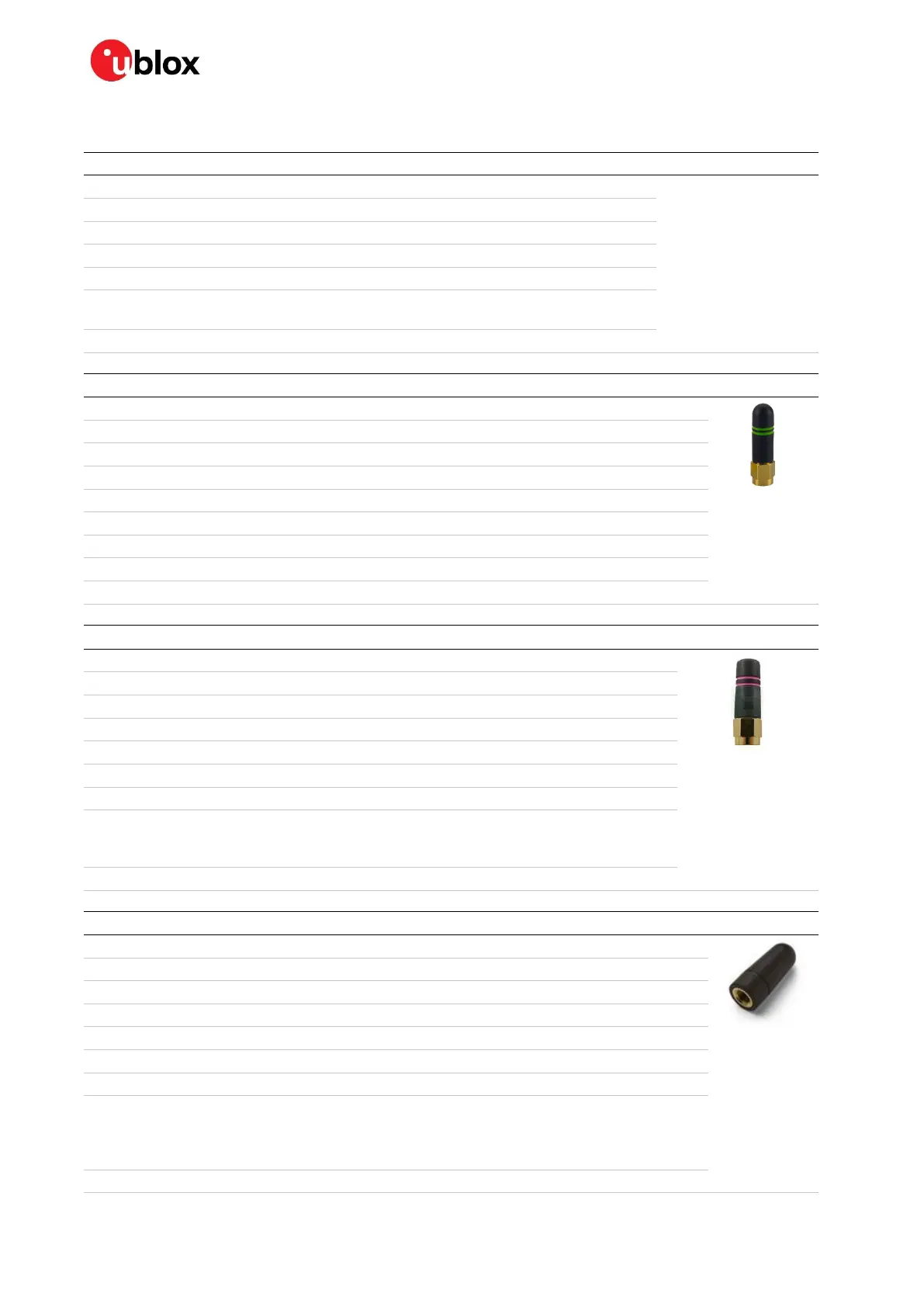

7.2 Single band antennas
NORA-W106 internal antenna
Manufacturer
Abracon
Gain
+3 dBi
Impedance
N/A
Size (HxWxL)
1.1 x 3.4 x 10 mm
Type
PCB trace
Comment
PCB antenna on NORA-W106. The antenna should not be mounted inside a
metal enclosure.
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
GW.26 2.4 GHz monopole antenna SMA, GW.26.0111
Manufacturer
Taoglas
Polarization
Vertical
Gain
+2.0 dBi
Impedance
50 Ω
Size
Ø 7.9 x 30.0 mm
Type
Monopole
Connector
SMA (M) .
Comment
To be mounted with a U.FL to SMA adapter cable.
Approval
RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
RF 2.4 GHZ whip antenna, ANT-2.4-CW-RH-RPS
Manufacturer
Linx
Polarization
Vertical
Gain
-1.0 dBi
Impedance
50 Ω
Size
Ø 7.4 x 27.0 mm
Type
Monopole
Connector
Reverse Polarity SMA plug (inner thread and pin receptacle).
Comment
To be mounted with a U.FL to SMA adapter cable.
An SMA version antenna is also available but not recommended for use
(ANT-2.4-CW-RH-SMA).
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
Wi-Fi external antenna, PN PRO-EX-348
Manufacturer
Abracon
Polarization
Vertical
Gain
+3.0 dBi
Impedance
50 Ω
Size
Ø 12.0 x 28.0 mm
Type
Monopole
Connector
Reverse Polarity SMA plug (inner thread and pin receptacle).
Comment
The antenna adapter cable UF.L part must be mounted on a metal ground plane for
best performance. To be mounted with a U.FL to SMA adapter cable.
SMA version antenna is also available but is not recommended for use
(Ex-It 2400 28 SMA).
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA, and ICASA
