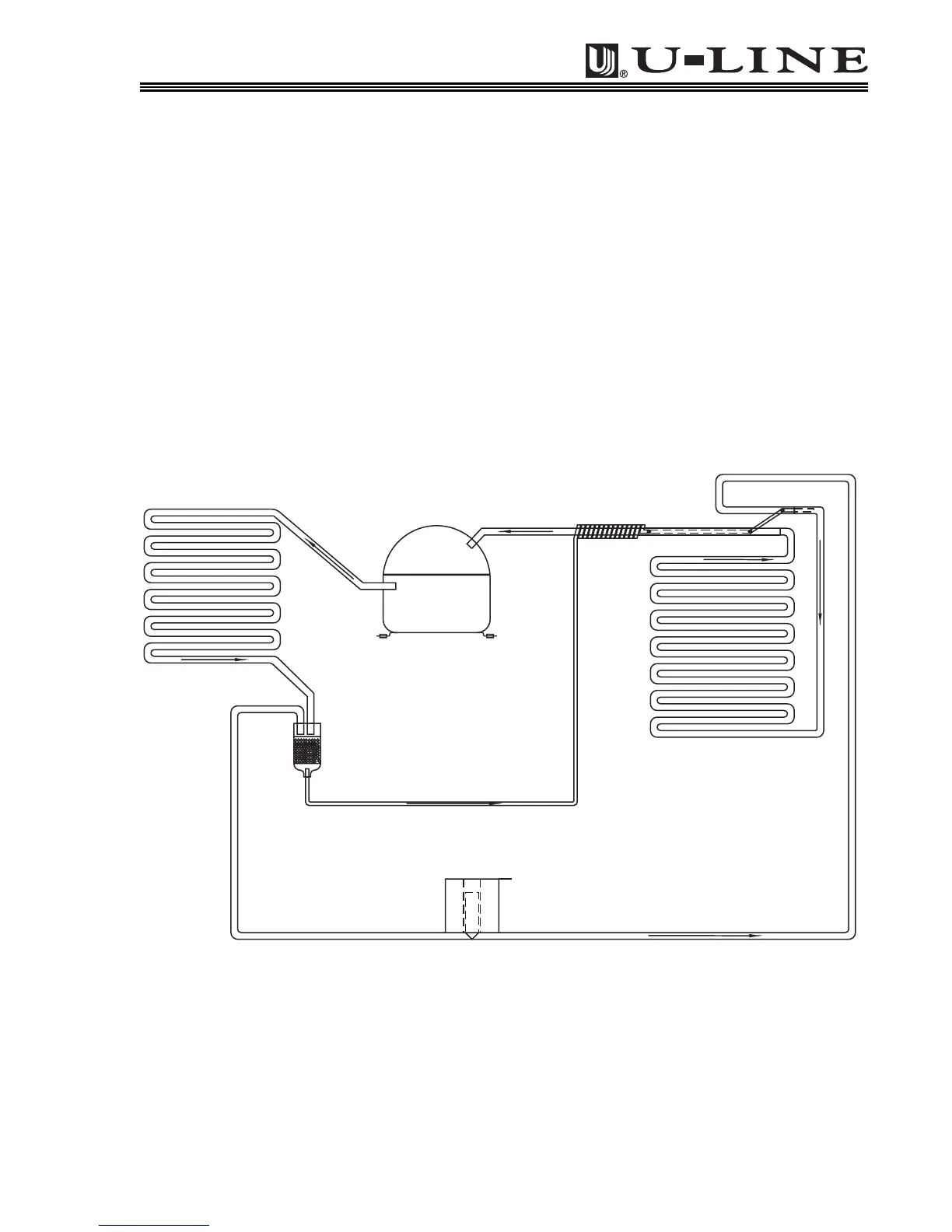

U-Line Frost Free Refrigeration System
Cooling Mode:
Bypass solenoid valve closed
Evaporator fan operating
Refrigerant flows through capillary tube
Normal vapor/compression cycle refrigeration
Defrost Mode:
Bypass solenoid valve open
Refrigerant flows through bypass system
Vapor flows from condenser to evaporator without a phase change
SOLENOID VALVE
CAPILLARY TUBE
VALVE IS CLOSED
FLOW WHEN SOLENOID
DRYER
CONDENSER
COMPRESSOR
EVAPORATOR
VALVE IS OPEN
FLOW WHEN SOLENOID
UL183-2
