Service and Parts Manual
22

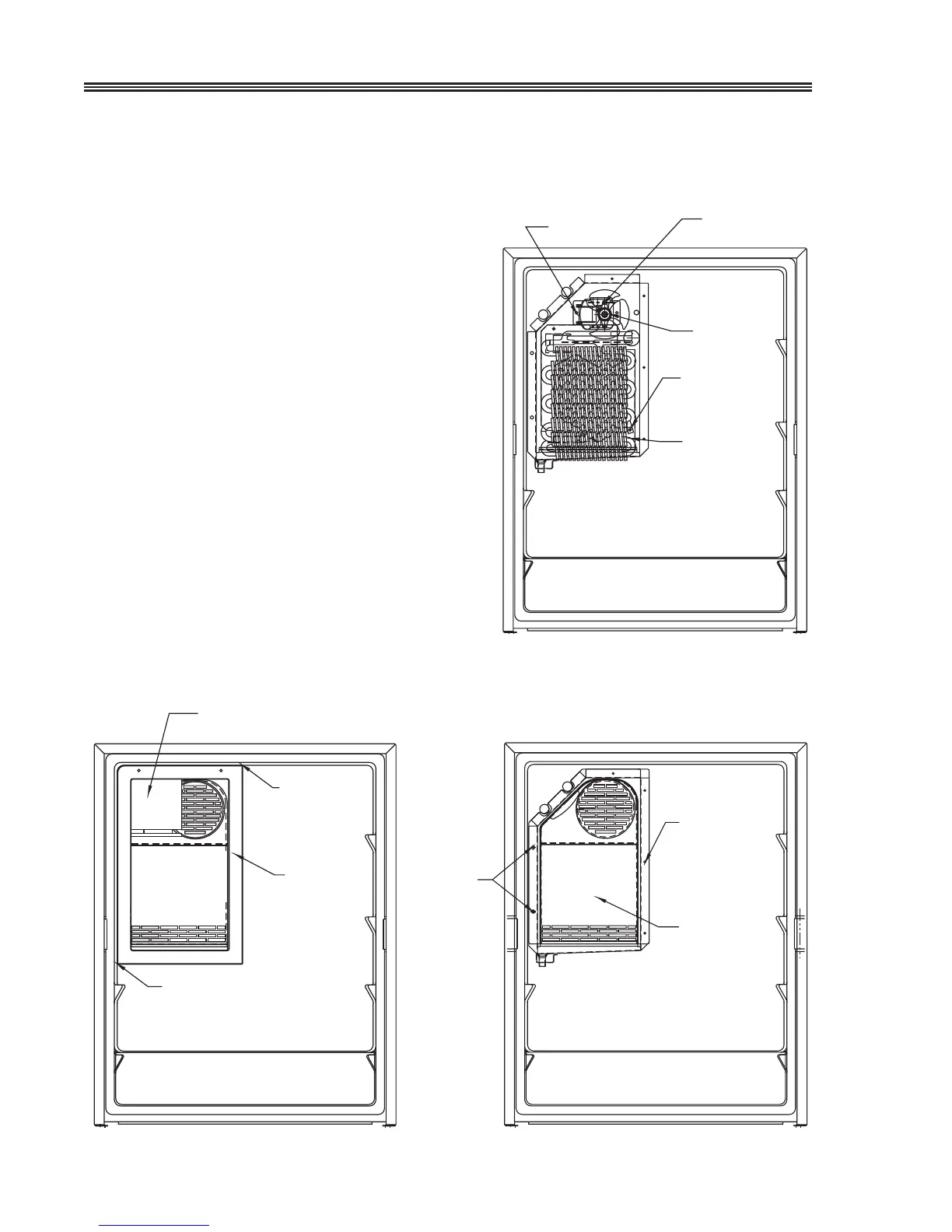

Disassembly Procedures
Model Combo C075FF
1. Disconnect from power source.
2. Disconnect ice maker wires in back of unit.
3. Remove screws (6) from freezer housing.
4. Slide out freezer housing with ice maker unit
attached.
5. Remove screws (4) from evaporator cover.
6. Slide evaporator cover out of clips (2).
To remove fan blade/motor:
1. Disconnect fan wires in the back of unit.
2. Remove fan blade by sliding off fan motor
shaft.
3. Remove screws (2) from fan motor mount-
ing bracket.
4. Remove mounting nuts (2) from fan motor
studs.
To remove evaporator:
1. Disconnect copper tubing. Be sure to
reclaim, recycle or recover refrigerant.
2. Remove screw from evaporator clip (2).
3. Slide out evaporator.
To Next Page
