U-Line BI15 Icemaker User Manual

39

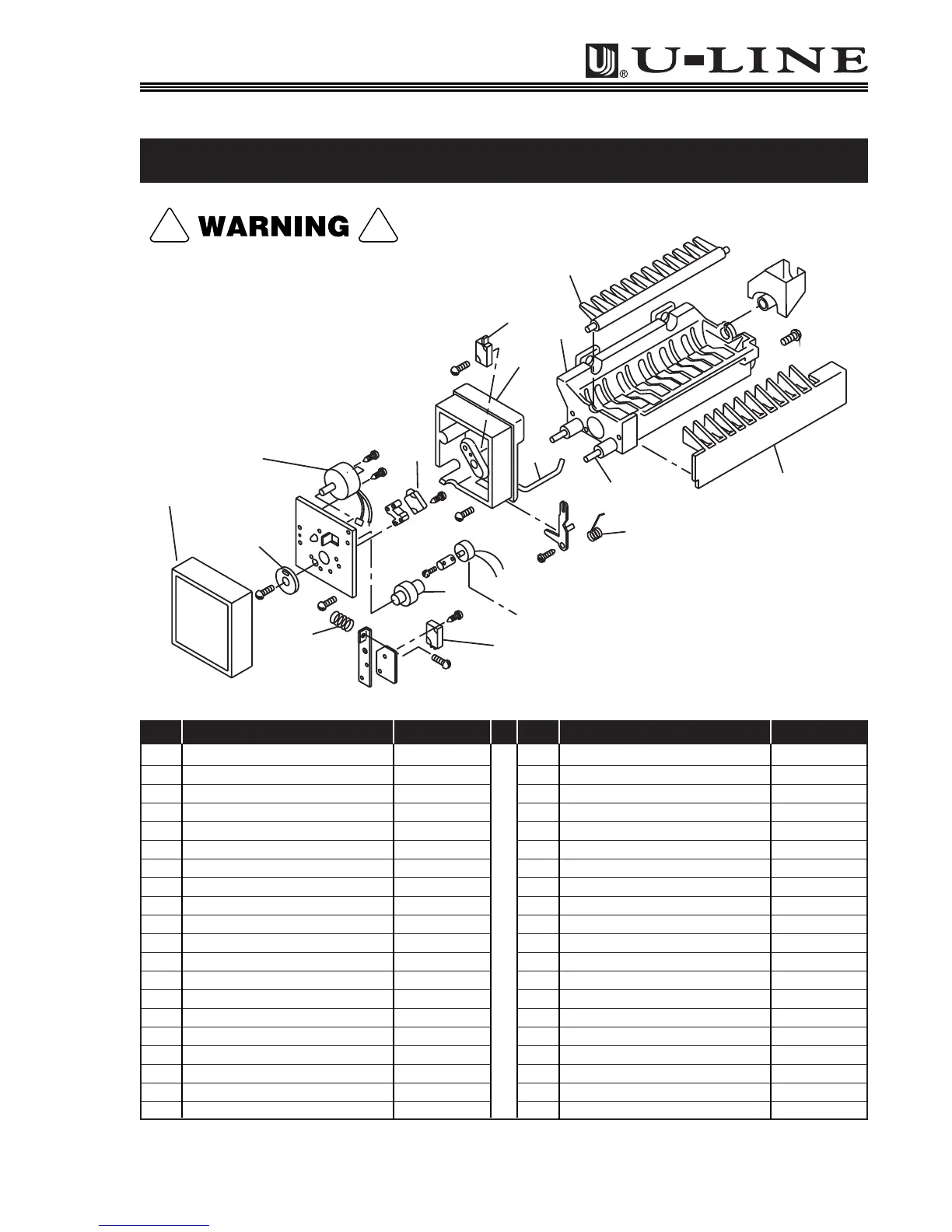

MODEL 402 ICE MAKER
Item Description Part No.
- Ice Maker Ass’y 402
- Faceplate Ass'y 150
1 Cover 627000
2 Gear 628210*
3 Motor 627973*
4 Spring 627163*
5 Valve Switch Plate 625836*
6 Switch Spacer 625834*
7 Cam 627302*
8 Insulator 627680*
9 Hold Switch 2506*
10 Limit Switch 2579
11 Valve Switch 2506*
12 Support Housing 625827
13 Bin Arm 2603
14 Bin Arm Spring 627526
15 Ejector 627375
16 Mold Heater 625843-S
17 Stripper 999273
18 Stripper Screw 489128
Item Description Part No.
19 Mold & Heater Ass’y 628123-S
20 Water Cup 544304
21 Spring & Housing Screw 488372*
22 Gear Screw 488957*
23 Face Plate 627782*
24 Plate Screw 41375
25 Long SW Screw 488361*
26 Short SW Screw 488362*
27 Bin SW Screw 488360
28 Clamp 625829
29 Arm Lever 625830
30 Arm Lever Screw 627199
31 Motor Screw 488622*
32 Bin Switch 2506
220V Motor 628109
220V Mold Heater 626069-S
220V Mold & Heater Ass’y 618
220V Faceplate Ass’y 650
220V Ice Maker Ass’y 619
*Parts included in the 150 faceplate assembly.
402ICEMAKER
20
18
17
15
32
19
16
14
27
12
13
21
26
25
21
29
30
10
11
7
9
4
5
28
8
24
22
6
31
23
3
2
1
402ICEMAKER
Use only genuine U-Line
replacement parts. U-Line ice
maker parts are not the same
as standard FSP Whirlpool
parts. Using non U-Line parts
can reduce ice rate, cause
water to overflow from ice
maker mold, damage the unit,
and may void the warranty.
! !
