Service and Parts Manual
24
Model Combo 75RF

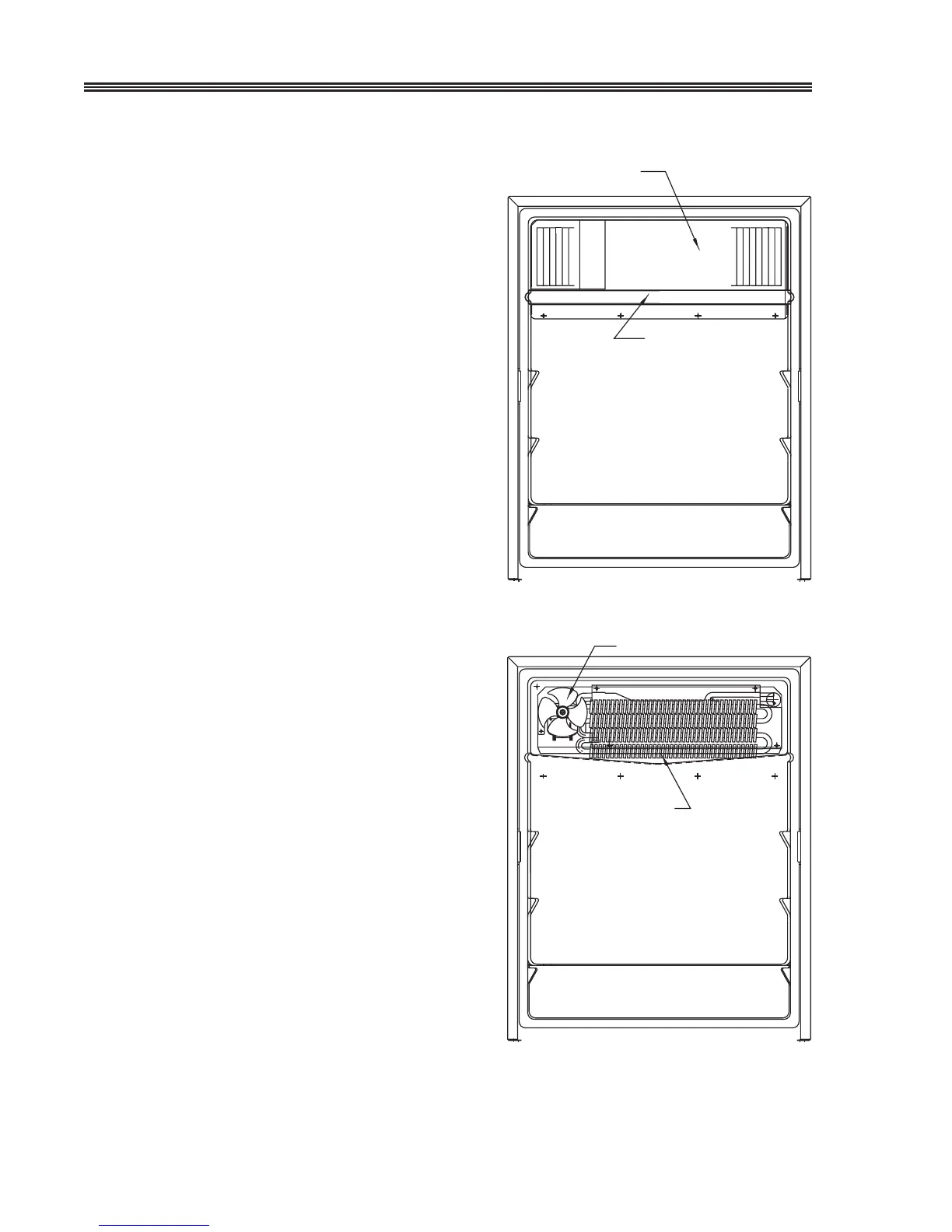

1. Disconnect from power source.
2. Remove freezer door.
3. Slide out mullion.
4. Remove screws.
To remove fan blade/motor:
1. Disconnect fan wires in the back of unit.
2. Remove fan blade by sliding off motor shaft.
3. Remove screws (2) from mounting bracket.
4. Remove nuts from fan motor studs.
To remove evaporator:
1. Recover all refrigerant.
2. Disconnect copper tubing.
3. Remove mounting screws (4) from
evaporator.
4. Slide out evaporator.
