ASSEMBLY
POWER CORD
Control
GREEN
EMBRACO
WHITE
CAPACITOR
BLUE
GREEN
MATSUSHITA
BLUE
BLUE
WHITE
BLUE
RELAY
OVERLOAD
BLUE
RELAY
COMPRESSOR
OVERLOAD
2
3
8

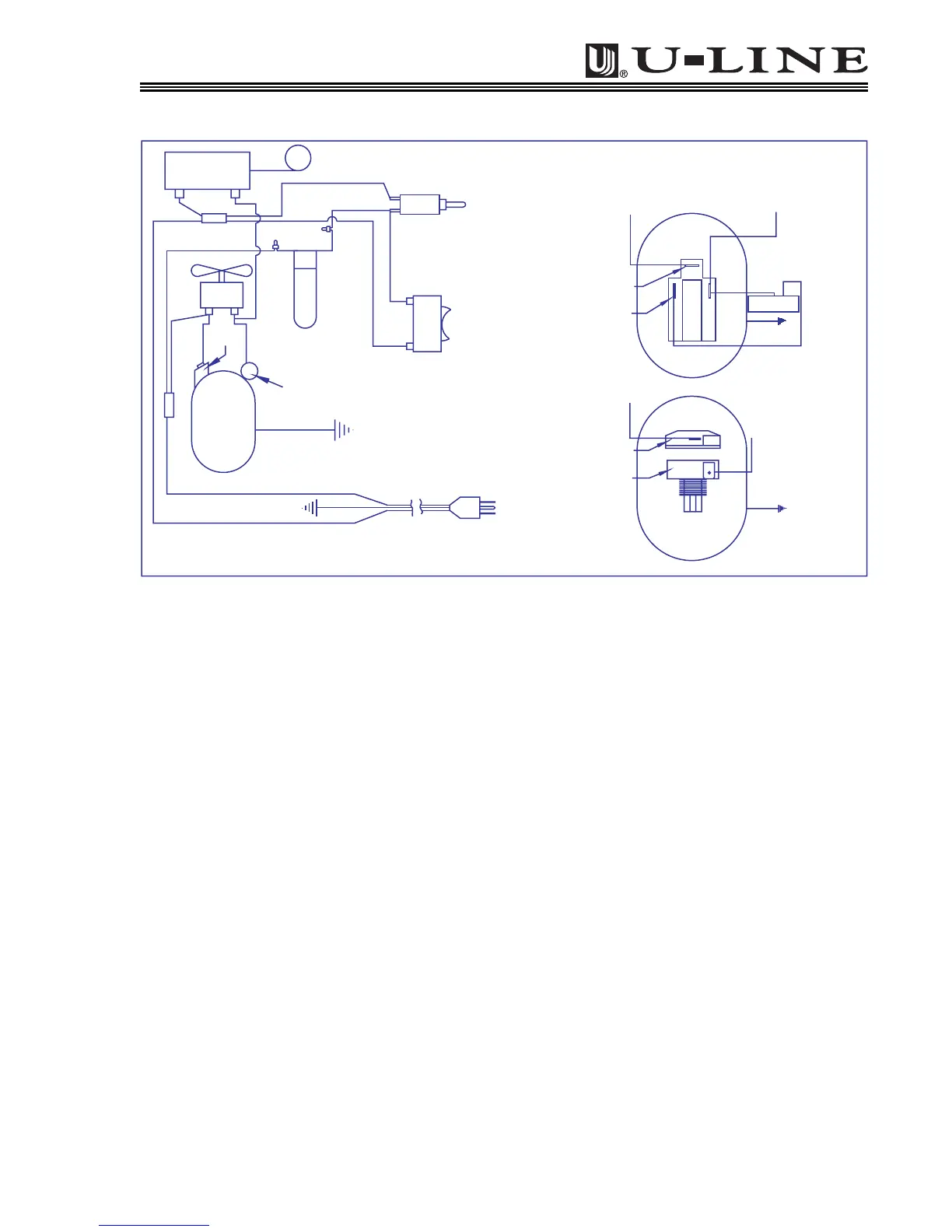

15WC, 29WC, 75WC WIRING DIAGRAM
WHITE - NEUTRAL
BLACK - HOT
GREEN GRD.
OVERLOAD
Lamp
RELAY
Compressor
75 & 15 ONLY
GREEN GRD.
Fan
WHITE
BLUE
BLACK
Rocker Switch
Door Lamp Switch
BLACK
BLACK
P/N B41860
ON S43C COMPRESSOR
CAPACITOR NOT USED
