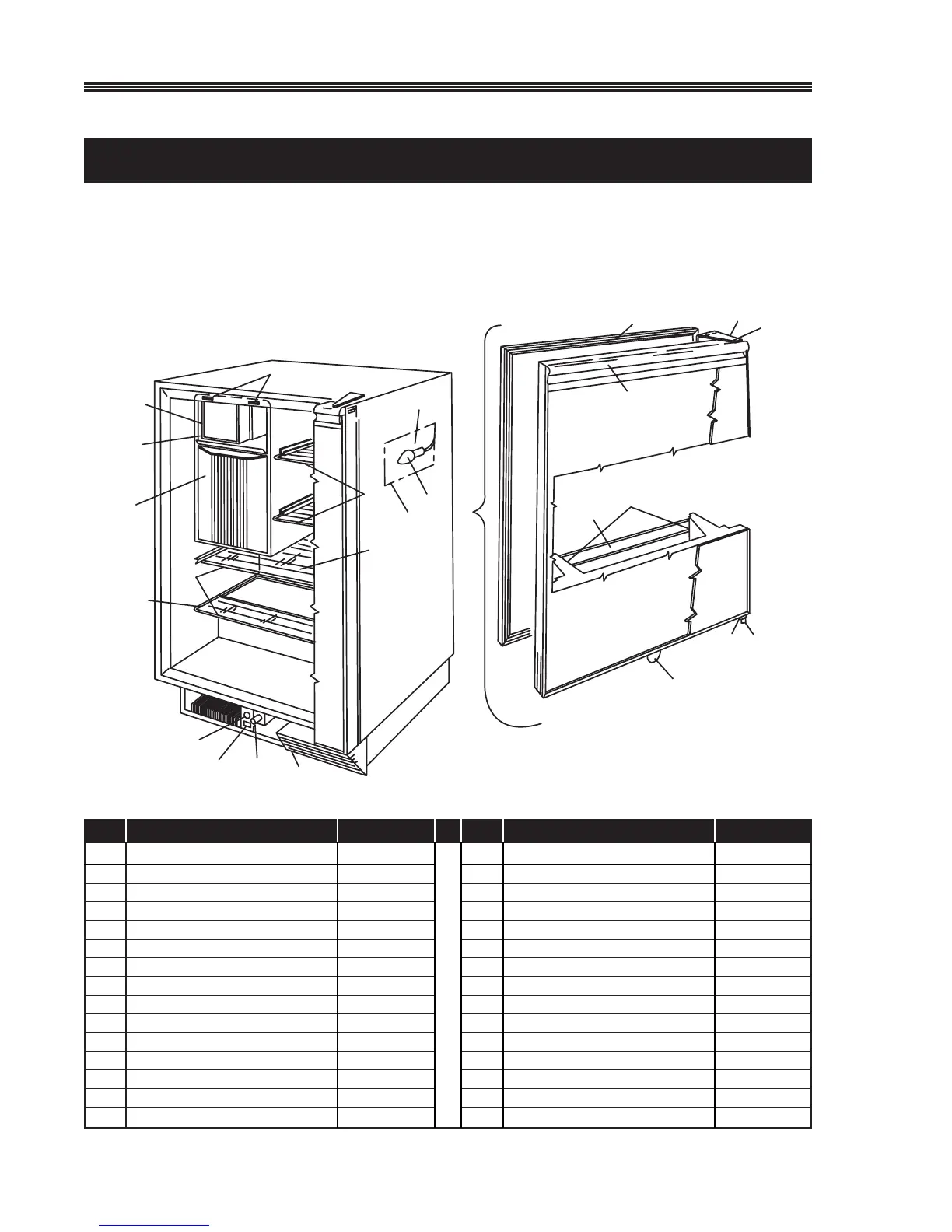

COMBO 75A (1 of 2)
For Item #10, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Handle 31489-4*
2 Door Gasket 31493-4*
3 Door Shelf Retainers (3) 31521-1
4 Shelf Retainer Rivet (6) 41824
5 Door Switch 1916
6 Door Ass’y 75-DOOR*
7 Hinge, Top, 3 Hole 11697-ST*
Hinge, Top, 4 Hole 11849-ST*
8 Pivot Screw, Top 41785-SS*
9 Dr Switch Brkt 11712
10 Ice Maker Ass’y 402
11 Ice Bucket 31501
12 Control 2690
13 Control Knob 41492
14 Switch On-Off 2053
Item Description Part No.
15 Lamp Holder 31316-1
16 Lamp Bulb 31317
17 Ice Bin Door 31523-S
18 Glass Shelf (1) 31427-1
19 Glass Half Shelf 31435
20 Grille 11664*
21 Glass Short Shelf (2) 31423-1
22 Trim Strip, Front Long (2) 31443-4
23 Trim Strip, Front Short (2) 31443-2
24 Hinge, Bottom, 3 Hole 11697-SB*
Hinge, Bottom, 4 Hole 11849-SB*
25 Pivot Screw, Bottom 41747-SS*
26 Ice Bin Door Hinge 31463
27 Light Cover 31314
*Please indicate color.
COMBO75Aa
9
16
6
27
15
12
13
1
11
24
25
4
3
8
7
2
20
5
14
18
23
19
22
17
10
26
COMBO75Aa
