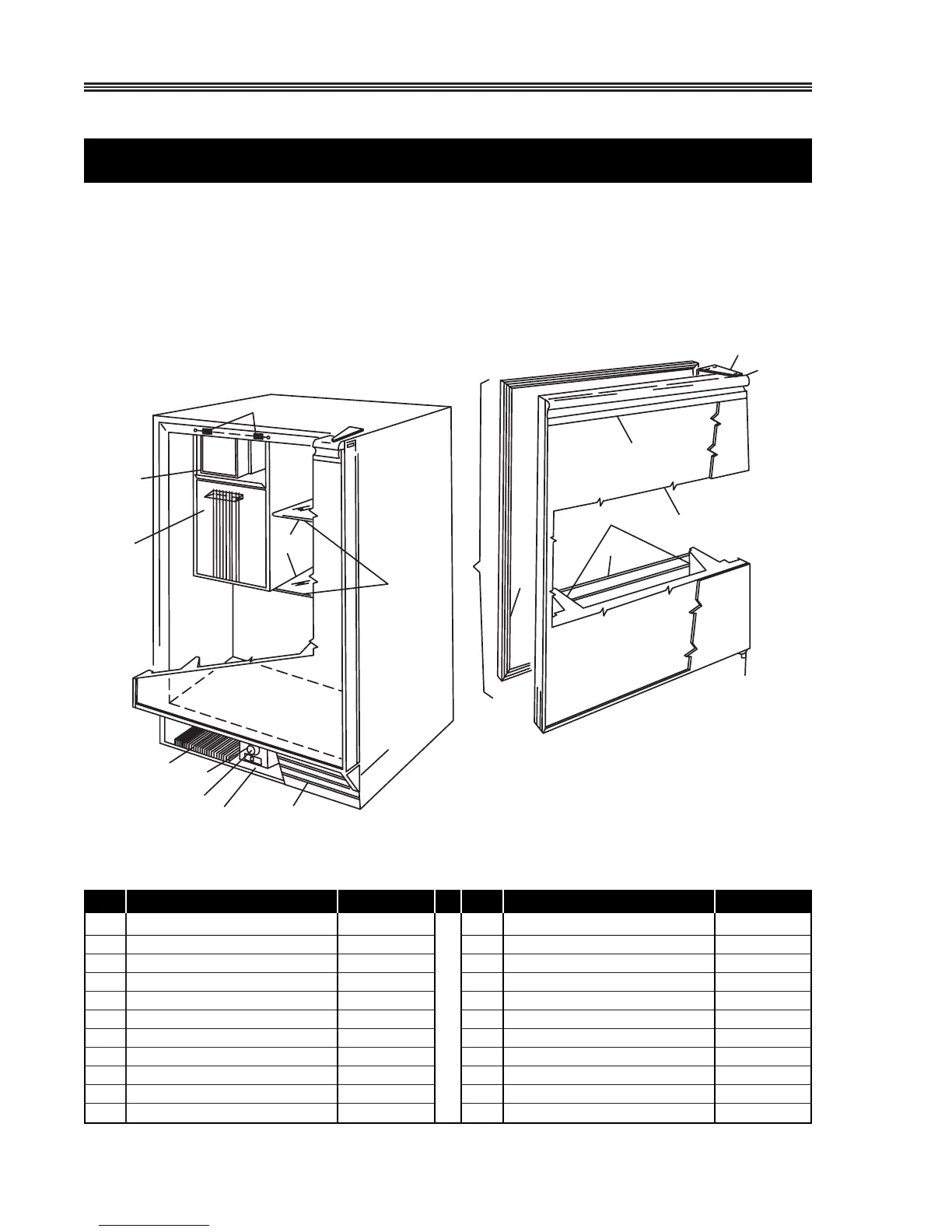

COMBO 29A (1 of 2)
For Item #8, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Handle 31489-3*
2 Door Gasket 31493-3*
3 Door Shelf Retainer (Long) 31521-2
4 Door Shelf Retainer (Short) 31521-3
5 Pivot Hinge, Top 11697-ST*
6 Pivot Hinge, Bottom 11695-S*
8 Ice Maker Ass’y 402
9 Ice Bucket 31501
10 Complete Door Ass’y 29-DOOR*
11 Control AR-19-12
12 Grille 11663*
Item Description Part No.
13 Ice Bin Door 31523-S
14 Glass Shelf (2) Short 31425-1
15 Switch On-Off 2053
16 Ice Bin Door Hinge (2) 31463
17 Shelf Retainer Rivet (6) 41824
18 Shelf Trim Strip Front (Short) 31443-1
19 Pivot Screw, Top 41785-SS*
20 Condenser 1893-S
21 Pivot Screw, Bottom 41747*
22 Control Knob 41492
*Please indicate color.
19
5
21
4
1
16
13
3
2
10
18
6
14
22
20
9
12
15
11
17
COMBO29Aa
COMBO29Aa
