13
Compressor/Electrical Specifications

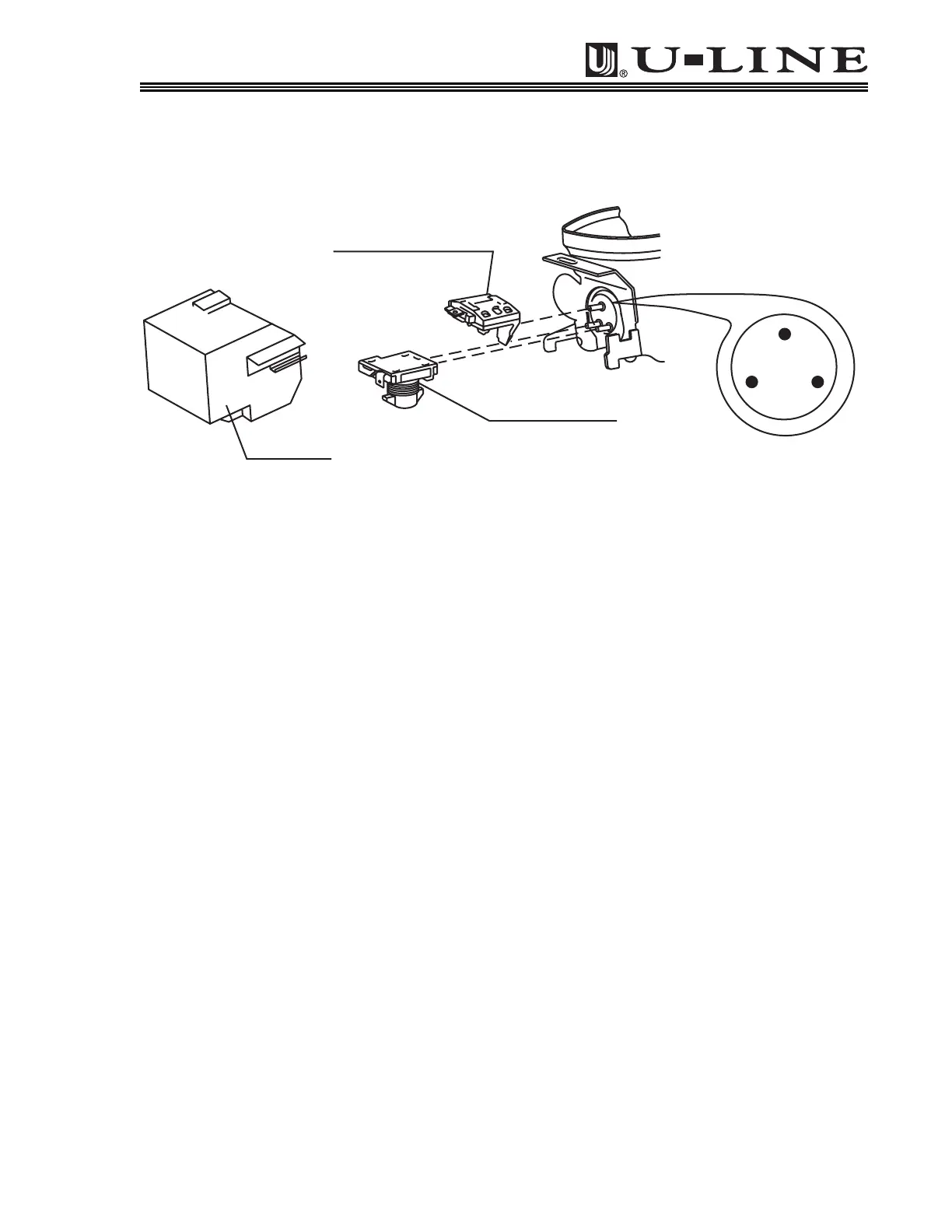

Compressor Pins
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. These pins should
never measure any resistance to ground. This would indicate a shorted compressor.
Specifications
EMI3OHER Start Winding Resistance: 28 OHMS
EMI3OHER Run Winding Resistance: 8 OHMS
SD39 Start Winding Resistance: 11 OHMS
SD39 Run Winding Resistance: 5 OHMS
EMI5OHER Start Winding Resistance: 12 OHMS
EMI5OHER Run Winding Resistance: 4 OHMS
SD51 Start Winding Resistance: 5 OHMS
SD51 Run Winding Resistance: 5 OHMS
115 VOLT Ice Maker Heater Resistance: 80 OHMS
115 VOLT Water Valve Coil Resistance: 335 OHMS
C
S
R
OVERLOAD PROTECTOR
STARTING RELAY
RELAY COVER
UL183-3
EMI ER
