17

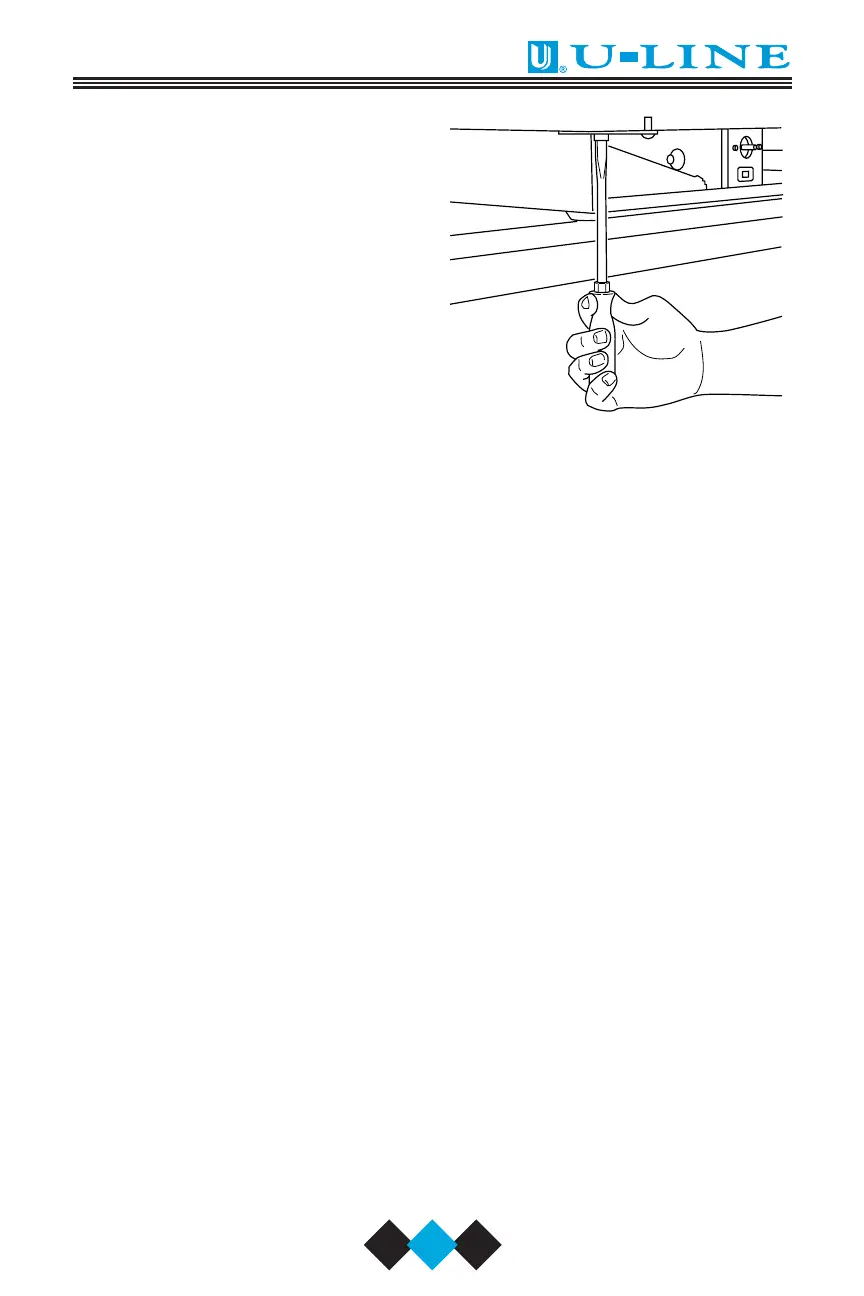

8. Install bottom hinge on cabi-
net, opposite side, aligning
flat edge of hinge with outer
edge of unit. Partially tighten
screws. See Figure 25.
9. Relocate plastic spacer/
bushing on bottom of door to
opposite side, and place door
on bottom hinge pin (see
Figure 20). Clean out bush-
ing hole in door bottom with
a screwdriver if needed.
10. Place door on lower hinge pin. Align flat edge of top hinge with
outer edge of unit and fasten upper hinge to unit (4 screws).
Partially tighten screws until door is aligned. See Figure 23.
11. Adjust door to assure proper seal. Tighten upper and lower hinge
screws securely.
12. Replace four plastic plugs removed in step 5 into holes on top of
unit. Replace screws in holes in bottom of unit, opposite side.
13. Reinspect door seal and alignment. Adjust if needed.
14. Reinstall grille (1 screw).
UL129
Figure 25
Users Manual 41923 9/2/03 3:44 PM Page 17
