Ubee UBC1329AA00 User Manual

Ubee UBC1329AA00 Advanced Wi-Fi 6 Voice Gateway User Manual • February 2021 86

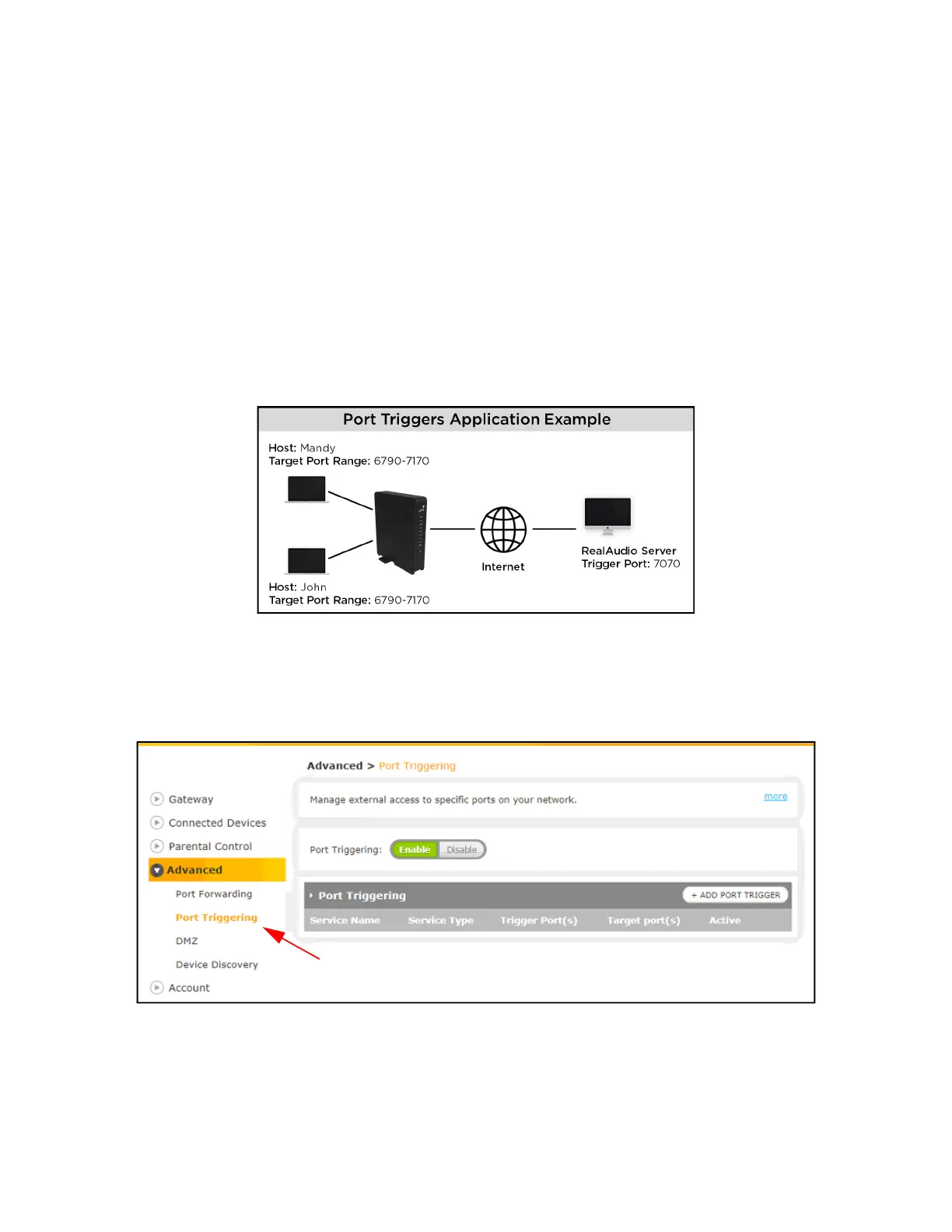

For Example:
1. John requests a file from the RealAudio server (port 7070). Port 7070 is a
“trigger” port and causes the device to record John’s computer IP address.
The UBC1329AA00 associates John's computer IP address with the
“target” port range of 6970-7170.
2. The RealAudio server responds to a port number ranging between 6970-
7170.
3. The UBC1329AA00 forwards the traffic to John’s computer IP address.
4. Only John can connect to the RealAudio server until the connection is
closed or expires.
Port Triggering Screen:

Ubee UBC1329AA00 Specifications

General

Brand	Ubee
Model	UBC1329AA00
Category	Gateway
Language	English
