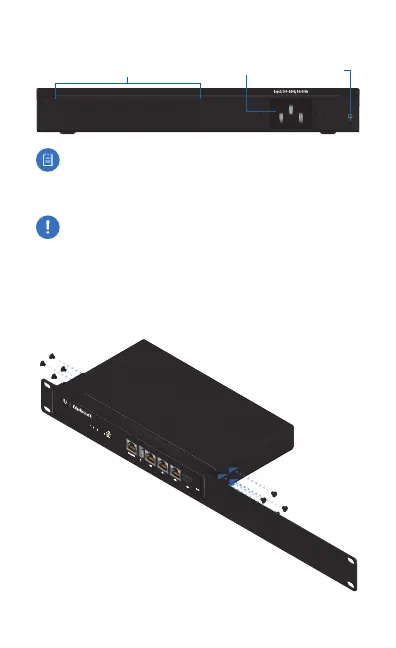

Back Panel
Ventilation Holes
Power Grounding Point
Note: There are additional ventilation holes on the sides
of the EdgeRouter.
Hardware Installation
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
Rack Mounting
1. Slide the EdgeRouter into the Mounting Bracket and secure
it using the eight Bracket Screws.
