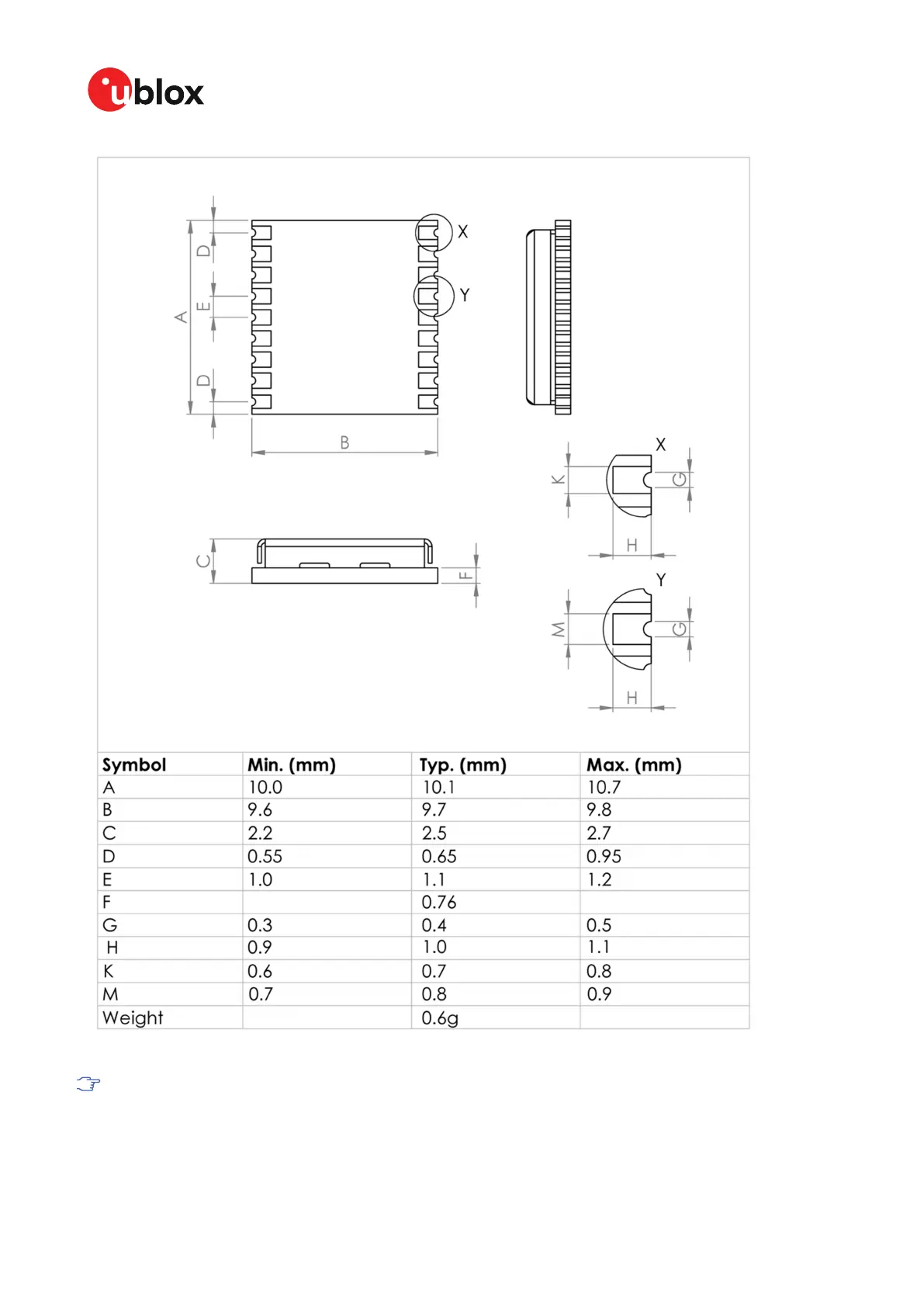

Figure 28: MAX-M10M mechanical dimensions
MAX form factor is 10.1 x 9.7 x 2.5 mm. All pins have 1.1 mm pitch and are 0.8 mm wide,
except the 4 pads at each corner (pin 1, 9, 10, and 18) that are only 0.7 mm.
Figure 29 and Figure 30 describe the footprint and provide recommendations for the paste mask.
Note that the copper and solder masks have the same size and position.
