Transmitter Installation:

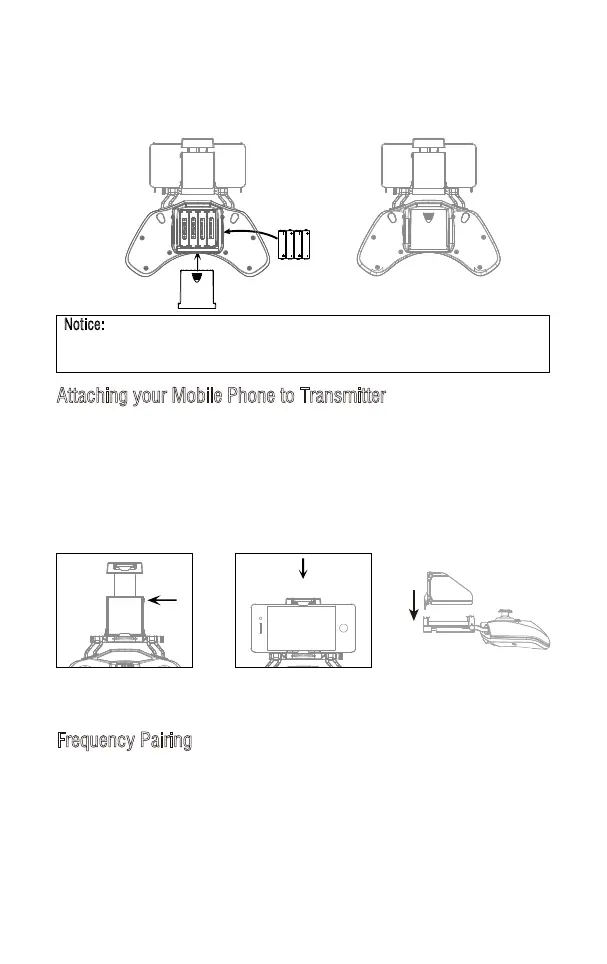

Battery installation: open the battery cover on the back side of the transmitter and
put 4 alkaline batteries (AAA, not included) into the box in accordance with
electrode instructions, as Picture 6 and Picture 7 shown.
Pre-flight Operation Instruction
Frequency Pairing
1. Turn on the transmitter switch (Picture 11) and the power indicator light flashes
rapidly. Push the Left Stick all the way down to the lowest position and then
release. The Left Stick will back to the middle position automatically.
(Picture 12 / 13) The power indicator light flashes slowly, which indicates the
transmitter is ready for frequency pairing.
2. Install the battery to the mounted box in the drone and then connect the plugs
to power on the drone. Close the drone battery cover. (Picture 14 / 15)
Picture 7Battery Cover
4*1.5V
Alkaline Batteries
Picture 6
+ -
+-
- +
-+
1. Make sure the electrodes are correct. 2. Do not mixed use new and old batteries.
3. Do not mixed use different kinds of batteries. 4. Do not charge the non rechargeable battery.
Notice:
Attaching your Mobile Phone to Transmitter
1. Press the self-locking switch on the top right side of the mobile holder and push
the holder to a fully open position as Picture 8 shown.
2. Place the mobile phone facing frontward position, pull the mobile phone holder
down and press tightly as possible to secure the mobile phone and transmitter
(please note that do not touch the mobile phone button) as Picture 9.
Picture 8 Picture 9
3. Insert the lens hood into the slot and make sure the lower edge of the lens
hood is as close to the mobile phone as possible as Picture 10.
Picture 10
