UFactory LITE 6 Quick Start Guide

Software connection:

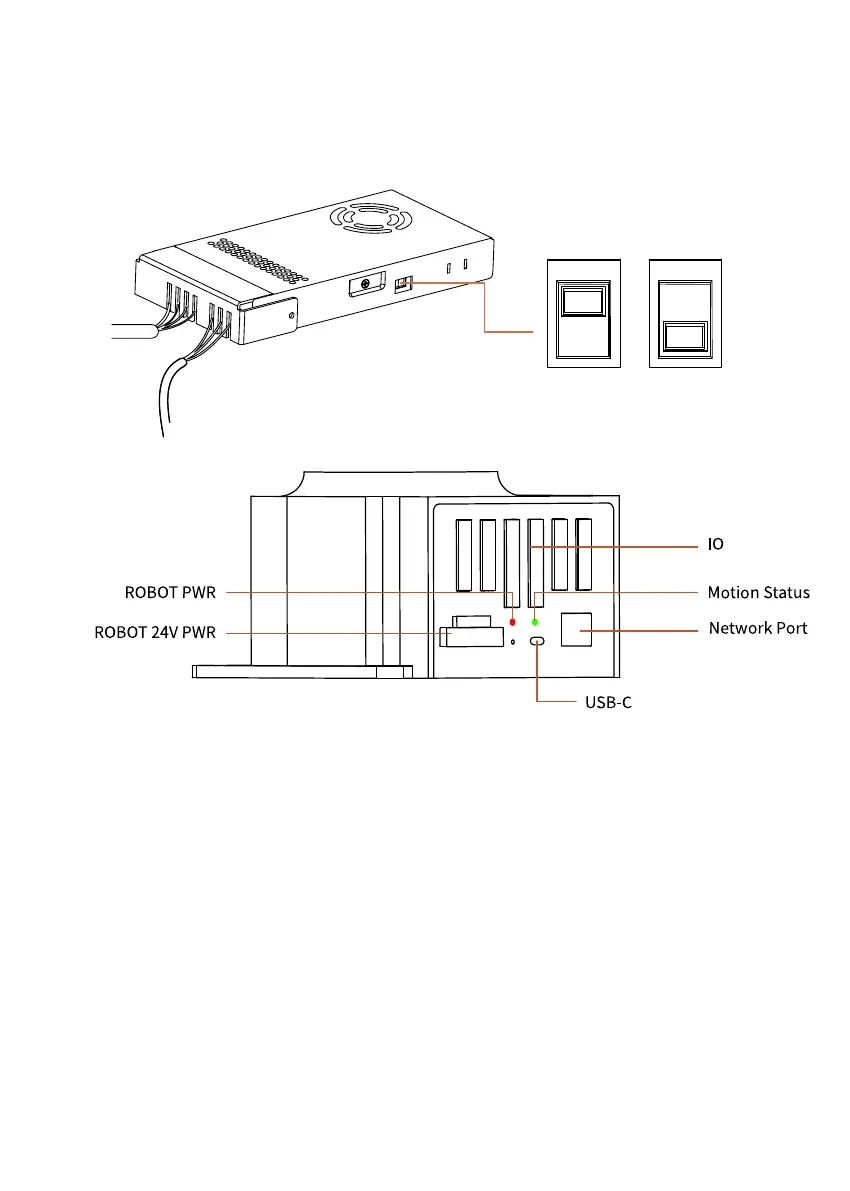

Notice：Please make sure the voltage selector switch(as shown in Figure 2) has been
adjusted to correct gear according to the local voltage before powering on. Otherwise, the
circuit of Lite 6 robotic arm may be damaged.
1. Ensure that all the hardware connection steps have been completed;
2.Configure the IP address of the PC
(1) Set the IP address of the PC: Make sure the PC and the integrated Control Box are in the
same LAN environment [The network segment of integrated Control Box is 192.168.1.xxx (x is a
number between 1 and 255)], which means that the IPV4 network segment of the PC must be
between 192.168.1.1 and 192.168.1.255 (the end number of IP address shall be different from
that of the Control Box); the factory IP address of the Lite 6 has been marked on the integrated
Control Box; The configuration steps on PC are shown in Figure 4.1-4.5;
115V
230V
02
Figure 2
Figure 3
