S9600-72XC Hardware Installation Guide | 4

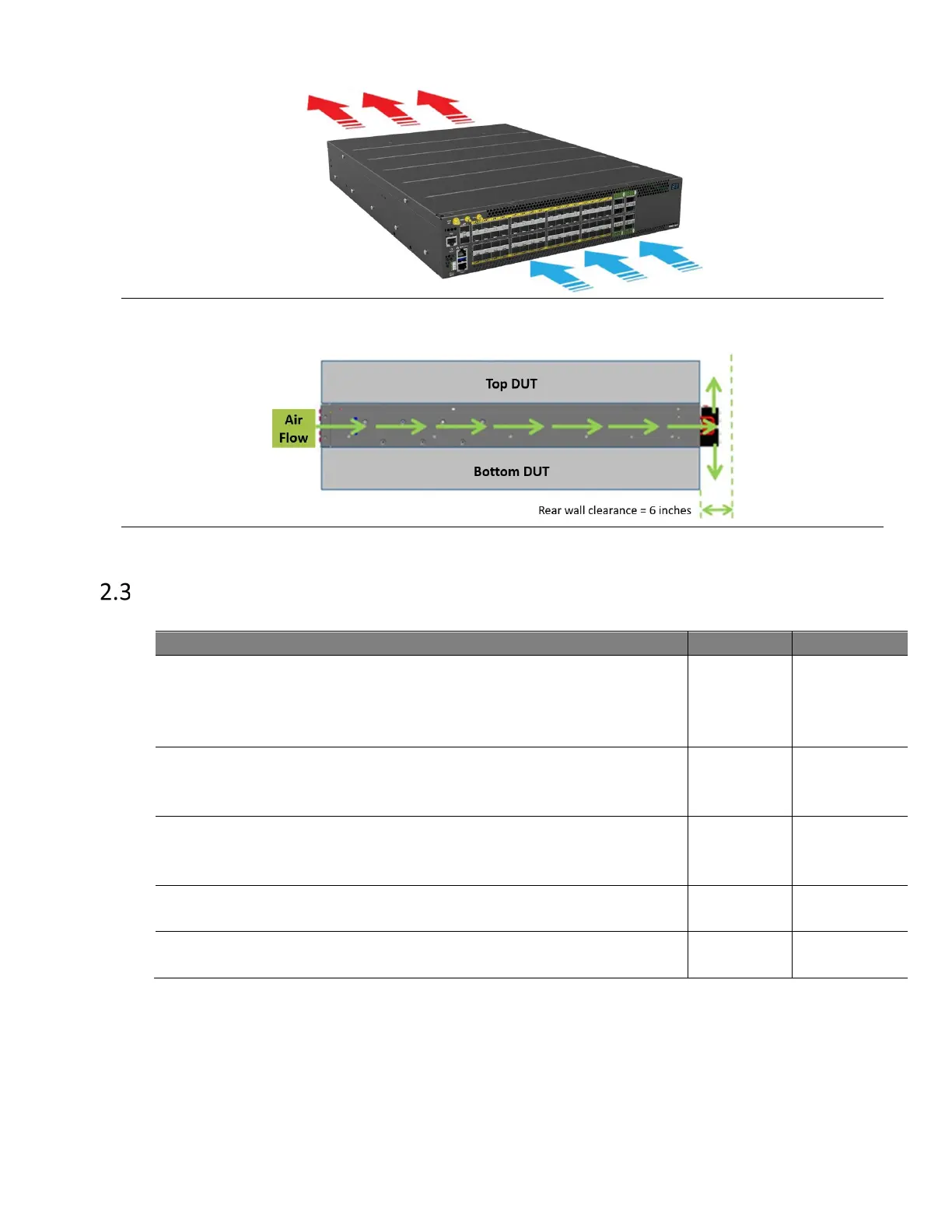

Figure 2.
Figure 3.
Preparation Check List
Power voltage and electric current requirement
DC version: -40 to -75V DC, 40Ax2 ampere maximum or;
AC version: 100 – 120V, 12Ax2 ampere maximum
200-240V, 7.5Ax2 ampere maximum
Installation spacing requirement
S9600-72XC is 2RU (3.45”/8.8cm) in height, 19” (48.3cm) in width,
and minimum reserve depth of 30 inches (76.2cm)
S9600-72XC working temperature is 0 to 45°C (32°F to 113°F),
airflow direction is front-to-back
Installation tools required
#2 Philips Screwdriver, 6-AWG wire stripper, and crimping tool
Accessories required
PC with USB ports and terminal emulation software
