Table 3 Electric cord selection criteria
Power supply
voltage
Voltage
standard
Current standard
Temperature
standard
100-120V 125V or more
10A or more, instantaneous (5sec)
10A or more
200-240V 250V or more
10A or more, instantaneous (5sec)
10A or more
70ºC or
more
Install the fuse of 10A - 15A or circuit breaker in the branch circuit of the equipment
side.
b) Fastener
When
using the pump with an electric cord, use a fastener. It prevents the
electric cord from coming out of the consent. Select a fastener that fits the
shape of the electric cord.
c)
How to attach the fastener and electric cord
Attach the fastener according to the following steps 1-5. (Refer to Fig. 7.)
(1) Insert one side of the fastener into one of the holes to the side of the electric
cord consent.
(2) While squeezing the other side of the fastener, insert it into the hole on the
other side of the consent.
(3) Lift the fastener.
(4) Firmly insert the electric cord.
(5) Lower the fastener.

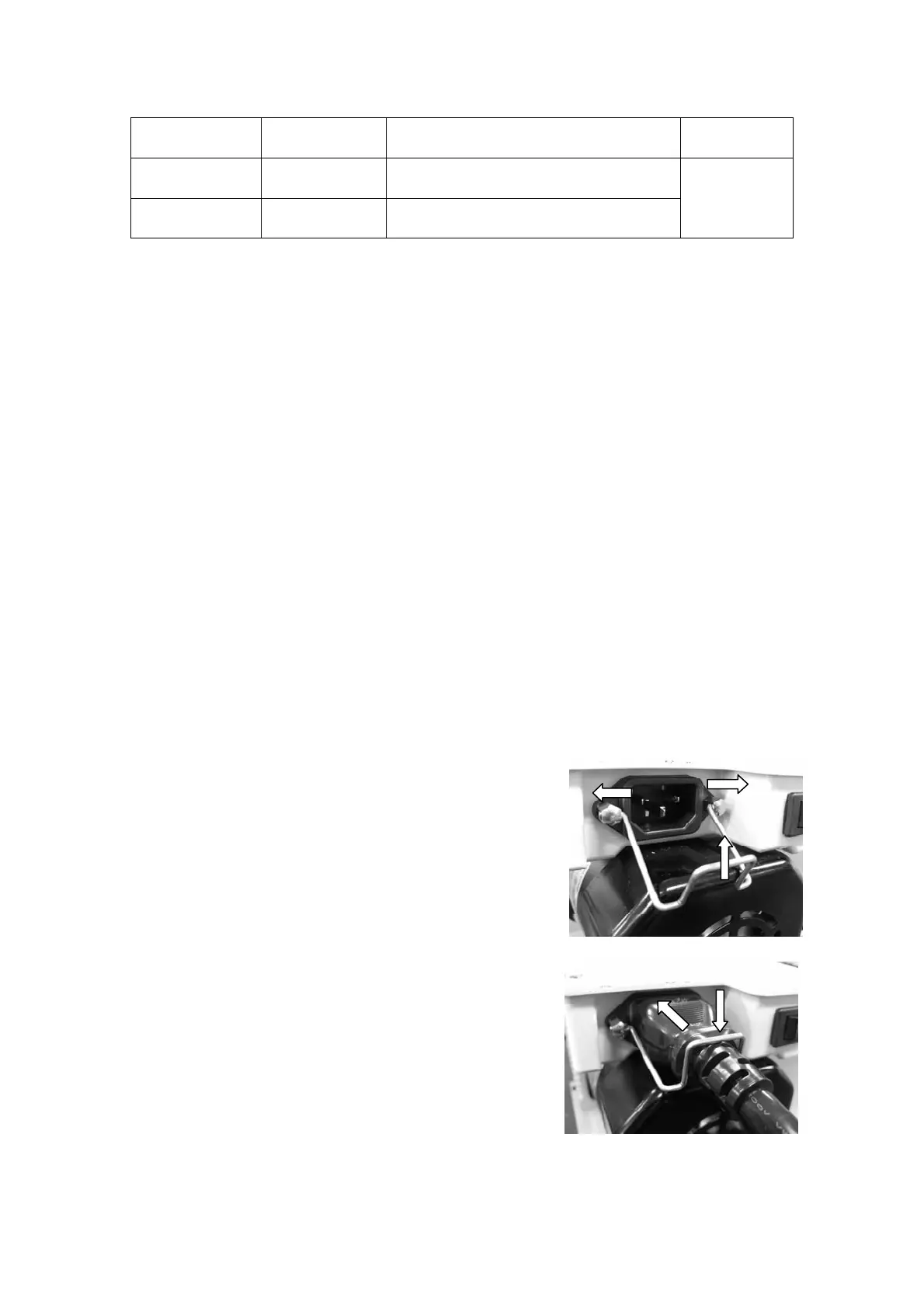

Fig. 7 How to attach the fastener and electric cord
③
①
②
⑤
④
