Ulvac GP-1G - Page 36

RELATED DRAWINGS
- 29 -
Sensor head model
Mounting port size
(dia.)
Filament material Case material Compatible cable
WP-01
φ 18
Pt (φ 25µ)
BS (Ni plating)
Socket type
WP-02
φ 15 (18)
Pt (φ 25µ)
BS (Ni plating)
Socket type
WP-03
φ 3/8
Pt (φ 25µ)
BS (Ni plating)
Socket type
WP-16
NW-16
（
φ 30
）
Pt (φ 25µ)
BS (Ni plating)
Socket type
WPB-10-034
UFC-034
Pt (φ 25µ)
SUS304
WPB

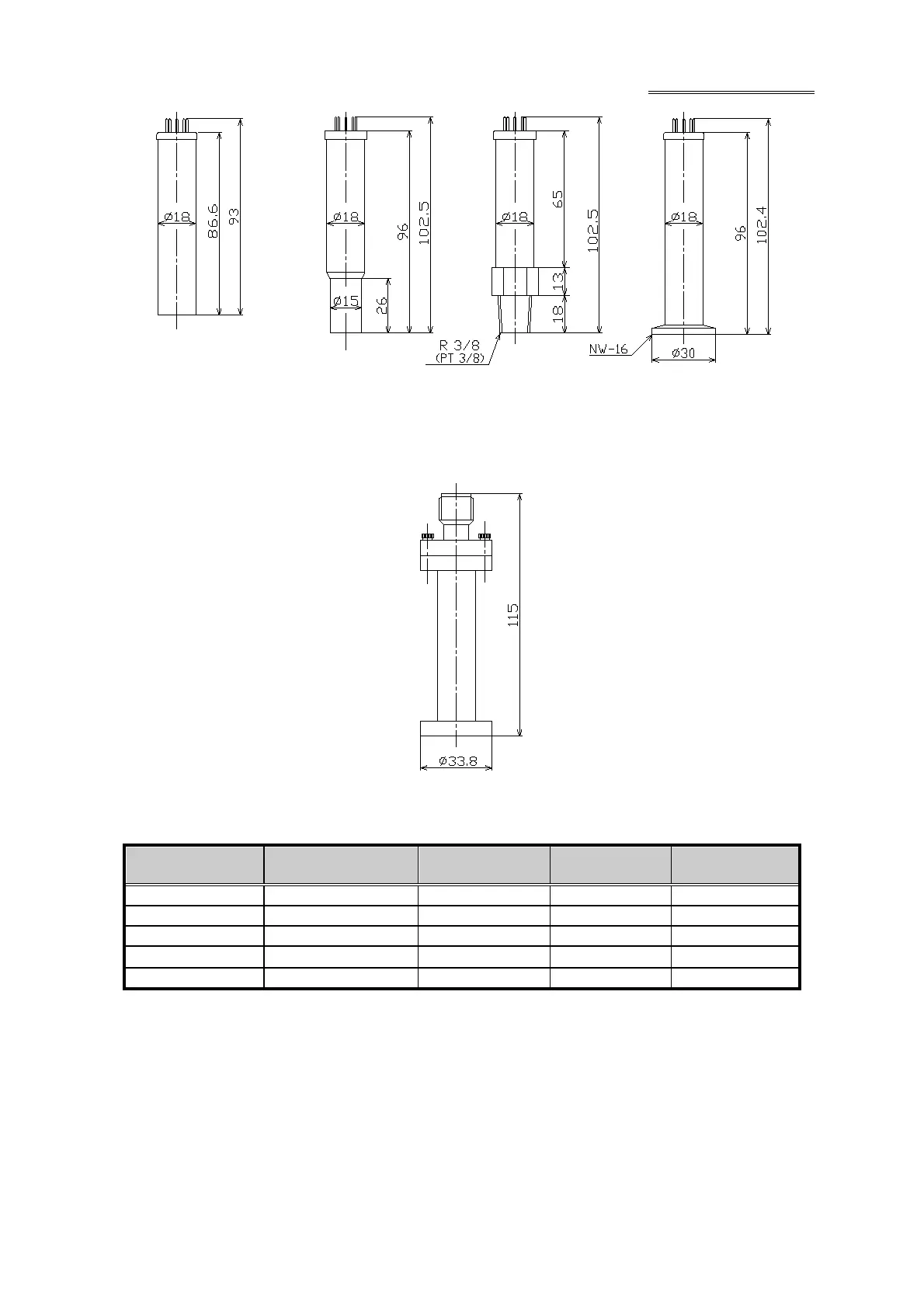

Fig. 7-7 List of sensor heads compatible with GP-1G
WP-01 WP-02 WP-03 WP-16
WPB-10-034
