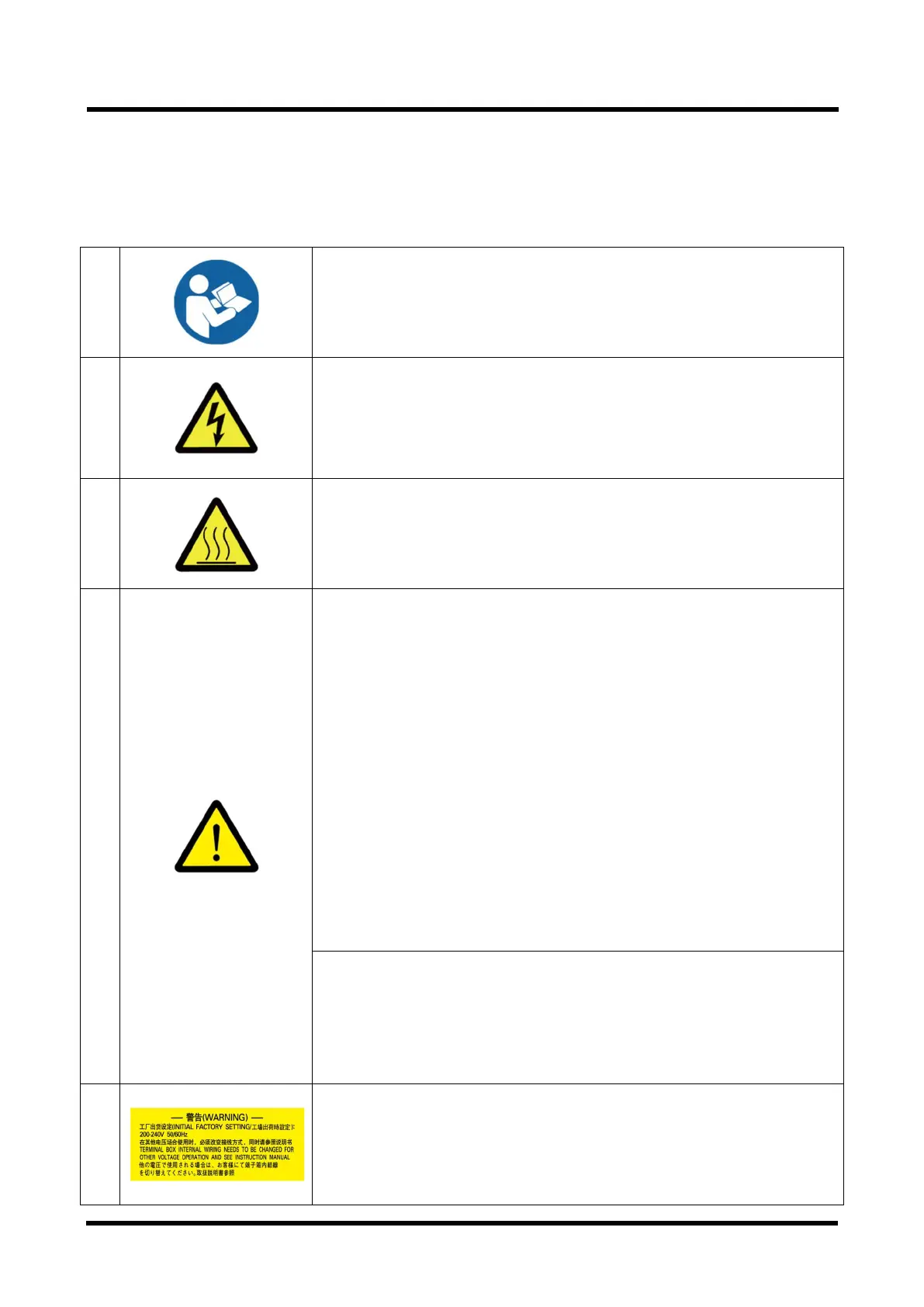

0.4 Types and Descriptions of Warning Labels Displayed on This Machine and
Displayed Positions
Warning labels are attached on the warning locations in this system.
Be sure to check them before starting operation of the Pump.
1
Before use, read through the instruction manual and fully
understand its contents.
2
・You may get an electric shock in the area around a portion
with this warning label. Before maintenance or wiring, be sure
to turn off the primary power supply.
・Be sure to close the lid of the terminal box before operating
this unit. Never open it during operation.
3
During operation or for a while after operation stops, do not
touch the unit as each portion is at a very high temperature. - If
a human body touches the unit, it may get burned.
4
・This product is not made as the withstand pressure structure.
Ensured pressure value of the Pump shall be 0.03MPaG
(0.3kg/cm2G) (Gauge pressure).
・Do not run the Pump on blocking the Exhaust outlet or putting
any device that might hamper gas passage onto the outlet.
There is a risk that the pressure inside the vacuum pump rises
up to cause break the casing or Oil level gauge resulting in
overload of the motor.
・Following gases cannot be evacuated because these gases
may cause the
pump inner pressure to increase due to internal combustion.
1) explosive gas
2) flammable gas
3) gas which increases the susceptibility of substances to burn.
Long term storage of the Vacuum pump without operation
might possibly cause trouble in operation caused by rust if you
kept the Pump long time without operating it, ask a closest
Service Center for the check.
Indoor Use Only
Mount at least 100mm from side walls.
5
Before wiring, please confirm the power-supply voltage you
use.
Please confirm the power-supply voltage you'll use and change
crossline in the terminal box.
Refer to “3.5 Electrical Connection”.
