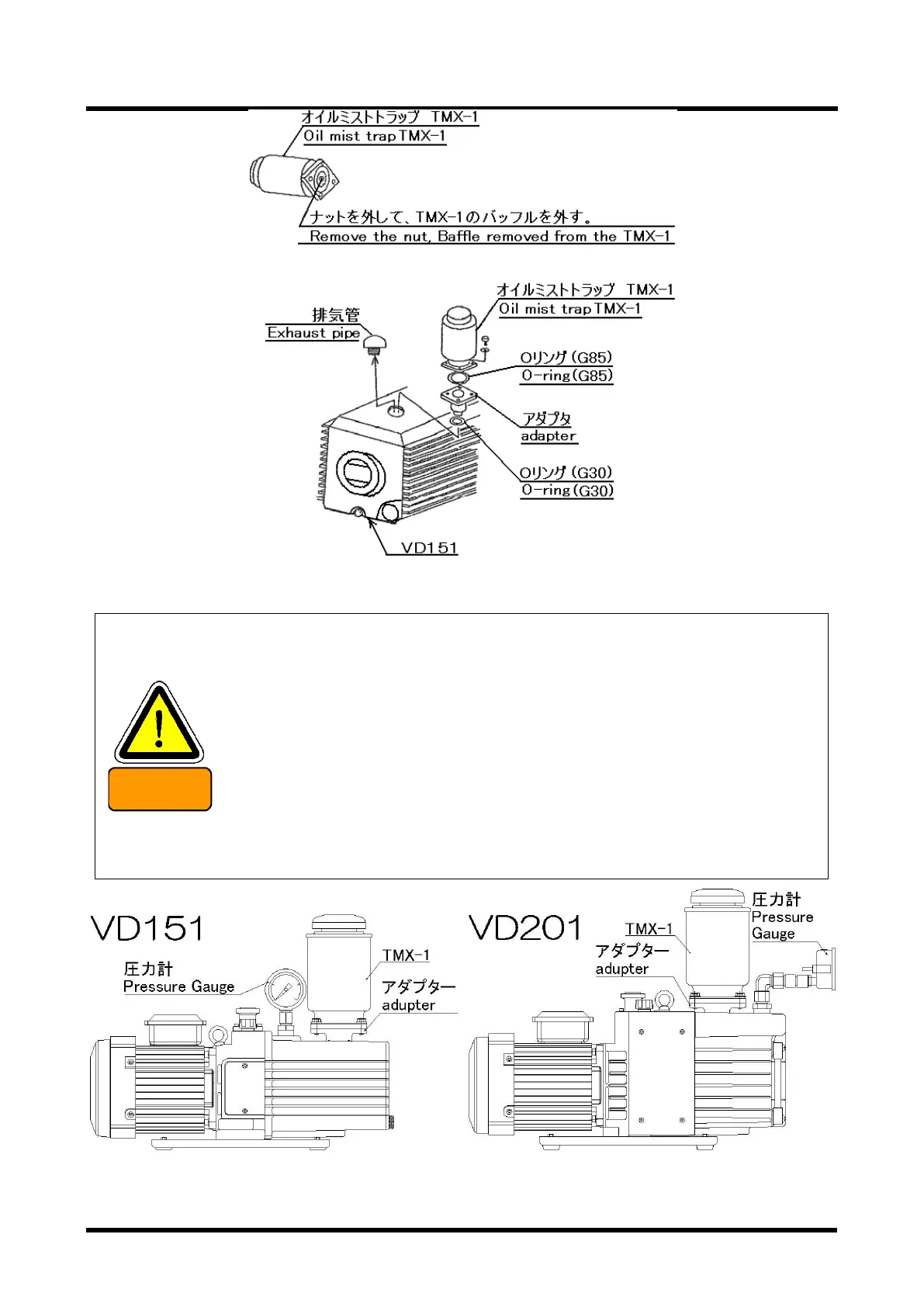

Fig. 8 To use Oil mist trap “Model TMX-1” for “VD151 or VD201”
WARNING
Limit value of the pressure inside the Pump is 0.03MPaG (0.3kg/cm
(Gauge pressure). If the pressure is raised, oil mist trap please
exchange.
We recommend you to install a Pressure monitor.
To use the Oil mist trap, be cautious not to have clog of the filter in the
trap. Too much clog would prevent the exhaust gas from passing
through the filter, raise the pressure inside the Pump unit (include the oil
mist trap) and might result in breaking it.
Fig. 9 When having mounted oil mist trap and adapter
To Next Page
