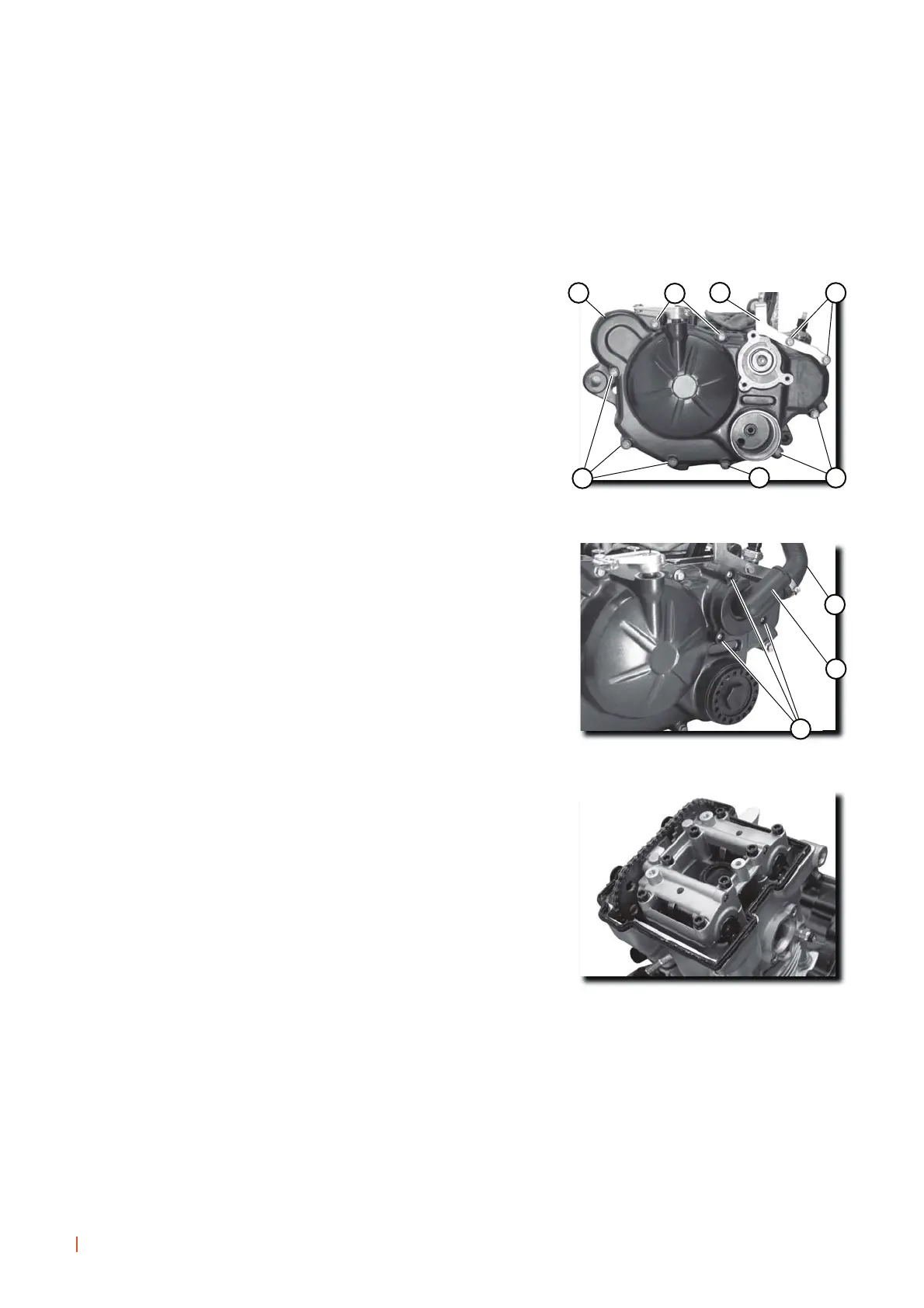

- The clutch cover (7).
- The clutch cable support (8).
- The 10 clutch cover bolts (9).
The clutch cover bolts:
1,1-1,3 kgf.m (11-13 N.m)
N.B.:
TO HELP THE COVER TO FIT, THE WATER PUMP SHOULD
BE TURNED UNTIL THE 2 GEARS COINCIDE.
Fit:
- The water pump cover (10) and the 3 bolts (11).
- The coolant pipe (12).
The water pump cover bolts.
0,5-0,6 kgf.m (5-6 N.m)
Fit:
- The camshaft (see chapter).
9
9
7
9 9
9
8
12
10
11
