UT521 USERS MANUAL
12

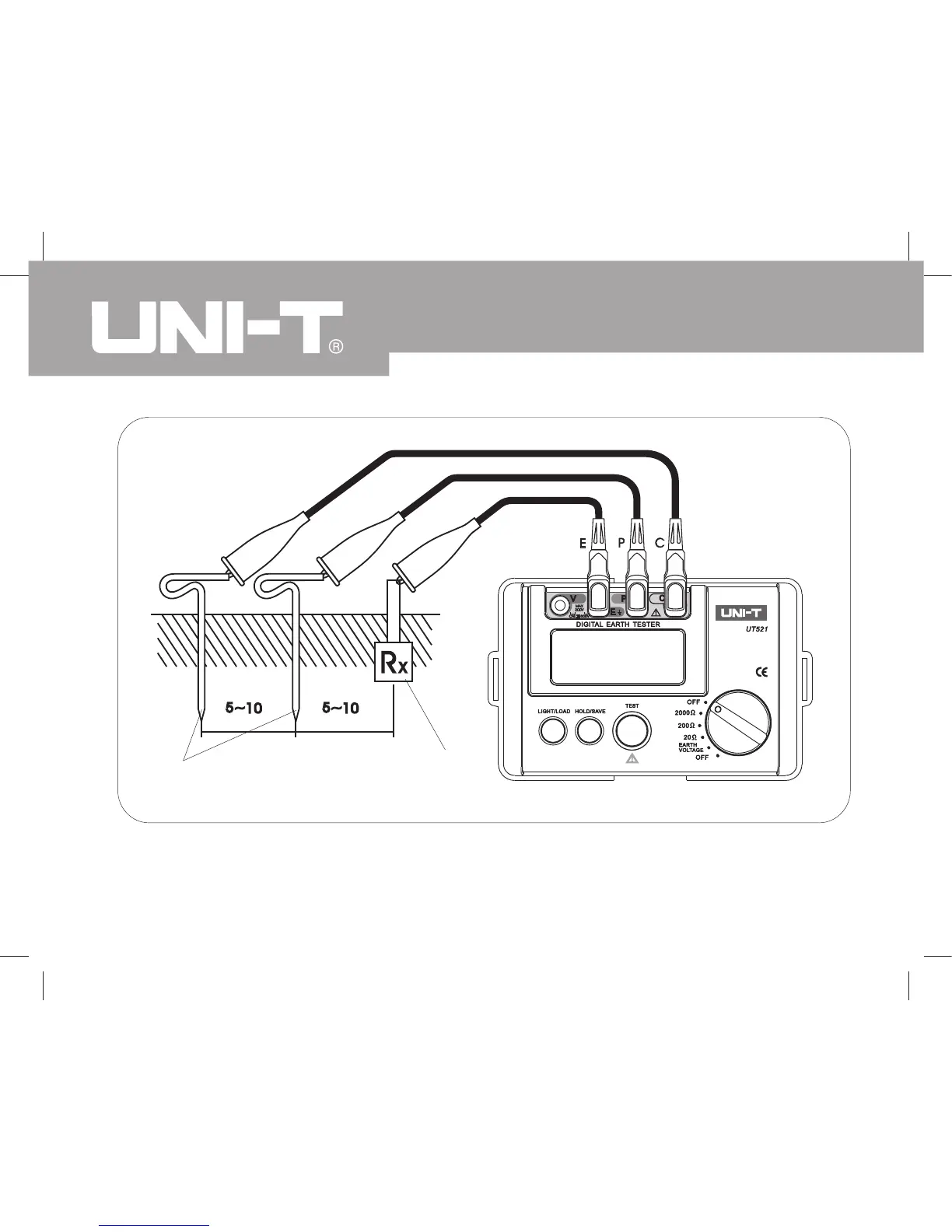

figure2
C: auxiliary electrode P: potential electrode E: earth electrode
Auxiliary
Earth Spikes
Earthed Electrode
Under Test
Red
Yellow
Green
m m
