Model UT58D: OPERATING MANUAL
Measurement Operation(1)

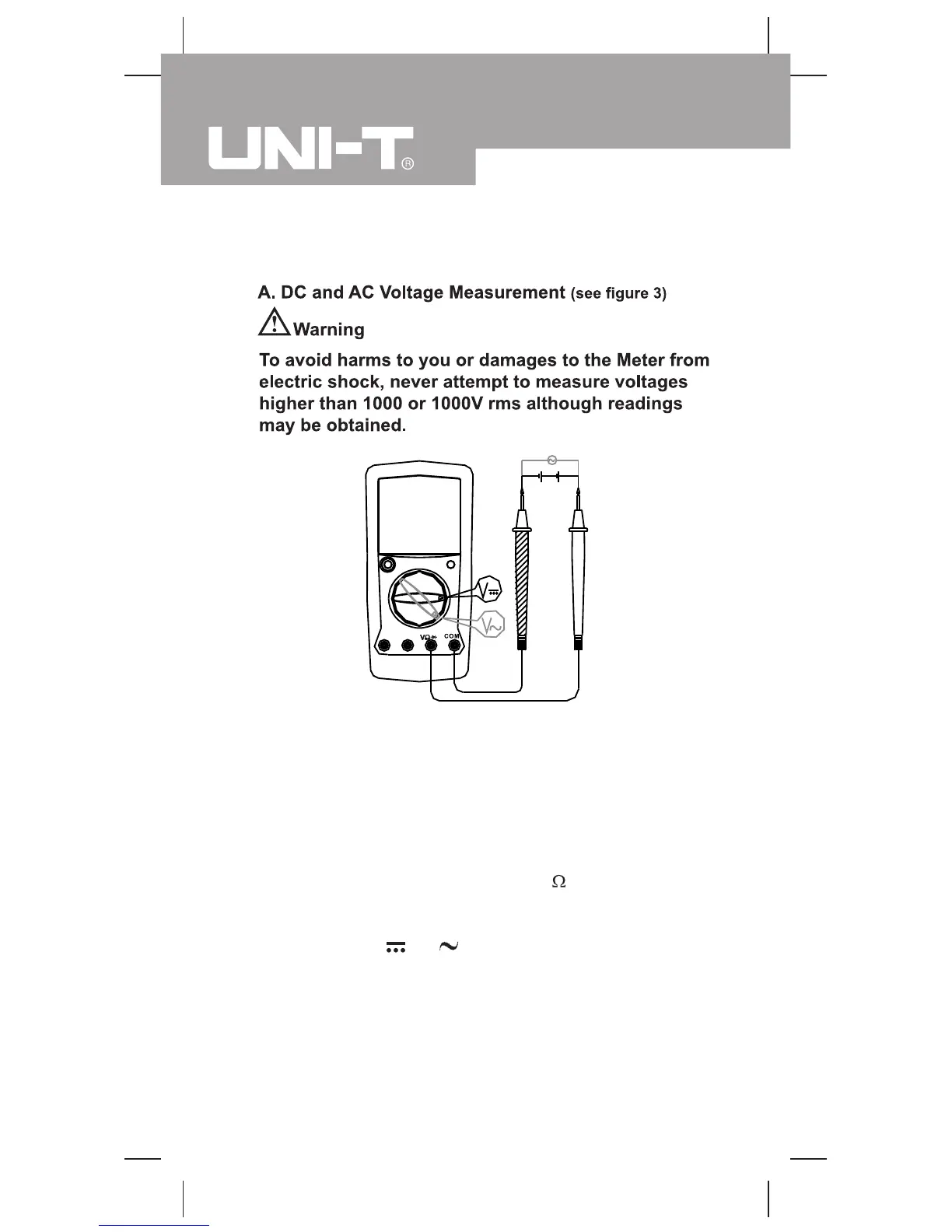

( figure 3)
Black Red
The DC Voltage ranges are: 200mV, 20V, 200V and 1000V.
The AC Voltage ranges are: 2V, 200V and 1000V
To measure DC Voltage, connect the Meter as follows:
1. Insert the red test lead into theV input terminal
and the black test lead into the COM input terminal.
2. Set the rotary switch to an appropriate measurement
position in V or V range.
3. Connect the test leads parallel across with the object
to be measured.
The measured value shows on the display.

UNI-T UT58D Specifications

General

Data hold	Yes
Product type	Digital multimeter
AC current range	0.002 - 20 A
AC voltage range	2 - 1000 V
DC voltage range	0.2 - 1000 V
Capacitance range	20 - 100000 nF
Basic accuracy (DC current)	±(0.8%+1)
Basic accuracy (DC voltage)	±(0.5%+1)
Basic accuracy (capacitance)	±(2.5%+5)
Dimensions (WxDxH)	88 x 39 x 179 mm
Battery voltage	9 V

Weight and Dimensions

Weight	350 g
