1.2 Front Panel

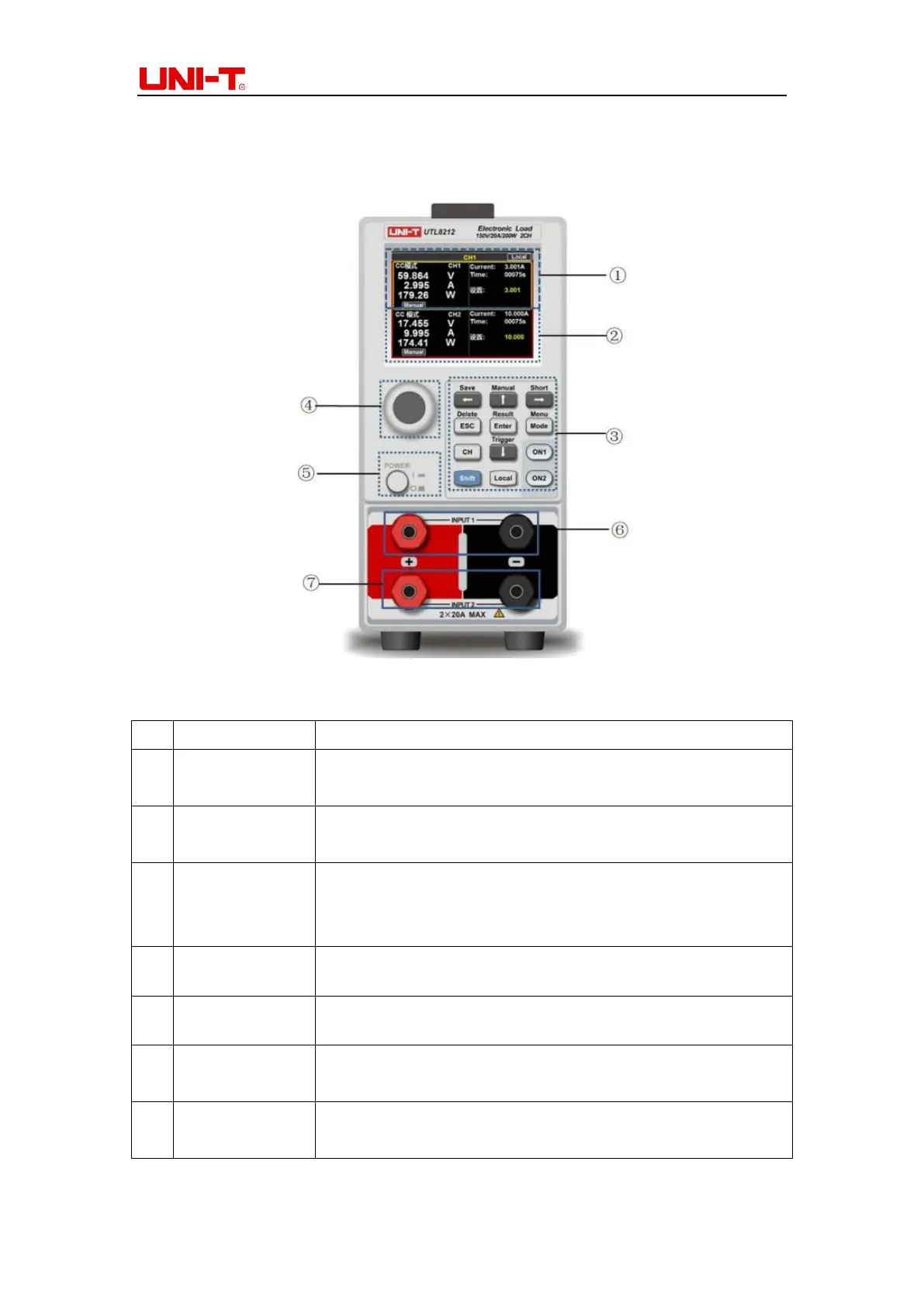

Figure 1-2 UTL8212 Front Panel (Dual Channel)
No.
Item
Description
①
LCD display
Channel 1
It is used to display the operating status, measurement
parameters and mode of channel 1.
②
LCD display
Channel 2
It is used to display the operating status, measurement
parameters and mode of channel 2.
③
Buttons
They are used to select test modes (CC, CV, CR, CP and more);
In other interfaces, follow the on-screen instructions to perform
specific operating functions
④
Pulse knob
It is used to adjust the parameters or move cursor in the menu.
⑤
Power button
Press it to power on/off.
⑥
Channel 1
Input terminals
They are used to connect power supply. Please do not inversely
connect to prevent damage.
⑦
Channel 2
Input terminals
They are used to connect power supply. Please do not inversely
connect to prevent damage.
