3. To reinstall, perform the above steps in reverse.
Removing the keyboard deck
The following procedure describes the removal and replacement of the digital IF board.
• To prevent electrostatic damage to components, wear a properly grounded antistatic wrist and foot
strap during installation, and use an antistatic mat in a tested antistatic environment.
• Remove the rear cover.
• Remove the RF board
• Removing the digital IF board
• Remove the cover
Steps:

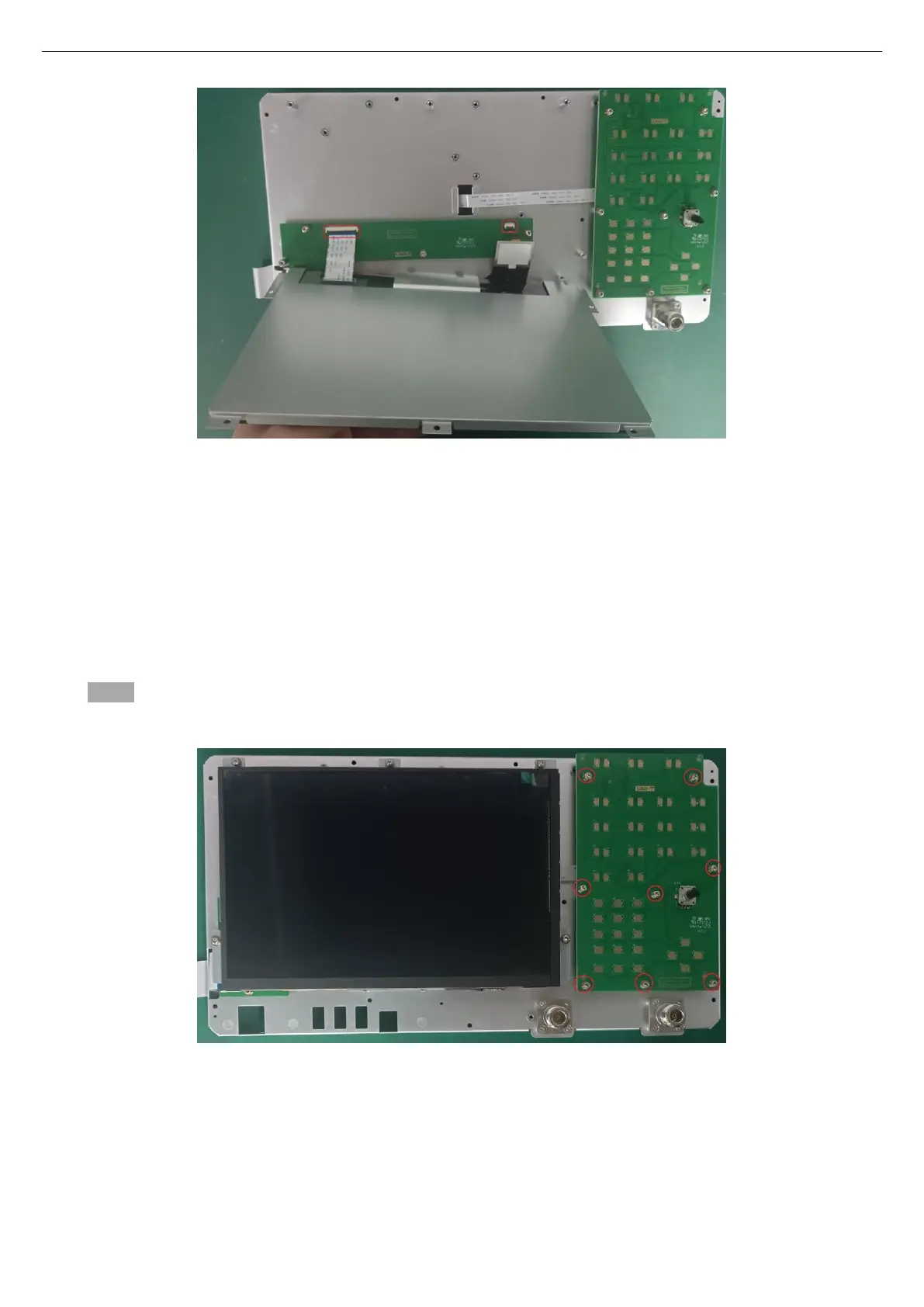

1. Use a T10 Torque screwdriver to remove the 8 screws that fix the display, as shown in the figure below:
3、 To reinstall, reverse the above step
