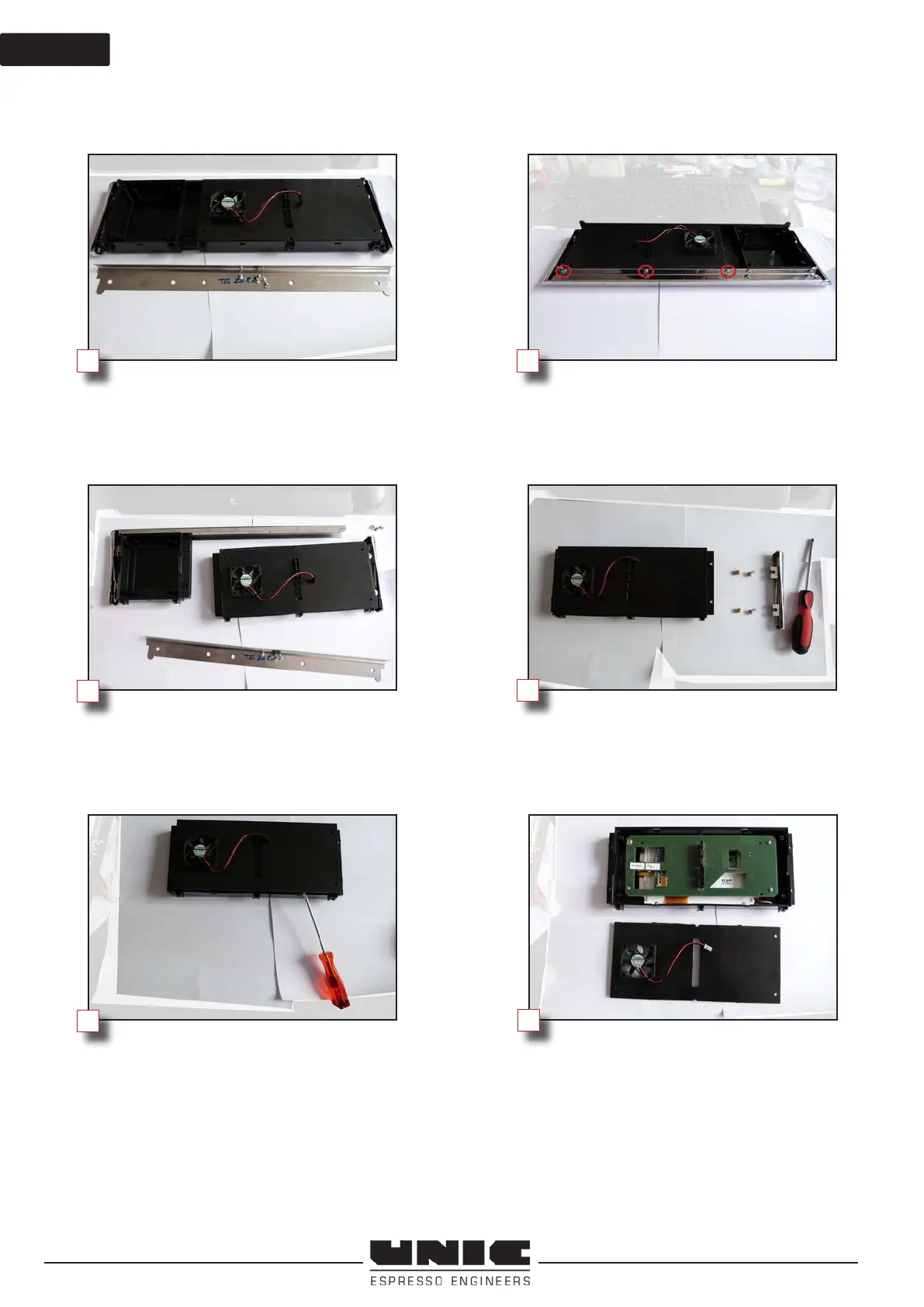

Remove the underneath of the grille.
Unscrew the 3 screws from the top of the
grille
Detach the screen.
Unscrew the 2 Phillips screws and then
remove the ear and recover the screws
and the brass pins.
Remove the rear cover using a
screwdriver in the notches.
Installing the new screen:
Replace the cover with the fan on the new screen, then proceed to assemble by repeating
all previous operations in the reverse order.
