72
♦

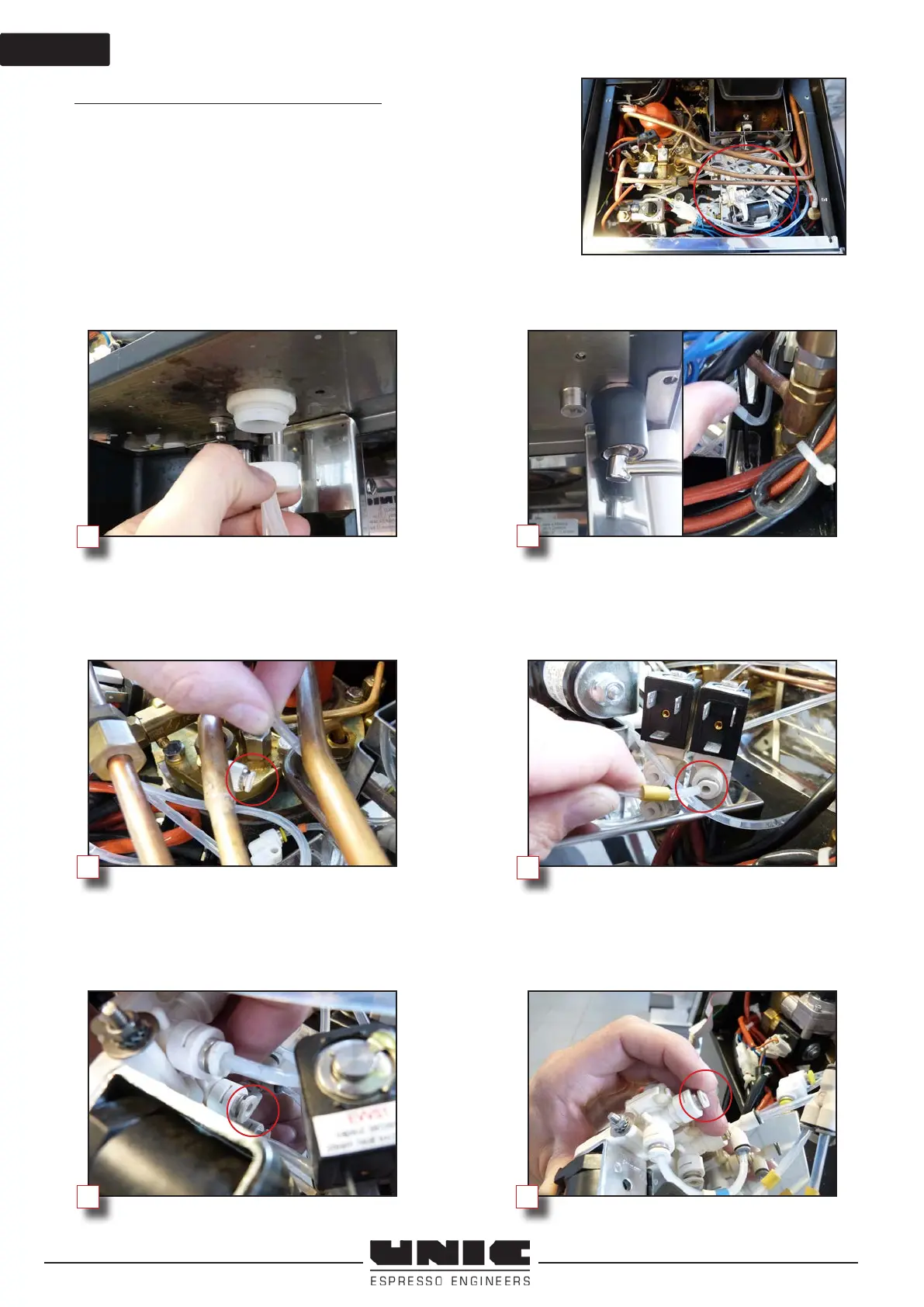

Removing the TG1301 sub-assembly
Note: Perform this operation after having removed the grille from
the machine (see «Replacement of the TFT screen» part, p:62).
Unscrew the milk outlet on the nozzle.
Disconnect the boiler steam tube
Unscrew the coffee grounds drawer stop,
which also serves to hold it (tool: 3mm
Allen key)
Disconnect the steam outlet tube from
the EVRP1
Disconnect the outlet tube from the EVNR
(3-way solenoid valve)
Disconnect the milk tube from the EVLCF
1
2
3
4
5
6
71
73
Table of Contents
Default Chapter
3
Table of Contents
3
1- Safety Instructions
6
2- Standard Versions
7
Tango solo St
7
Tango Duo St
8
Module Frigo St
9
3 Machine Installation
10
3- Machine Installation
10
Preparation of the Machine
10
Unpacking the Machine
10
Installing the Machine
10
Fitting High Feet
10
Hydraulic Connections
10
Duo
10
Solo
11
Electrical Connections
11
Connecting the St Refrigerator Module to the Machine
13
Electrical Part
13
Hydraulic Part - Milk Pump
13
LC Hydraulic Part
13
Installing the Bins
14
4- Commissioning
15
Switching on the Machine and Turning on the Heating
15
Module St
15
Temperature Display
15
5- Interface
16
Main Screen
16
Quick Access Screen / Code
16
Miscellaneous Icons
18
Day/Night Programming
18
Counters
19
Settings
20
Other Settings
21
Cleaning
22
Products
23
Maintenance
24
6- Settings
25
Language
25
Language Selection
25
Keyboard Selection
25
Personalization
25
Wallpaper
25
LED Setting
25
Access Level
26
CIM
26
Backup
27
Pre-Infusion and Sti
27
Sti
27
Tamping Level
27
Grinder Calibration
28
Cleaning Settings
28
Computer Connection
29
Keyboard Menu Creation
29
Product Management
30
Adding a Drink
30
PP' Programmed Parameters
30
PS' Specific Program
31
Hot Water & Steam
31
7- Cleaning & Maintenance
32
Cleaning External Outlets / Housing
32
Coffee Outlet
32
Cappuccino Outlet
32
Steam Wand
32
Drip Tray
32
Housing
32
Cleaning Cycles
33
Coffee Cleaning
33
Milk Cleaning (with Pump)
34
Cappuccino Cleaning (with LC)
35
8- Maintenance & Troubleshooting
36
Description of Cycles
36
Group Cycles
36
Groups Cycles
38
Cappuccino Cycle
40
Milk System Cycle
41
Component Test
42
Cooling Machine
43
History of Errors
43
Softener
43
Descaling
43
How to Ugrade Cpu and Display
44
List of Wirings
47
Electronic Cards
48
Turntable Set
48
Static Relays
49
Connectors
50
Fuses
51
LED Identification on Board
52
Active Component
56
List of Error Codes
58
Electric Wirings
60
Electric Wirings 5/12V
63
Electric Wiring 24V
64
Tft Screen Replacement
65
Milk System
67
Subassembly TG1300
69
Removing the TG1300 Sub-Assembly
70
Subassembly TG1301
71
Removing the TG1301 Sub-Assembly
72
Troubleshooting
74
Emergency List
76
