Unical KON R 28 - Positioning the Boiler

16
When choosing the place of the installation of the
appliance, follow the safety instructions below:
- Place the appliance in rooms protected from frost.
- Avoid installation in rooms with a corrosive or very
dusty atmosphere.
- The appliance must only be installed on a vertical
and solid wall which can support its weight.
- The wall must not be made of ammable material.
KON R/C 18 - R/C 24 - R/C 28 - R/C 35
Since the temperature of the wall on which the boil-
er is installed and the temperature of the coaxial
exhaust pipe do not exceed, in normal operating
conditions, a room temperature beyond 60 K, it is
not necessary to observe the minimum distances
from ammable walls.
For boilers with double intake and exhaust pipes, in
the event of crossing ammable walls, insert insula-
tion between the wall and the ue gas exhaust pipe.
.
(200)
(200)

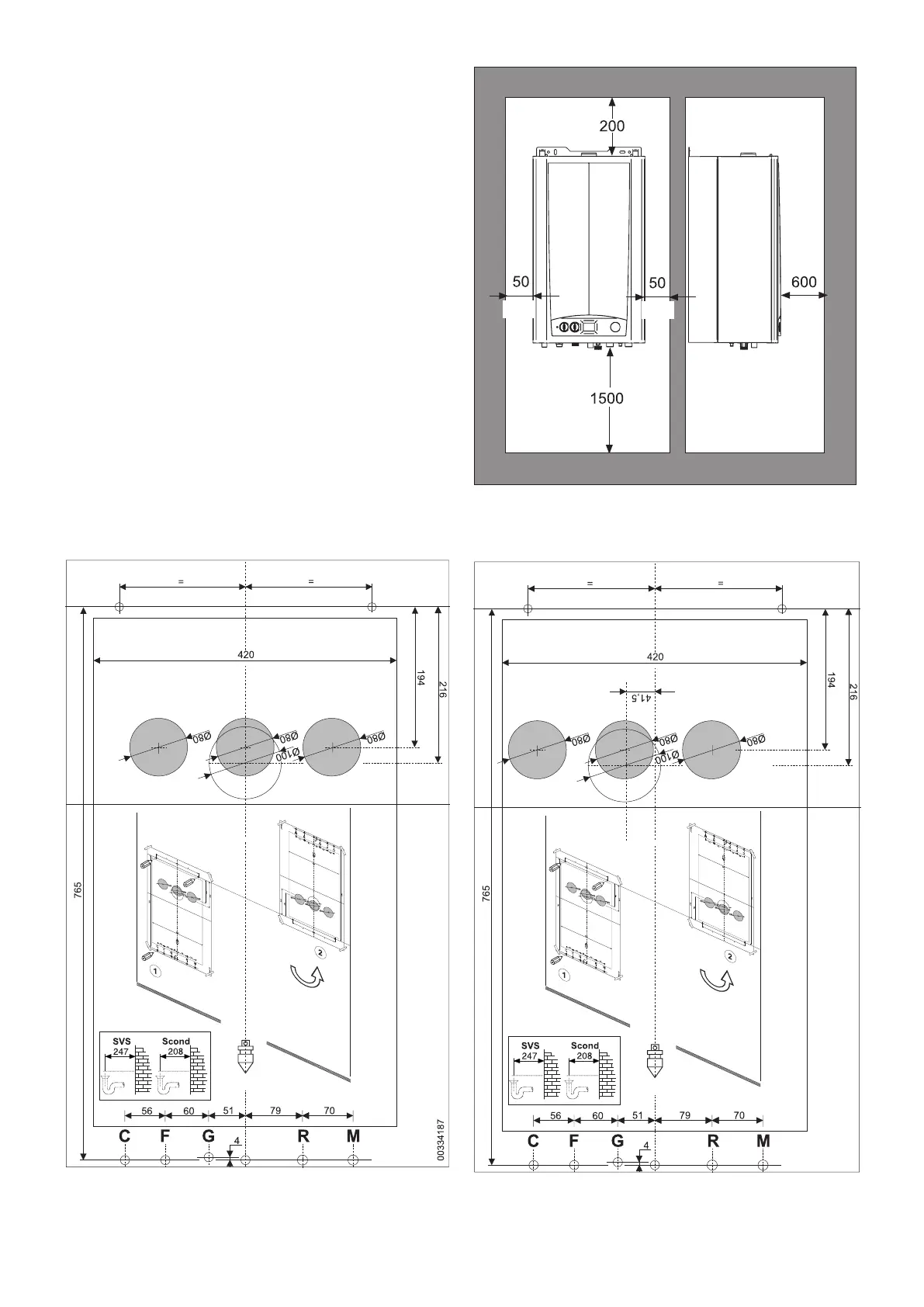

3.5 - POSITIONING THE BOILER
Clearance
KON 18-24
KON 28-35
