Unical KON R 28 - Wiring Diagram

32

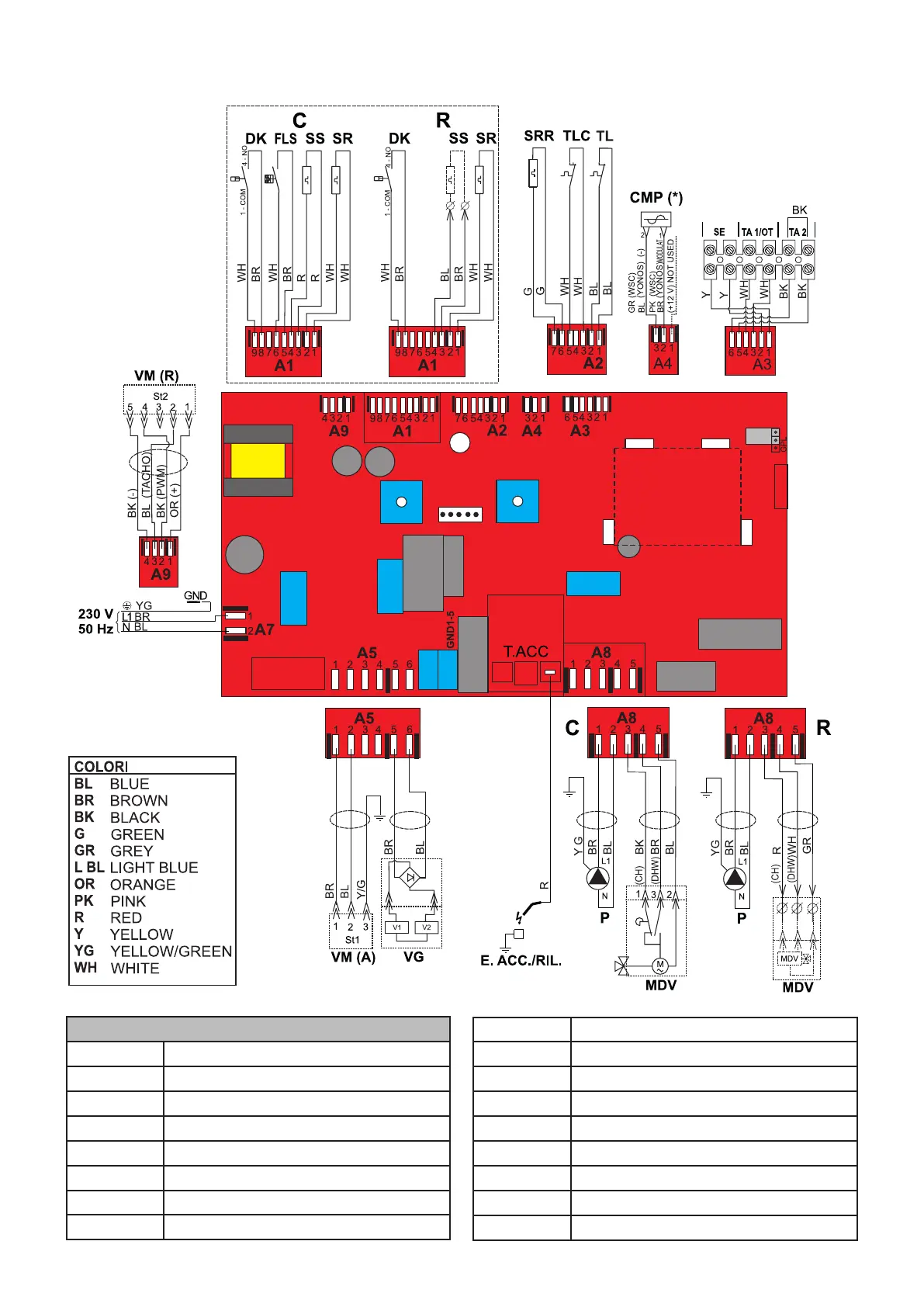

4.5 - WIRING DIAGRAM
Practical connection board
Kon
KEY
A1.....A9 Services connectors
CMP Modulatingpumpcontrol
DK Waterdeciencysafetypressureswitch
E.ACC./RIL Ignition/detection electrode
FLS Domestichotwaterrequestowswitch
MVD Diverter valve motor
P Pump
SR Flowheatingsensor
SRR Returnheatingsensor
SS
Domestichotwaterprobe(Pred.forRmodels)
TL Limitthermostat
TLC Fluegascollectorlimitthermostat
VG Gas valve
VM Modulatingfan
SE Externalprobeconnectionterminals
TA1 / OT ModulatingTAconnectionterminals
TA2 On/off TA connection terminals
