8

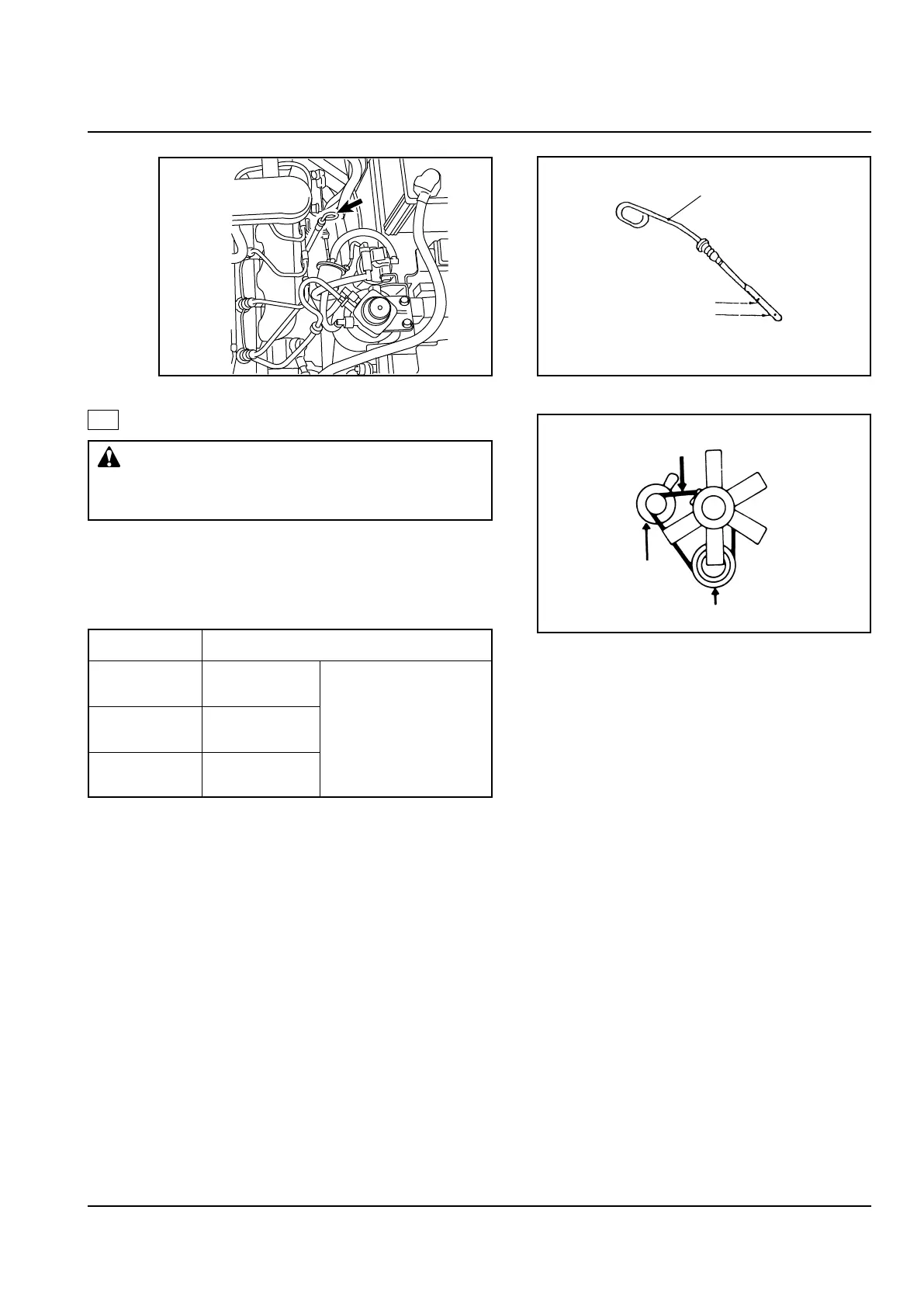

FAN BELT
CAUTION
Make sure the engine is shut down before
checking the fan belt for tension.
Check the belt tension (deflection) by pressing the
middle part on each span (areas indicated by arrows).
Check also for cracks or damage of the belt. If defective,
adjust or replace it with a new one.
Engine model Belt deection
K21
12 – 14 mm
(0.5 – 0.6 in.)
When a pressure of 98 N
(10 kgf) (22 lbs) is applied.
C240
10 – 15 mm
(0.4 – 0.6 in.)
V2403
7 – 9 mm
(0.3 – 0.4 in.)
Push
GENERATOR
PULLEY
CRANK PULLEY
K21
DIPSTICK
High Level
Low Level
V2403
