Chapter 2 Installation and Wiring
7

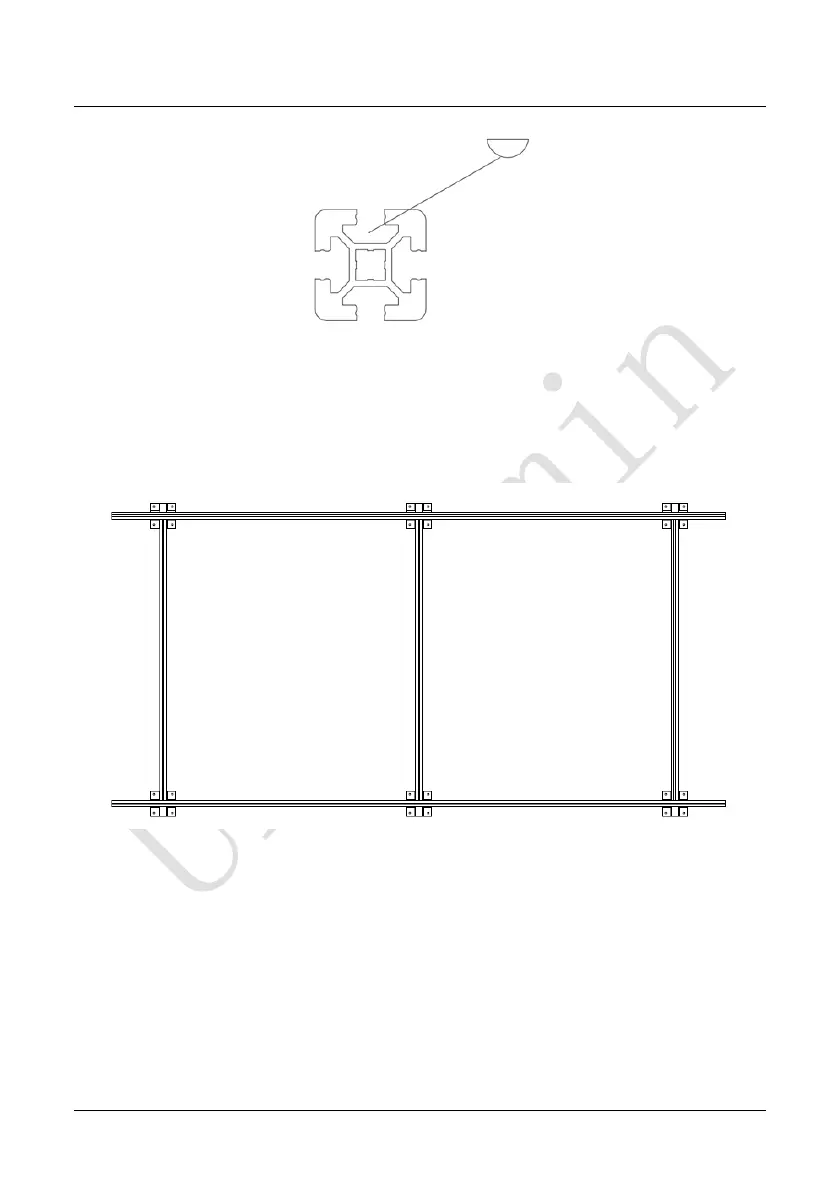

1) Insert the nut piece into the aluminium profile.
Fig 2-2 Installation Diagram 1
2) Mark and drill holes on the wall based on the installation drawing. Fasten the
embedded plate onto the wall and install the aluminium profile onto the plate.
Check the installed aluminium profile to ensure that its levelness is within ±1 mm.
Fig 2-3 Installation Diagram 2
