ULA
PLANNING AND
ASSEMBLY
INSTALLATION MANUAL
PAGE
APPENDIX B
23

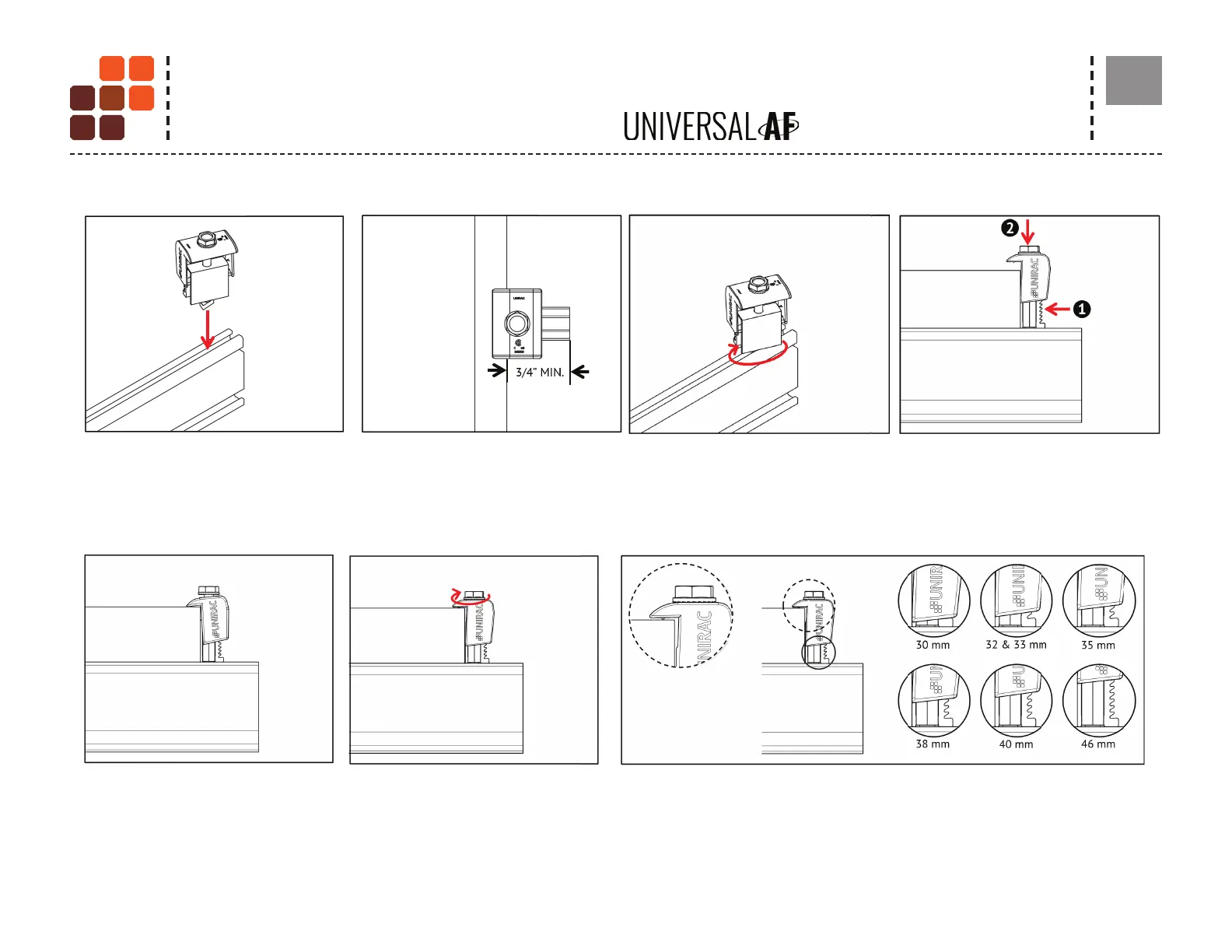

1. Position clamp to align T-bolt with
rail slot. Lower clamp and Insert
T-bolt into rail slot.
5. When the cap contacts the module
frame, release and it will re-engage
to the clamp base.
6. Tighten bolt.
Torque bolt to 15 ft-lbs.
7. Con rm clamp is engaged in correct module height position and that the top
of the cap is sitting level with the module frame.
NOTE: When installing 46mm modules, loosen bolt by 1 turn before
positioning clamp against module frame. Do not force clamp onto module
frame as this may damage the bonding pin.
2. Rotate clamp clockwise 2/3 of a
turnto engage T-bolt inside rail slot.
3. Place module at least 3/4” from
end of rail and position clamp
against module frame.
4. While applying pressure to hold
the clamp against the module, push
down on the module side of the
clamp cap.
INSTALLING THE ENDCLAMP
