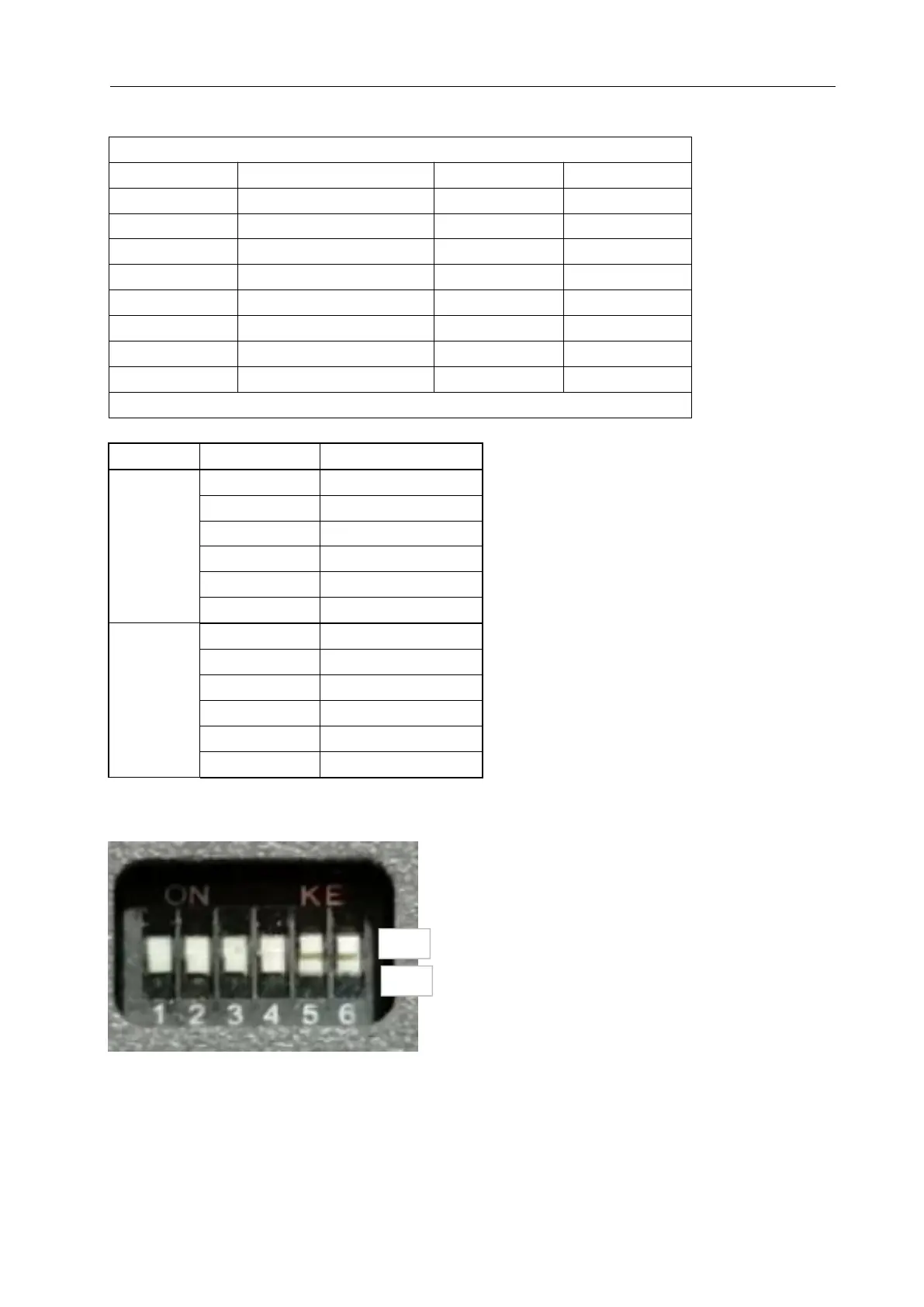

6.2 16 Road Extension Board IO Chart
Output
：
J3
、
J4
、
J5
、
J6
、
J7
OUTPUT
Content
OUTPUT
Content
OUT1
Bonus light 1
OUT9
OUT2
Bonus light 2
OUT10
OUT3
Bonus light 3
OUT11
OUT4
Bonus light 4
OUT12
OUT5
Bonus light 5
OUT13
OUT6
Bonus light 6
OUT14
OUT7
OUT15
OUT8
OUT16
The smallest font size (6) indicates that it is reserved for temporary use
Item
Content
Content
J1
(INPUT)
12V
12V
GND
GND
LAT
U3 signal
CLK
U3 signal
DATA
U3 signal
GND
GND
J8
(OUTPUT)
12V
12V
GND
GND
LAT
LAT
CLK
CLK
DATA
DATA
GND
GND
Big ball reader Dial SW:
1、2、3、4 is OFF
5、6 is ON
ON
OFF
