Unitech MS100 User Manual

37MS100 Manual

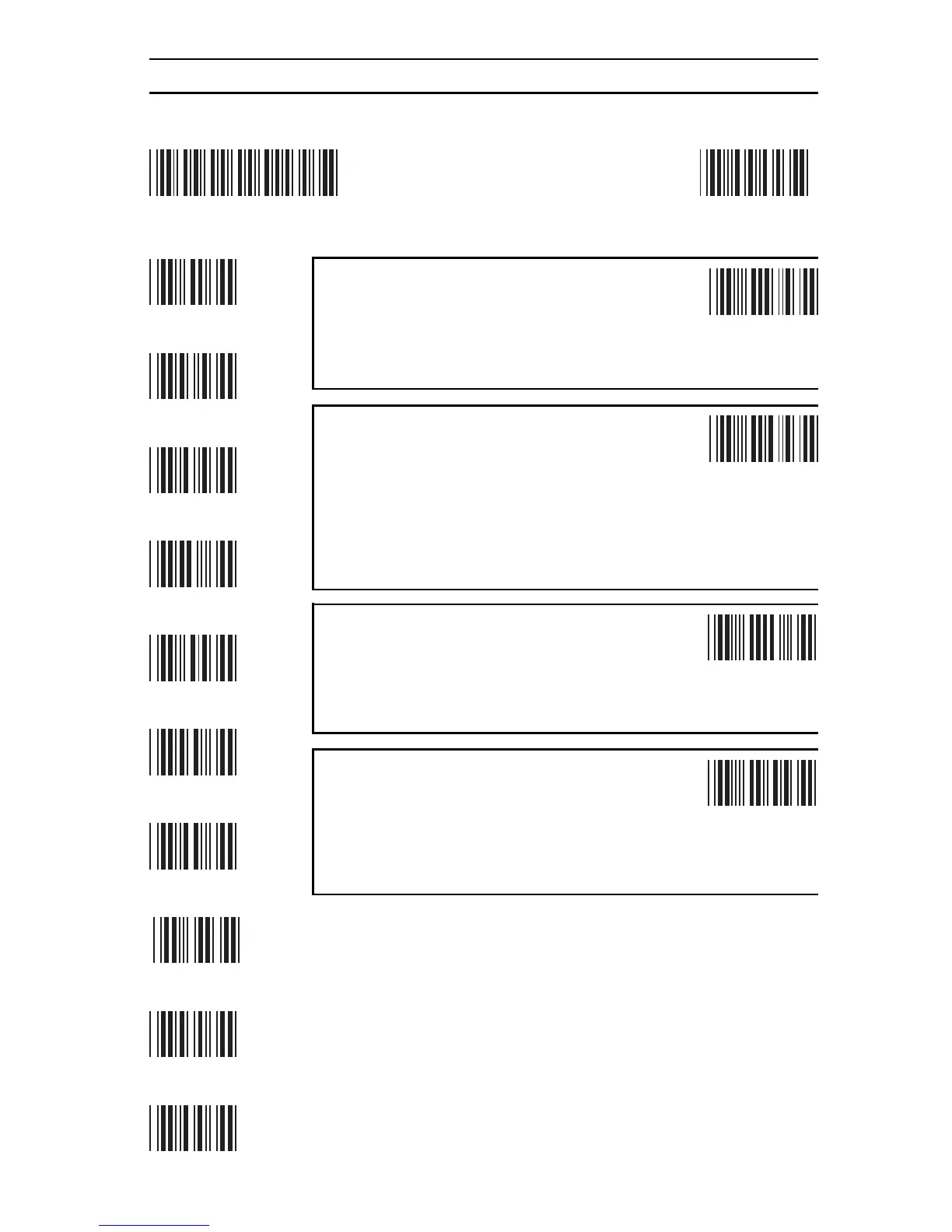

Symbologies:
Code 128 / MSI / Code 93 / Code 11 / Codabar / Label Code
0
1
2
3
4
5
6
7
8
9
Group Default Enter Group 7
G1
0/1 - Disable / Enable
1-64 - Min. Length 1 / Max. Length 64
Code 128:
(See next page for Min./Max. Length proce-
dure)
G2
MSI / Plessey Code:
(See next page for Min./Max. length procedure)
1~16 - Min Length 1 / Max Length 16
6 - Check Digit Single Module 10
5 - Check Digit Module 11 plus 10
4 - Check Digit Double Module 10
2/3 - Check Digit Send / No Send
0/1 - Disable / Enable
0/1 — Disable/Enable
2/3 — One / Two Check Digit
4/5 — Check Send / No Send
1-48 — Min Length 1 / Max Length 48
Code 11: (Special)
(See next page for Min./Max. Length procedure)
G4
0/1 — Disable/Enable
1-48 — Min Length 1 / Max Length 48
Code 93:
(See next page for Min./Max. Length
procedure)
G3

Unitech MS100 Specifications

General

Wavelength	660 nm
Sensor type	Photo diode
Tilt reading angle	45 - 90 °
Dimensions (WxDxH)	140 x 30 x 23 mm
Cable length	1.80 m
Standard interfaces	RS-232
Power consumption	800 mA
Power requirements	5V DC
Product color	Black, Blue
Housing material	Plastic
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	76.5 g
