Unitech MS350 - Pin Assignments; AS Series 10-Pin RJ-45 Connector

42
Pin Assignments
10-pin

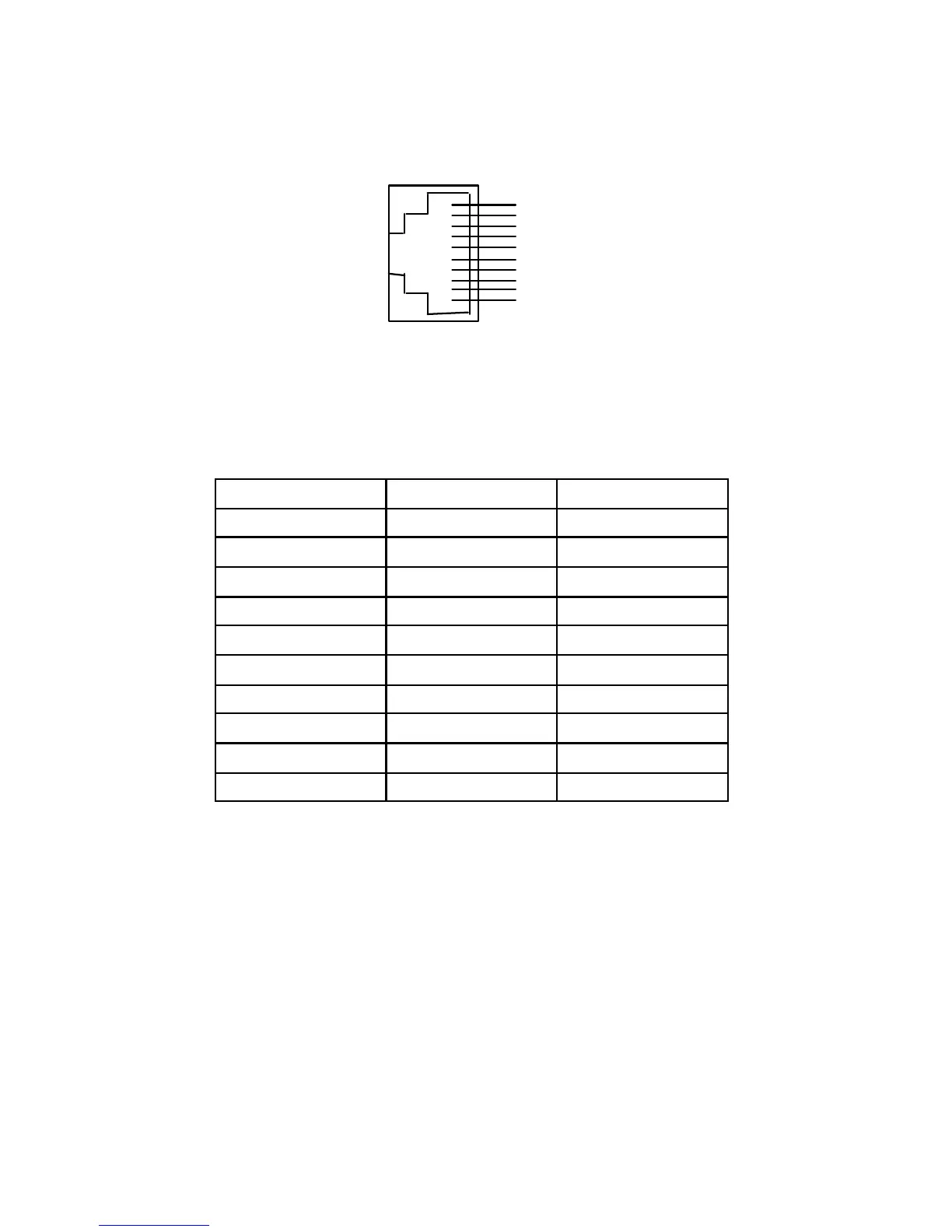

AS Series 10-pin RJ-45 Connector
Pin RS-232 Keyboard
1 I/F I/F
2 NA NC
3 TXD NC
4 NC CLK / PC
5 GND DATA / PC
6 CTS DATA / KB
7 RXD NC
8 RTS CLK / KB
9 GND GND
10 NC GND
1
2
4
3
5
6
7
8
9
10
